Selecting the program
Press MODE after treatment mode is set.
1. To choose Program (P1~P8), use Up + (to increase) or the button Down – (to
decrease).

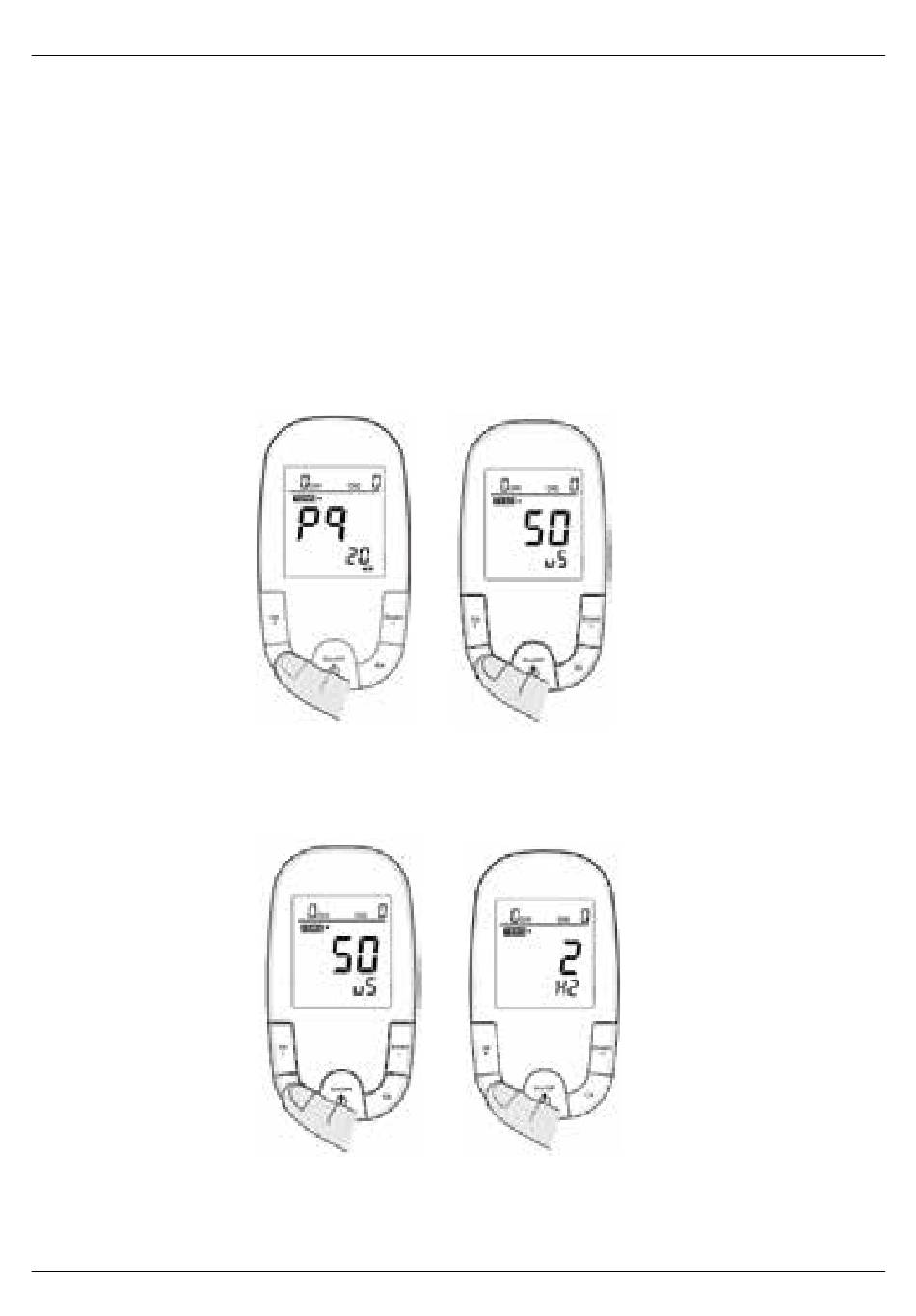

2. Program P9, it is self –programmable mode. To set up desirable pulse width
between 50~260uS and frequency at 2~60Hz (for TENS) and 7~70Hz (for EMS) :
2.1. Press Mode button, the preset (default) Pulse Width is then flashing.
Press the button Up + (to increase) or the button Down – (to decrease) for choice
of the selected Pulse Width .
➠ ➠
2.2. Press Mode button again, the preset (default) Pulse Rate is then flashing.
Press the button Up + (to increase) or the button Down – (to decrease) for
choice of the selected Pulse frequency.
➠ ➠
3. Press MODE again to save your selection. The treatment program you selected
will appear on the display the next time you turn the device on.
