Prorelax TENS + EMS SUPER DUO PLUS Operating Instructions Manual page 147

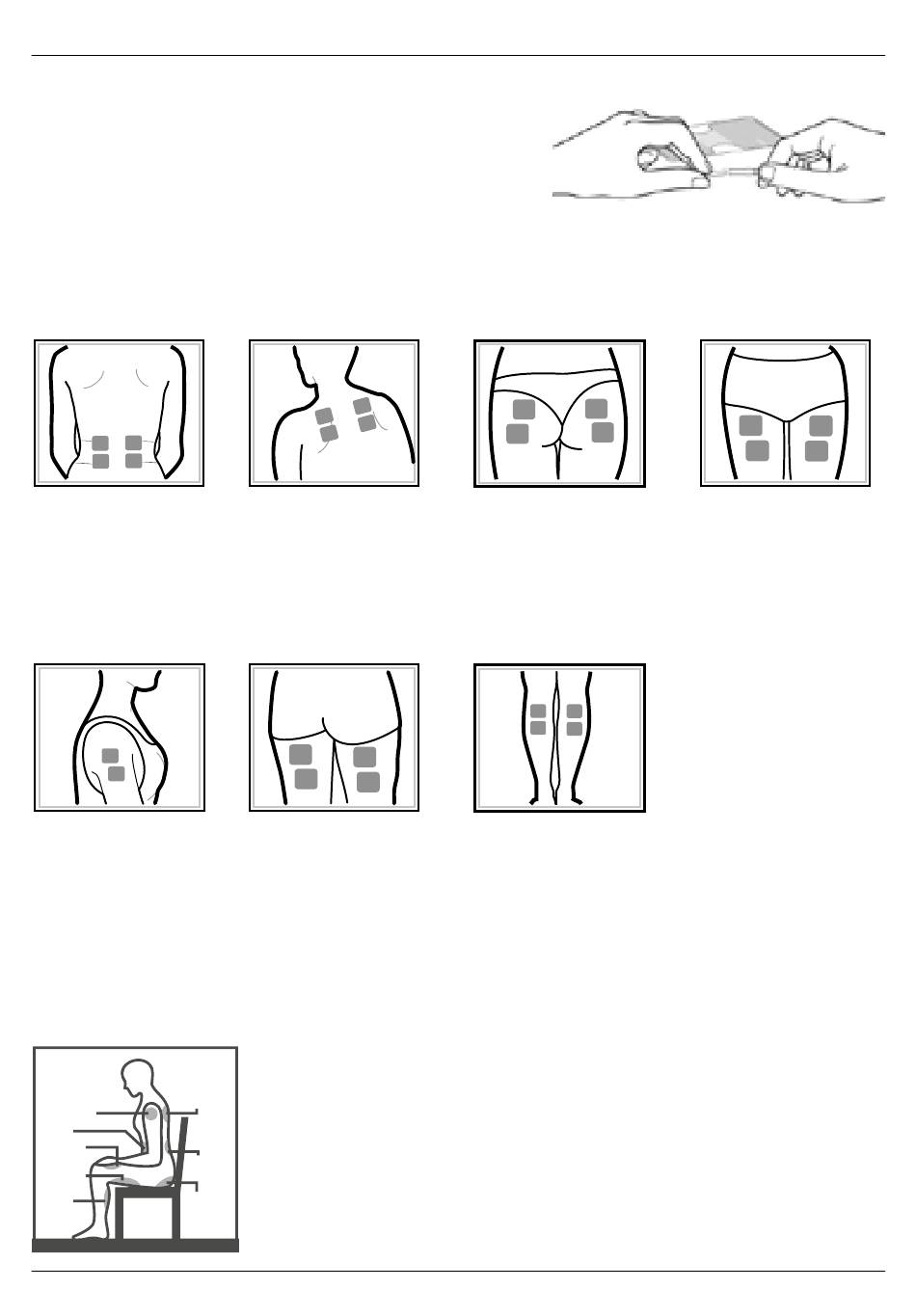

Placement of the Electrode Pads
for TENS (Treatment of Pain)
Note:
You may need help placing the Electrode Pads onto
hard to reach areas (lower & upper back)
CH1
CH2
LOWER BACK
Place a pair of pads
horizontally on each
side of your back in
the lower back area.
CH1
or
CH2
SHOULDER
Place one half of the
pad on the top part
of you shoulder and
the other half on
the side.
Upper
Back
Shoulder
ABS
Front of
Thighs
Low
Back of
Back
Thighs
Buttock
Calf
Muscle
Step by step operation guide for training
CH2
CH1
UPPER BACK
Place a pair of pads
horizontally on each
side of your back
in the upper back
area.
CH2
CH1
BACK OF THIGHS
Place a pair of pads
horizontally on each
calf muscle. Do not
place the pads too low
on the leg, as this can
lead to unpleasant
contractions.
Note:
When stimulating the muscles of the arms or legs bear in mind that the
1.
muscles contraction may cause involuntary limb movement, which
could cause injury to you or others. Always ensure the limb is secured
to prevent movement
Do not turn the unit on until all electrodes and lead wires are properly
2.
attached
CH1
BUTTOCK
Place the pads
horizontally on the
buttocks, halfway
between the centre
line and the side of
your body.
CH1 CH2
CALF MUSCLES
Place a pair of pads
horizontally on each
calf muscle. Do not
place the pads too low
on the leg, as this
lead to unpleasant
contractions.
15
CH2
CH1
FRONT THIGHS
Place the pads on
the buttocks
horizontal, halfway
between the
center line and the
side of your body.
CH2
