Summary of Contents for Taurus TF-IFP1605

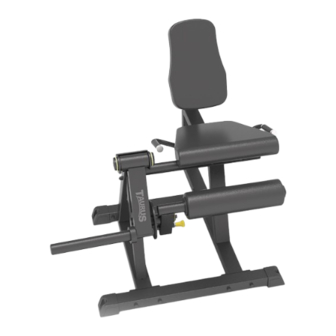

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 90 Min. 64 kg L 125 | W 118 | H 100 FSTFIFP1605.01.01 Art. No. TF-IFP1605 Taurus Seated Leg Extension IFP...
- Page 2 Seated Leg Extension...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Seated Leg Extension...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Article weight (gross, incl. packaging) approx.: 71 kg Article weight (net, excl. packaging) approx.: 63.4 kg Packaging dimensions (L x W x H) approx.: 117 cm x 82.5 cm x 33 cm Set-up dimensions (L x W x H) approx.: 124.6 cm x 117.3 cm x 99.5 cm Maximum user weight: 150 kg... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 12 Item No. Description Quantity Front Ground Sticking Pipe ASSY Main Frame ASSY Rear Ground Sticking Frame ASSY Support Frame ASSY Swing Frame ASSY Cross Connection Frame ASSY Left Handle Frame ASSY Back Pad Frame ASSY Right Handle Frame ASSY Foam Frame ASSY Back Pad Hardware Manual...
-
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 14 Step 1: Assembly of the Main Frame Parts NOTICE Do not tighten bolts and nuts completely yet. Leave room for adjustments. Attach the main frame (2) and the support frame (4) to the front ground sticking pipe (1) with a total of four M10*100 bolts (19), eight Ø11*Ø20*2 fl at washers (26) and four M10 lock nuts (28).
- Page 15 Step 2: Assembly of the Back Pad Frame and Handle Frames Attach the back pad frame (8) to the main frame (2) with one M10*30 bolt (22). Attach the left and right handle frames (7 & 9) to the main frame (2) with two M10*100 bolts (19), four Ø11*Ø20*2 fl at washers (26) and two M10 lock nuts (28).
- Page 16 Step 3: Assembly of the Swing Frame and Foam Frame Attach the swing frame (5) to the support frame (4) with one shaft (14), two Ø62*Ø10.5*3 big washers (17), two Ø62.5*5 circle rings (16), two Ø60 caps (15) and two M10*25 screws (24). Attach the foam frame (10) to the swing frame (5) with one M10*25 bolt (23), one Ø10 spring washer (27) and one Ø11*Ø38*2 fl at washer (25).
- Page 17 Step 4: Assembly of the Pads Attach the back pad (11) to the back pad frame (8) with two M10*30 bolts (22) and two Ø11*Ø20*2 fl at washers (26). Attach the seat pad (12) to the main frame (2) with two M10*80 bolts (20) and two Ø11*Ø20*2 fl at washers (26).
- Page 18 Adjustment and Exercise Instructions, Part 1 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the fl oor. Store unused weight plates on a weight rack. To load the weight horn, carefully grab one weight plate at a time with both hands.
- Page 19 Adjustment and Exercise Instructions, Part 2 Back Pad Adjustment The back pad should be adjusted so that you sit with your back fl at against the pad. To adjust the back pad, pull the adjustable support and adjust to your desired position. Release the pin and make sure the pin is fully engaged in the adjustment hole.
- Page 20 Back Pad Weight Horn Adjustable Support Weight Plate Foam Adjustable Support Pin Seated Leg Extension...
-
Page 21: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 22: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Safety can only be guaranteed if you check the equipment regularly for wear and damage. Replace damaged or worn components immediately. -
Page 23: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Screw connections Cushions... -
Page 24: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 25: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / multi gym Model Name: Seated Leg Extension IFP Article Number: TF-IFP1605... -
Page 26: Parts List
Parts List Overall Item No. Part no. Description Qty. IFP160501ASSY Front Ground Sticking Pipe ASSY IFP160502ASSY Main Frame ASSY IFP160503ASSY Rear Ground Sticking Frame ASSY IFP160504ASSY Support Frame ASSY IFP160505ASSY Swing Frame ASSY IFP160506ASSY Cross Connection Frame ASSY IFP160507ASSY Left Handle Frame ASSY IF930508ASSY Back Pad Frame ASSY IFP160509ASSY... - Page 27 Front Ground Sticking Pipe ASSY (1) Grade No. Part no. Description Qty. IFP16050100 Front Ground Sticking Pipe IFP12013300 Ground Plug GB17880.3M6*15DS17 Rivet Nut M6*15 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Main Frame ASSY (2) Grade No. Part no. Description Qty.
- Page 28 Swing Frame ASSY (5) Grade No. Part no. Description Qty. IFP16050500 Swing Frame IF93051500 Lining Board GB2766205-2ZC3 Deep Groove Ball Bearing Φ25*Φ52*15 IFP16053000 Weight Horn Sleeve IFP16053100 Plug Φ49 IFP16053200 Plug Φ42 HF985A1500 Bumper B10009900 Plug Φ50.8 GB819M6*10N19 Philips Countersunk Screw M6*10 Cross Connection Frame ASSY (6) Grade No.
- Page 29 Right Handle Frame ASSY (9) Grade No. Part no. Description Qty. IFP16050900 Right Handle Frame FE97031800 Grip STΦ31*Φ24*140 V39600 Aluminum Grip Cap Φ32 V39500 Aluminum Grip Ring Φ32 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 Foam Frame ASSY (10) Grade No. Part no. Description Qty.
-
Page 30: Exploded Drawing
Exploded Drawing Seated Leg Extension... -
Page 31: Main Frame Assy
Front Ground Sticking Pipe ASSY (1) Main Frame ASSY (2) Rear Ground Sticking Frame ASSY (3) Support Frame ASSY (4) 4-4 4-2 4-3... - Page 32 Swing Frame ASSY (5) 5-6 5-2 Cross Connection Frame ASSY (6) Left Handle Frame ASSY (7) Seated Leg Extension...
- Page 33 Back Pad Frame ASSY (8) Right Handle Frame ASSY (9) Foam Frame ASSY (10) 10-4 10-3 10-2 10-5 10-3 10-1...
-
Page 34: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 35 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 36: Contact
CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� �� �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.co.uk �� technik@fi tshop.de �� ��... - Page 37 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Fitshop is Europe’s largest specialist store for www.fi tshop.co.uk home fi tness equipment with currently over 70 www.fi tshop.de/blog stores and one of the world’s most renowned online mail order companies for fi tness equipment.
- Page 38 Notes Seated Leg Extension...
- Page 40 Taurus Pro Seated Leg Extension...
