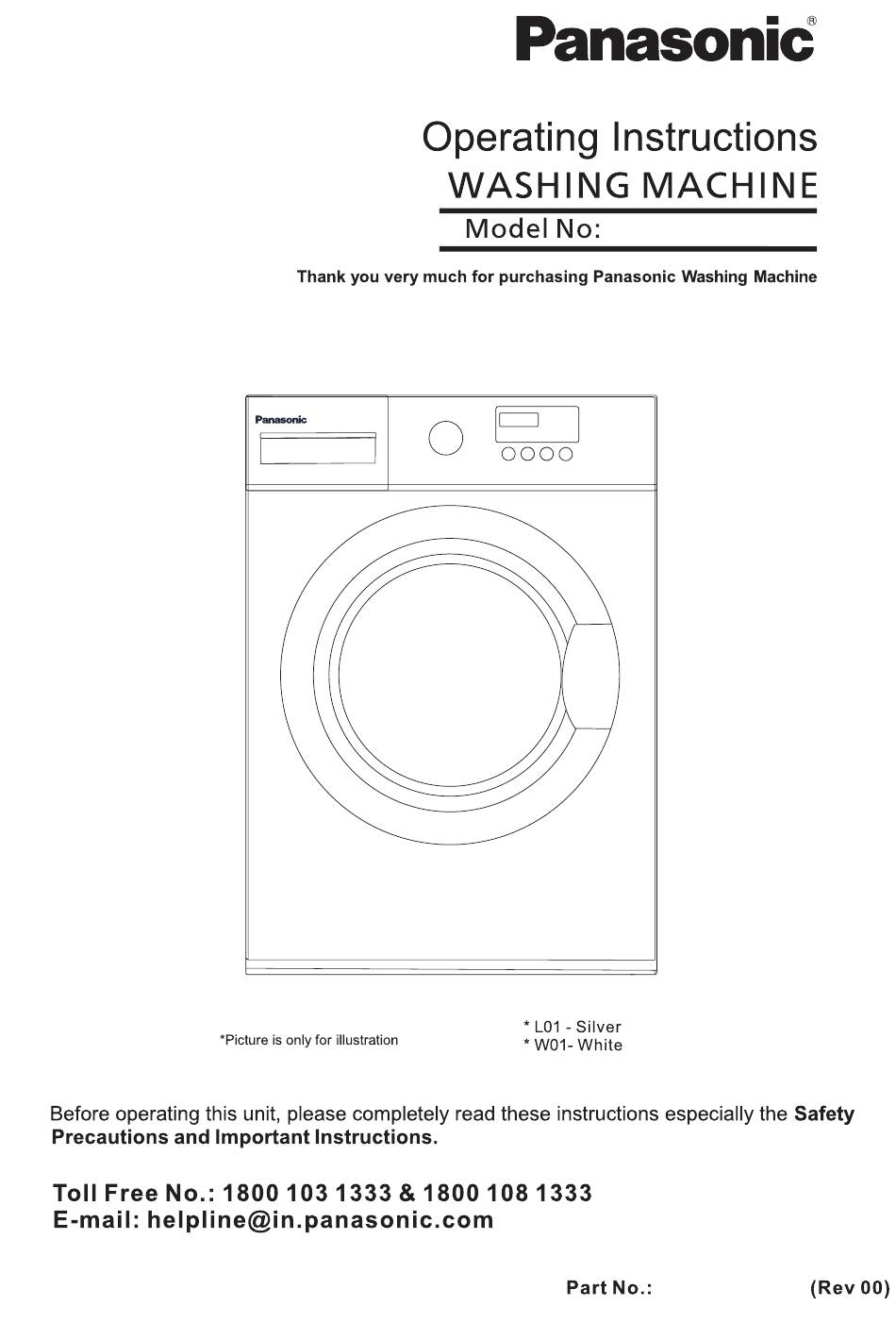

- Page 1 NA-106MC2* 22038110002774...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATIONS Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programmes............Washing Programmes Table ........MAINTENANCES Cleaning And Care ..........Trouble Shooting ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided. - Page 4 SAFETY INSTRUCTIONS • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Before any maintenance the device, unplug the appliance from the mains. • Always unplug the machine and turn off the water supply after use.
- Page 5 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation. • Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result. •...
- Page 6 SAFETY INSTRUCTIONS • Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result. Risk of damaging appliance! • Your product is only for home use and is only designed for the textiles suitable for machine washing. •...
- Page 7 SAFETY INSTRUCTIONS • Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc. may cause serious damages to this machine. • Please check whether the water inside the drum has been drained before opening its door.Please do not open the door if there is any water visible inside the drum.
-
Page 8: Product Description

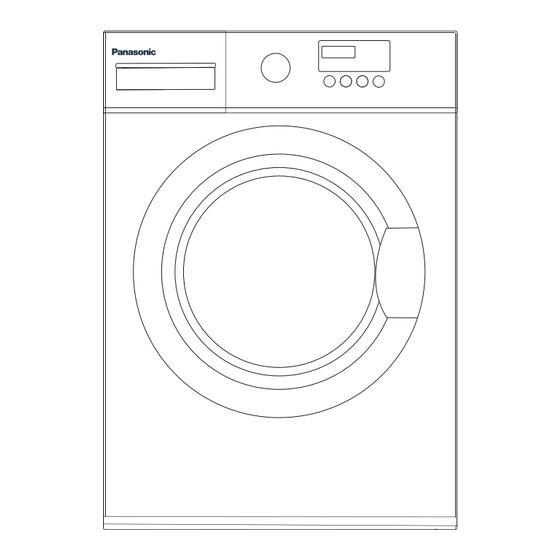

INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Drain hose support Screws Supply hose... -
Page 9: Installation
INSTALLATION Installation Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 10 INSTALLATION Levelling the washing machine Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 11 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose ！ ！ Warning! Warning! • Do not twist or elongate the drain hose. •...
-
Page 12: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing for the first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 13: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40)°C.If used under 0°C,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 14: Detergent Dispenser
OPERATIONS Detergent Dispenser Prewash detergent Main wash detergent Softener Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. 10 13... - Page 15 OPERATIONS Programme Programme Cotton Eco 40 °C Spin Only Drain Only Cotton Eco 60 °C Rinse&Spin Cotton Delicate 30 °C Cotton 20 °C Cotton 30 °C Delicate Cotton 40 °C Mix 60 °C Mix 40 °C Cotton 60 °C Cotton 90 °C Daily Wash 45' Synthetic Synthetic 40 °C...
-
Page 16: Control Panel
OPERATIONS Control Panel Note! • The chart is for reference only, Please refer to real product as standard. Start/Pause Product is switched off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. -
Page 17: Other Functions
OPERATIONS Option Extra Rinse: The laundry will undergo extra rinse once after you select it. Preset: Preset function can be set with this button, the pre-setting time is 0-24H. Spin Speed: It can set different speeds when the button is pressed repeatedly Programme Option Programme... - Page 18 OPERATIONS Child Lock To avoid mis operation by children. Extra Spin Rinse speed Press [Extra Rinse] and [Spin Speed] Start Choose the Programme 3 sec. till buzzer beep. Caution! • Press the two button for 3sec. also to release the function. •...
-
Page 19: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Cotton/ Normal Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. -
Page 20: Washing Programmes Table
OPERATIONS Washing Programmes Table Programme Load(kg) Temp. (℃) Default Time Hours: Minutes Default 1000 Cotton Eco 40 °C 2:43 2:40 Cotton Eco 60 °C Cold Cotton 1:35 Cotton 20 °C 1:19 Cotton 30 °C 1:20 1:40 Cotton 40 °C Cotton 60 °C 1:45 Cotton 90 °C 2:40... -
Page 21: Maintenances
MAINTENANCES Cleaning And Care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. - Page 22 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washing machine: Screw off the inlet pipe from the backside of the machine.
- Page 23 MAINTENANCES Cleaning The Drain Pump Filter Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 24: Trouble Shooting
MAINTENANCES Trouble Shooting If the appliance does not work at the start or it stops during operation, first try to find a solution to the problem as below. If still could not operate contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly... - Page 25 MAINTENANCES Description Reason Solution Restart after the door is closed Door is not closed properly Check if the clothes are stuck Check if the water pressure is Water injecting too low problem while Straighten the water pipe washing Check if the inlet valve filter is blocked Overtime water draining Check if the drain hose is blocked Water overflow...
-
Page 26: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz MAX.Current 0.05MPa~1MPa Standard Water Pressure Washing Net dimension Net Weight Rated Power Model Capacity (L x B x H) mm 6.0kg 595*470*850 54kg 1950W NA-106MC2* 10 25...
