SELECT VEHICLE
PRINT PAGES NEEDED
HOW TO USE THIS INSTALL GUIDE
1
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
2
Print only the pages for your vehicle using the advanced
options in the Print menu.
3
Install your Maestro SR according to the guide for your vehicle.
Pressing the printer icon or "quick printing" this document will print
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
all of the guides in this compilation.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for iDataLink Maestro SR

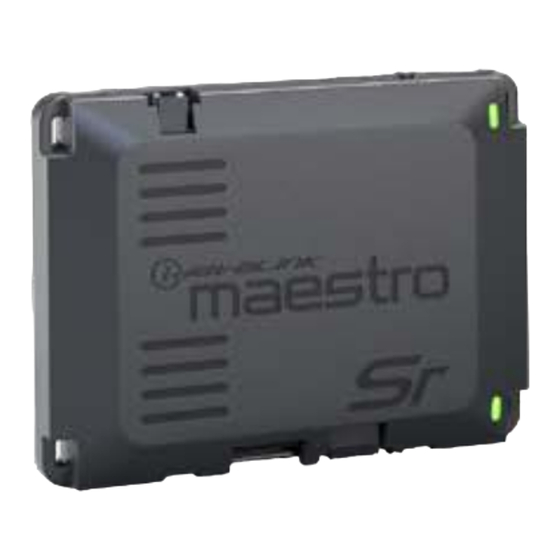

Summary of Contents for iDataLink Maestro SR
- Page 1 Print only the pages for your vehicle using the advanced options in the Print menu. Install your Maestro SR according to the guide for your vehicle. WARNING Pressing the printer icon or “quick printing” this document will print all of the guides in this compilation.
-
Page 2: Install Guide
PRODUCTS REQUIRED PROGRAMMED FIRMWARE: FO3-SR-DS iDatalink Maestro SR Radio Replacement Interface iDatalink Maestro SR-FO3 Installation Harness NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners. -
Page 3: Need Help
Ford E SEriES 2021-2023 WELCOME ADDITIONAL INFORMATION AND ACCESSORIES Congratulations on the purchase of your iDatalink Maestro SR Radio replacement solution. You are HEAD UNIT ADAPTER: now a few simple steps away from ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1 enjoying your new car radio with enhanced features. -
Page 4: Installation Instructions
STEP 2 • Plug the harnesses into the aftermarket radio. • Connect backup cam to radio (without SYNC). • Plug the Data cable to the iDatalink port of the aftermarket radio. Note: On Pioneer radio, ensure that there is nothing plugged into the W/R port. -
Page 5: Wiring Diagram
User configurable output - set up during module programming if desired. POC2 - POC2 - Low current negative (-350mA) polarity output used to trigger a relay. STEP 4 MAESTRO RR MODULE NOT REQUIRED STEERING WHEEL CONTROL CABLE Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com... -
Page 6: Radio Wire Reference Chart
Wire Color on Adapter Kenwood Radio Wire Description E-Brake LtGreen LtGreen Reverse Light* Purple/White Purple/White Steering Wheel Controls (DATA) Blue/Yellow * Reverse light wire: Only connect to radio or module damage will occur. Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com... -
Page 7: Module Diagnostics
Problem detected. Consult troubleshooting table. • 1 GREEN flash After radio boots up : Normal operation. • 3 GREEN flashes Bluetooth is activated. Turns off after one minute: Normal operation. • • Normal operation (inactive). Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com... -
Page 8: Troubleshooting Table
Ensure the 4-pin data cable is connected between the radio and the SR, and RED TWICE that it is plugged into the black port on the Maestro SR. The red and blue ports on the SR should be empty. Make sure the correct radio model and serial number were entered during the flash. - Page 9 PRODUCTS REQUIRED PROGRAMMED FIRMWARE: FO3-SR-DS iDatalink Maestro SR Radio Replacement Interface iDatalink Maestro SR-FO3 Installation Harness NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
- Page 10 Ford F250 XL without screen 2020 WELCOME ADDITIONAL INFORMATION AND ACCESSORIES Congratulations on the purchase of your iDatalink Maestro SR Radio replacement solution. You are HEAD UNIT ADAPTER: now a few simple steps away from ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1 enjoying your new car radio with enhanced features.
- Page 11 STEP 2 • Plug the harnesses into the aftermarket radio. • Connect backup cam to radio (without SYNC). • Plug the Data cable to the iDatalink port of the aftermarket radio. Note: On Pioneer radio, ensure that there is nothing plugged into the W/R port.
- Page 12 User configurable output - set up during module programming if desired. POC2 - POC2 - Low current negative (-350mA) polarity output used to trigger a relay. STEP 4 MAESTRO RR MODULE NOT REQUIRED STEERING WHEEL CONTROL CABLE Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com...
- Page 13 Wire Color on Adapter Kenwood Radio Wire Description E-Brake LtGreen LtGreen Reverse Light* Purple/White Purple/White Steering Wheel Controls (DATA) Blue/Yellow * Reverse light wire: Only connect to radio or module damage will occur. Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com...
- Page 14 Problem detected. Consult troubleshooting table. • 1 GREEN flash After radio boots up : Normal operation. • 3 GREEN flashes Bluetooth is activated. Turns off after one minute: Normal operation. • • Normal operation (inactive). Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com...
- Page 15 Ensure the 4-pin data cable is connected between the radio and the SR, and RED TWICE that it is plugged into the black port on the Maestro SR. The red and blue ports on the SR should be empty. Make sure the correct radio model and serial number were entered during the flash.
- Page 16 PRODUCTS REQUIRED PROGRAMMED FIRMWARE: FO3-SR-DS iDatalink Maestro SR Radio Replacement Interface iDatalink Maestro SR-FO3 Installation Harness NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
- Page 17 Ford F650 F750 Base 2021-2023 WELCOME ADDITIONAL INFORMATION AND ACCESSORIES Congratulations on the purchase of your iDatalink Maestro SR Radio replacement solution. You are HEAD UNIT ADAPTER: now a few simple steps away from ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1 enjoying your new car radio with enhanced features.
- Page 18 STEP 2 • Plug the harnesses into the aftermarket radio. • Connect backup cam to radio (without SYNC). • Plug the Data cable to the iDatalink port of the aftermarket radio. Note: On Pioneer radio, ensure that there is nothing plugged into the W/R port.
- Page 19 User configurable output - set up during module programming if desired. POC2 - POC2 - Low current negative (-350mA) polarity output used to trigger a relay. STEP 4 MAESTRO RR MODULE NOT REQUIRED STEERING WHEEL CONTROL CABLE Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com...
- Page 20 Wire Color on Adapter Kenwood Radio Wire Description E-Brake LtGreen LtGreen Reverse Light* Purple/White Purple/White Steering Wheel Controls (DATA) Blue/Yellow * Reverse light wire: Only connect to radio or module damage will occur. Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com...
- Page 21 Problem detected. Consult troubleshooting table. • 1 GREEN flash After radio boots up : Normal operation. • 3 GREEN flashes Bluetooth is activated. Turns off after one minute: Normal operation. • • Normal operation (inactive). Automotive Data Solutions Inc. © 2024 FO3-SR-DS-(SR-FO3)-EN maestro.idatalink.com...
- Page 22 Ensure the 4-pin data cable is connected between the radio and the SR, and RED TWICE that it is plugged into the black port on the Maestro SR. The red and blue ports on the SR should be empty. Make sure the correct radio model and serial number were entered during the flash.
- Page 23 Print only the pages for your vehicle using the advanced options in the Print menu. Install your Maestro SR according to the guide for your vehicle. WARNING Pressing the printer icon or “quick printing” this document will print all of the guides in this compilation.
- Page 24 PRODUCTS REQUIRED PROGRAMMED FIRMWARE: FO3-SR-AS iDatalink Maestro SR Radio Replacement Interface iDatalink Maestro SR-FO3 Installation Harness NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
- Page 25 Ford E SEriES 2021-2023 WELCOME ADDITIONAL INFORMATION AND ACCESSORIES Congratulations on the purchase of your iDatalink Maestro SR Radio replacement solution. You are HEAD UNIT ADAPTER: now a few simple steps away from ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1 enjoying your new car radio with enhanced features.
- Page 26 STEP 3 • Connect the factory radio harness to the SR-FO3 T-harness. STEP 4 • Connect the SR-FO3 harness to the Maestro SR module. • Connect the steering wheel control cable. Test your installation. Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 27 User configurable output - set up during module programming if desired. POC2 - POC2 - Low current negative (-350mA) polarity output used to trigger a relay. STEP 4 MAESTRO SR MODULE NOT REQUIRED DATA CABLE Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 28 Wire Description Refer to camera/ Green/Red E-Brake LtGreen LtGreen radio manual Refer to camera/ Reverse Light* Purple/White Purple/White Green/White radio manual Steering Wheel Controls (DATA) Blue/Yellow Blue/Yellow Steering Wheel Controls (DATA) Blue/Yellow Blue/Yellow Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 29 Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE. • 1 GREEN flash After radio boots up : Normal operation. • 3 GREEN flashes Bluetooth is activated. Turns off after one minute: Normal operation. • • Normal operation (inactive). Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 30 Ensure the purple/white wire from the Maestro harness is connected only to the radio's reverse input. MAESTRO SR RESET PROCEDURE: Turn the key to the OFF position, then disconnect all connectors from the module. Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may take up to 10 seconds).
- Page 31 PRODUCTS REQUIRED PROGRAMMED FIRMWARE: FO3-SR-AS iDatalink Maestro SR Radio Replacement Interface iDatalink Maestro SR-FO3 Installation Harness NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
- Page 32 Ford F250 XL without screen 2020 WELCOME ADDITIONAL INFORMATION AND ACCESSORIES Congratulations on the purchase of your iDatalink Maestro SR Radio replacement solution. You are HEAD UNIT ADAPTER: now a few simple steps away from ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1 enjoying your new car radio with enhanced features.
- Page 33 STEP 3 • Connect the factory radio harness to the SR-FO3 T-harness. STEP 4 • Connect the SR-FO3 harness to the Maestro SR module. • Connect the steering wheel control cable. Test your installation. Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 34 User configurable output - set up during module programming if desired. POC2 - POC2 - Low current negative (-350mA) polarity output used to trigger a relay. STEP 4 MAESTRO SR MODULE NOT REQUIRED DATA CABLE Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 35 Wire Description Refer to camera/ Green/Red E-Brake LtGreen LtGreen radio manual Refer to camera/ Reverse Light* Purple/White Purple/White Green/White radio manual Steering Wheel Controls (DATA) Blue/Yellow Blue/Yellow Steering Wheel Controls (DATA) Blue/Yellow Blue/Yellow Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 36 Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE. • 1 GREEN flash After radio boots up : Normal operation. • 3 GREEN flashes Bluetooth is activated. Turns off after one minute: Normal operation. • • Normal operation (inactive). Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 37 Ensure the purple/white wire from the Maestro harness is connected only to the radio's reverse input. MAESTRO SR RESET PROCEDURE: Turn the key to the OFF position, then disconnect all connectors from the module. Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may take up to 10 seconds).
- Page 38 PRODUCTS REQUIRED PROGRAMMED FIRMWARE: FO3-SR-AS iDatalink Maestro SR Radio Replacement Interface iDatalink Maestro SR-FO3 Installation Harness NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
- Page 39 Ford F650 F750 Base 2021-2023 WELCOME ADDITIONAL INFORMATION AND ACCESSORIES Congratulations on the purchase of your iDatalink Maestro SR Radio replacement solution. You are HEAD UNIT ADAPTER: now a few simple steps away from ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1 enjoying your new car radio with enhanced features.
- Page 40 STEP 3 • Connect the factory radio harness to the SR-FO3 T-harness. STEP 4 • Connect the SR-FO3 harness to the Maestro SR module. • Connect the steering wheel control cable. Test your installation. Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 41 User configurable output - set up during module programming if desired. POC2 - POC2 - Low current negative (-350mA) polarity output used to trigger a relay. STEP 4 MAESTRO SR MODULE NOT REQUIRED DATA CABLE Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 42 Wire Description Refer to camera/ Green/Red E-Brake LtGreen LtGreen radio manual Refer to camera/ Reverse Light* Purple/White Purple/White Green/White radio manual Steering Wheel Controls (DATA) Blue/Yellow Blue/Yellow Steering Wheel Controls (DATA) Blue/Yellow Blue/Yellow Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 43 Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE. • 1 GREEN flash After radio boots up : Normal operation. • 3 GREEN flashes Bluetooth is activated. Turns off after one minute: Normal operation. • • Normal operation (inactive). Automotive Data Solutions Inc. © 2024 FO3-SR-AS-(SR-FO3)-EN maestro.idatalink.com...
- Page 44 Ensure the purple/white wire from the Maestro harness is connected only to the radio's reverse input. MAESTRO SR RESET PROCEDURE: Turn the key to the OFF position, then disconnect all connectors from the module. Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may take up to 10 seconds).
