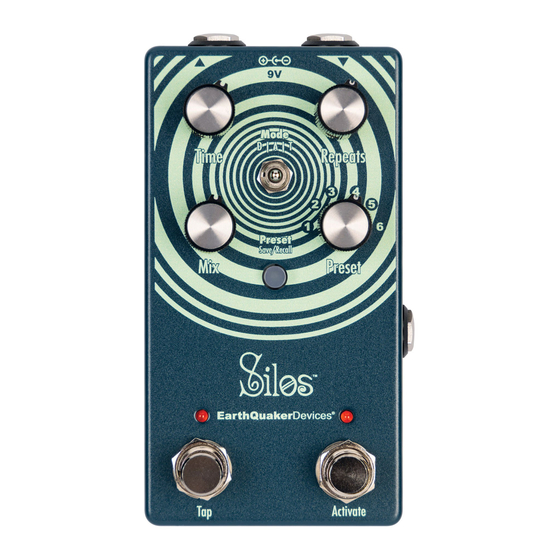

EarthQuaker Devices Silos Operating Instructions Manual

Multi-generational time reflection device
Hide thumbs Also See for Silos:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Silos
Silos™ Multi-Generational Time Reflection Device
Operating Instructions
Hey there, fellow Time Travelers! Were you tired of trying to fit all of your favorite delays onto
your already overflowing pedalboard? Did you constantly have trouble choosing just one pedal
to serve as the catalyst of your echo-centric musings? Had you wished that a pedal company
would give you more bang for your buck by merging multiple classic delay effects into one
simple little box? Well hold on to your whammy bar, because your problems are solved now
that you've acquired the new Silos™ Tri-Voice Time Navigator!
That's right, we've taken a digital delay, an analog delay, and a tape delay and merged them all
together as one pedal with six presets, a tap-tempo, and user assignable expression control.
Take a moment to compose yourself, we totally understand. Let us give you a little backstory: it
all started when EQD founder Jamie Stillman was admiring his three favorite delay pedals from
his personal collection and began ruminating on their vast differences. This sparked an
ambitious foray into uncharted territory in finding a way to assemble them all together as one
uncomplicated unit. After months of tinkering, his mission was accomplished and the Silos™ was
born. With just four knobs, one three-way switch, one Save/Recall button, and two
footswitches, he made the impossible possible and now your guitar playing shall reap the
rewards!
Each of the three modes offers up to one second of delay time which allows it to be a longer
delay than our other delay pedals. From noon and back is 500 milliseconds to zero, which has its
own character. From 500 milliseconds to one second of delay time, it's an entirely different
beast. Dial them in for shorter delay times where they really excel and add loads of atmosphere
and vibes. Push them further for rhythmic delays that are perfect for strumming and adding
extra ambiance for your riffs. And the tap tempo is truly precise and responsive so you can lock
in your rate quickly within the first revolutions.
Now we don't want to insult you by gear-splaining delays or anything, but we'd be remiss to not
dish on some unique differences of each mode.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silos and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EarthQuaker Devices Silos

Summary of Contents for EarthQuaker Devices Silos

  • Page 1 After months of tinkering, his mission was accomplished and the Silos™ was born. With just four knobs, one three-way switch, one Save/Recall button, and two...
  • Page 2 So now that your delay selection dilemma is solved and your pedalboard is more spacious than ever, go forth and boldly riff as you have never riffed before! Each Silos™ pedal is triple distilled, triple tested, and triple handcrafted in Akron, Ohio, USA.
  • Page 3 Silos is a tri-voice delay with tap tempo, user-assignable expression control and the ability to save and recall six presets. EarthQuaker Devices Silos Controls Mode D: Digital Delay Controls • Time: Sets the delay time from 0-1 second. • Repeats: Controls the regeneration of the delay signal. This mode does not self-oscillate.

  • Page 4: Global Features

    Mix: Adjusts the level of the delay signal. Footswitches Activate: This turns the delay on/off. Silos is buffered bypass, the delay trails will naturally decay when the pedal is turned off. Tap: Tap twice (or more) to set the tempo of the delay. The tap tempo is fixed at a 1:1 ratio.
  • Page 5 Silos comes factory set to start up in Live Mode. Presets Silos has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the mode switch and the expression jack assignment can be saved and recalled in any of the slots.

  • Page 6: Expression Control

    Insert the expression pedal TRS plug into the EXP jack. Place the expression pedal in the toe down position. Turn the panel control on the Silos that you wish to put under control of the expression pedal. It doesn’t matter how far or which direction you turn the control.

  • Page 7: Power Requirements

    For momentary operation: With the effect off, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch, the effect will be bypassed. Note that holding the bypass switch down while Silos is activated will switch into the selected Preset Mode! Silos is buffered bypass with tails.

  • Page 8: Warranty

    Warranty This device has a limited lifetime warranty. If it breaks, we will fix it. Should you encounter any issues, please visit www.earthquakerdevices.com/support.
