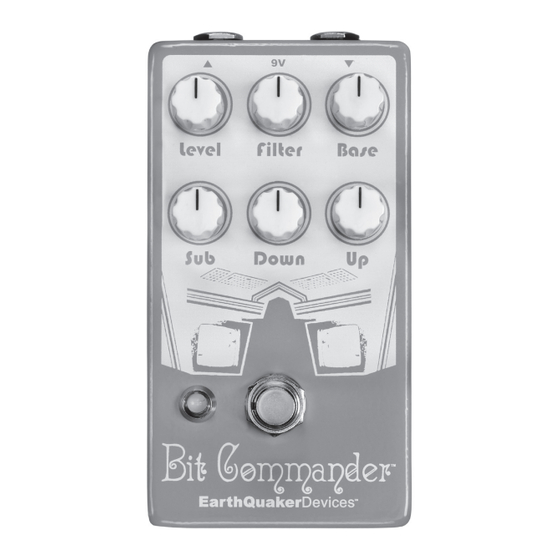

EarthQuaker Devices Bit Commander Operation Manual

Download this manual

<<< Switching >>>

This device is true bypass and uses electronic relay-based switching. Audio will not pass

without power.

<<< Power Requirements >>>

• Current Draw: 25mA

• This device take a standard 9 volt DC power supply with a 2.1mm negative center barrel. We

always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple

isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power.

Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter

dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

<<< Tech Specs >>>

• Input Impedance: 50K Ohm

<<< Warranty >>>

This device has a limited lifetime warranty. If it breaks, we will fix it. Should you encounter any

issues, please email info@earthquakerdevices.com.

www.earthquakerdevices.com

• Output Impedance: <500 Ohm

O P E R A T I O N M A N U A L

Page 1 This device has a limited lifetime warranty. If it breaks, we will fix it. Should you encounter any issues, please email info@earthquakerdevices.com. www.earthquakerdevices.com O P E R A T I O N M A N U A L ©2018 EarthQuaker Devices LLC...
Page 2 7th fret up on all the strings. Below the 7th will still track but there will be occasional glitches and stutters. The lower the note, the harder it is for the Bit Commander to register. The use of Bass and lower registers on keyboards will yield unexpected, sometimes pleasing, sometimes disgusting results.
