O P E R AT I N G
EN
M A N U A L

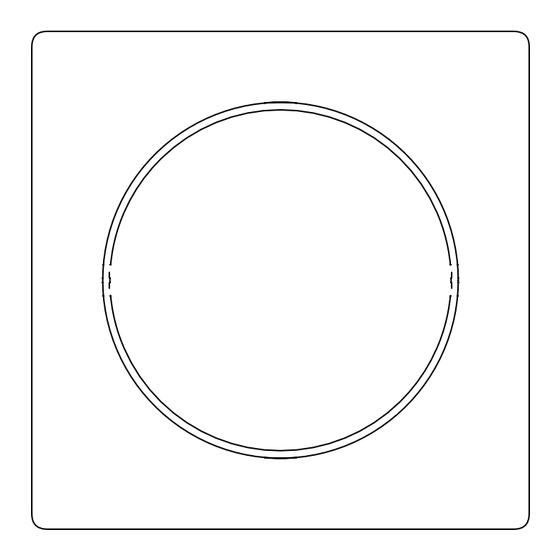

FIBARO WALLI CONTROLLER
FGWCEU-201
v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WALLI CONTROLLER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FIBARO WALLI CONTROLLER

Summary of Contents for FIBARO WALLI CONTROLLER

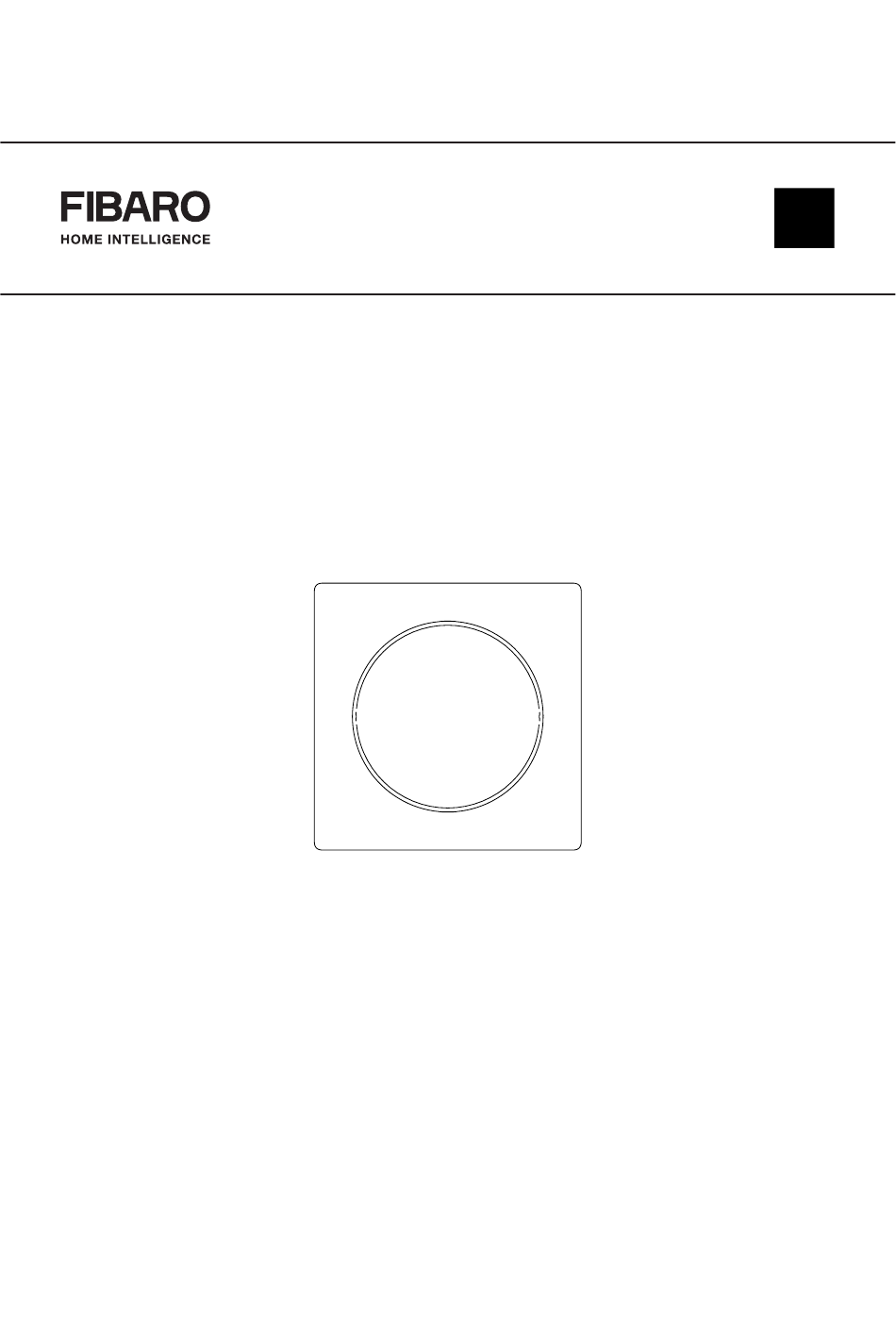

  • Page 1 O P E R AT I N G M A N U A L FIBARO WALLI CONTROLLER FGWCEU-201 v1.0...

  • Page 3: Table Of Contents

    Table of contents 1: Important safety information 2: Description and features 2.1: Description 2.2: Main features 3: Specifications 4: First installation 4.1: Installing on a smooth surface with battery supply 4.2: Installing on a mounting box with battery supply 4.3: Installing on a mounting box with an external power supply 5: Adding to Z-Wave network 5.1: Adding manually 5.2: Adding using SmartStart...

  • Page 4: 1: Important Safety Information

    1: Important safety information Read this manual before attempting to install the device! Failure to observe recommendations included in this manual can be dangerous or cause a violation of the law. The manufacturer, Nice-Polska Sp. z o.o. will not be held responsible for any loss or damage resulting from not following the instructions of operating manual.

  • Page 5: 2: Description And Features

    2: Description and features 2.1: Description FIBARO Walli Controller is a smart wall-mounted Z-Wave™ remote controller that can activate scenes or control other Z-Wave devices with associations. 2.2: Main features • Can be used for controlling multiple types of devices such as switches, dimmers, roller shutters •...

  • Page 6: 3: Specifications

    3: Specifications Power supply Battery and/or power supply unit Battery type ER14250 ½AA 3.6 V (included) Supply unit type 5 – 24V DC SELV power supply, LPS or NEC class 2 (not included) Battery life est. 2 years (with default settings and max. 10 pushes per day) Operating temperature 0 –...

  • Page 7: 4: First Installation

    4: First installation You can install the device on any smooth surface using the included adhe- sive tape or on a mounting box using screws. The device selects the powering mode when added to the Z-Wave network, prioritizing external power supply if connect- ed.

  • Page 8: Installing On A Mounting Box With An External Power Supply

    that the power port is obscured by it. 4.3: Installing on a mounting box with an external power supply Preparation of the power supply 1. Switch off the mains voltage (disable the fuse). 2. Using wire connectors connect the included power connector to the power supply (black to the negative wire, red to the positive wire).

  • Page 9: 5: Adding To Z-Wave Network

    5: Adding to Z-Wave network Adding (Inclusion) – The Z-Wave device learning mode enables you to add the device to existing Z-Wave network. The device selects the powering mode when added to the Z-Wave network, prioritizing external power supply if connect- ed.

  • Page 10: Adding Using Smartstart

    5.2: Adding using SmartStart SmartStart enabled adding products into the Z-Wave network by scan- ning the Z-Wave QR Code present on the product with a controller that provides  SmartStart inclusion. The SmartStart product is added automat- ically within 10 minutes of being switched on, if it's in the network range. To add the device to the Z-Wave network using SmartStart: 1.

  • Page 11: 6: Removing From Z-Wave Network

    6: Removing from Z-Wave network Removing (Exclusion) – the Z-Wave device learning mode enables you to remove the device from the existing Z-Wave network. Removing also results in resetting the device to factory defaults. To remove the device from the Z-Wave network: 1.

  • Page 12: 7: Operation

    7: Operation 7.1: Controls 1. First/ button, 2. Second/ button, 3. LED ring. 7.2: Operating modes Scene Controller This mode is enabled by default or by setting parameter 20 to 0. In this mode, the device can activate scenes in the Z-Wave controller by sending scene ID and attribute of a specific action (using Central Scene Command Class).
  • Page 13 1st button – controls 2nd and 3rd group: • Click – alternately ON with last level / OFF, • 2 x click – send pre-set level (set in parameter 152), • Hold – alternately increasing/decreasing level until released. 2nd button – controls 4th and 5th group: •...

  • Page 14: Powering Modes

    Roller Shutter Step-By-Step Controller This mode is enabled by setting parameter 20 to 5. In this mode the device uses associations to control Z-Wave roller shutter controllers (group 6) in Step-By-Step mode (alternately sends commands for movement and stopping). The 1 button –...

  • Page 15: Temperature Sensor

    Battery mode In battery mode, the device indicates commands status, but cannot re- ceive indications from the Z-Wave controller (using Indicator CC), except for Identification. The device needs to be woken up to change its configuration. The battery level (in percent) is measured during every power up and peri- odically every 24h, the measured value is reported to the controller during every power up and when it changes by at least 5%.

  • Page 16: Menu

    Command status: The device displays last command status in response to clicking/holding a button. • Green for 2 seconds – command acknowledged • Red for 2 seconds – command not acknowledged Identification: The Z-Wave controller can identify this device by signalling with LED ring (using Indicator CC).

  • Page 17: Resetting To Factory Defaults

    Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user config- uration will be deleted. Resetting the device is not the recommended way of remov- ing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable.

  • Page 18: 8: Configuration

    8: Configuration 8.1: Associations Association (linking devices) – direct control of other devices within the Z-Wave system network. Associations enables: • reporting the device status to the Z-Wave controller (using the Lifeline group) • creating simple automations by controlling other devices without par- ticipation of the main controller (using groups assigned to actions on the device) The device provides the association of 7 groups:...
  • Page 19 Commands sent to association groups in Double Button Mode (pa- rameter 20 set to 1) 1 click 2 click Hold Release Multilevel Multilevel Stop Button Basic Set: 2 Basic Set: 2 Start Change: Change: 3 group group group group Multilevel Multilevel Stop Button Basic Set: 4...
  • Page 20 1 click 2 click Hold Release Multilevel Button Start / Stop Multilevel – – 1 (up) Change: 6 Set: 6 group group Multilevel But- Multilevel Stop Start / Stop ton 2 Change: 6 – – Change: 6 (down) group group Commands sent to association groups in Venetian Blinds Step-By- Step Controller Mode (parameter 20 set to 6) 1 click...

  • Page 21: Advanced Parameters

    8.2: Advanced parameters The device enables customizing its operation to user’s needs using config- urable parameters. The settings can be adjusted using a Z-Wave controller to which the de- vice is added. The way of adjusting them might differ depending on the controller.
  • Page 22 This parameter defines the color of first button Description indicator (upper part of the LED ring) for indications using Indicator CC. Parameter size 2B Default value 1 (white) 0 – LED disabled 1 – White 2 – Red 3 – Green Available 4 –...
  • Page 23 This parameter defines value of Basic Set or Multi- level Set frame (depending on selected mode) sent Description to associated devices after double click. This pa- rameter isn't relevant for Scene Controller Mode. Parameter size 2B Default value Available 0-99 or 255 values 153.

  • Page 24: 9: Z-Wave Specification

    9: Z-Wave specification Generic Device Class: GENERIC_TYPE_WALL_CONTROLLER Specific Device Class: not used Supported Command Classes Command Class Version Secure 1.COMMAND_CLASS_ZWAVEPLUS_INFO [0x5E] 2.COMMAND_CLASS_ASSOCIATION [0x85] COMMAND_CLASS_MULTI_CHANNEL_ASSOCI- ATION [0x8E] COMMAND_CLASS_ASSOCIATION_GRP_INFO [0x59] 5.COMMAND_CLASS_INDICATOR [0x87] COMMAND_CLASS_TRANSPORT_SERVICE [0x55] 7.COMMAND_CLASS_VERSION [0x86] COMMAND_CLASS_MANUFACTURER_SPECIF- IC [0x72] COMMAND_CLASS_DEVICE_RESET_LOCALLY [0x5A] 10.COMMAND_CLASS_POWERLEVEL [0x73] 11.COMMAND_CLASS_SECURITY [0x98] 12.COMMAND_CLASS_SECURITY_2 [0x9F] 13.COMMAND_CLASS_SUPERVISION [0x6C]...
  • Page 25 Wake Up CC (only in battery mode) Min. Interval Seconds 0 – off, 3600 [s] = 1 [h] Max. Interval Seconds 43200 [s] = 12[h] Default Interval Seconds 21600 [s] = 6 [h] Interval Step Seconds 3600 Default NodeID Additional Sending Frame Menu –...
  • Page 26 Used to set the number of On/Off periods. Available values: • 0x00 .. 0xFE (0 .. 254 times) 0x04 On/Off Cycles • 0xFF (indicate until stopped) If this is specified, the On/Off Period MUST also be specified. Used to set the length of the On time during an On/Off period.

  • Page 27: 10: Regulations

    Hereby, Nice-Polska Sp. z o.o. declares that the device is in com- pliance with Directives 2014/53/EU and 2011/65/EU, 2015/863. The full text of the EU declaration of conformity is available at the following internet address: www.manuals.fibaro.com WEEE Directive Compliance Device labelled with this symbol should not be disposed with other household wastes.
