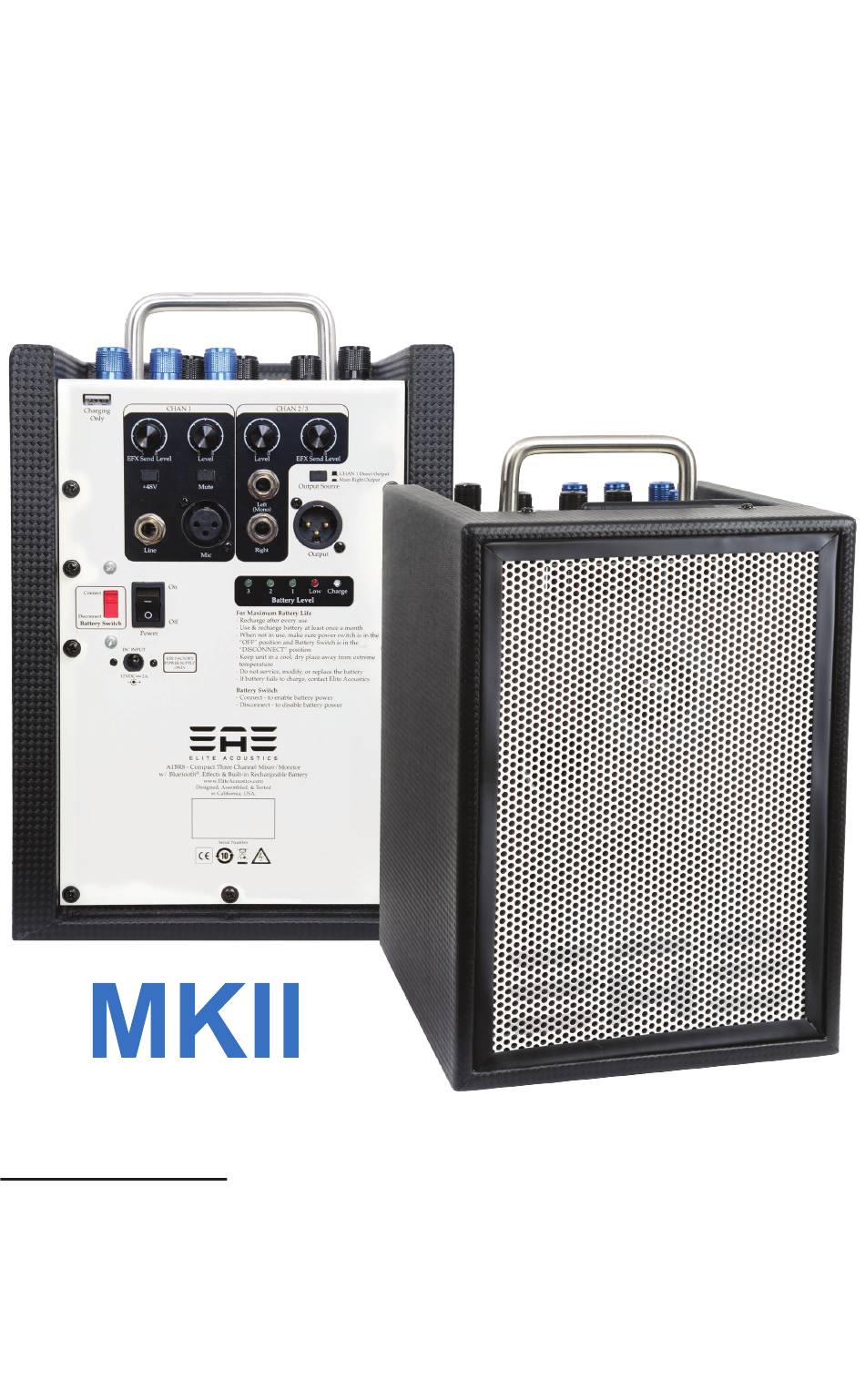

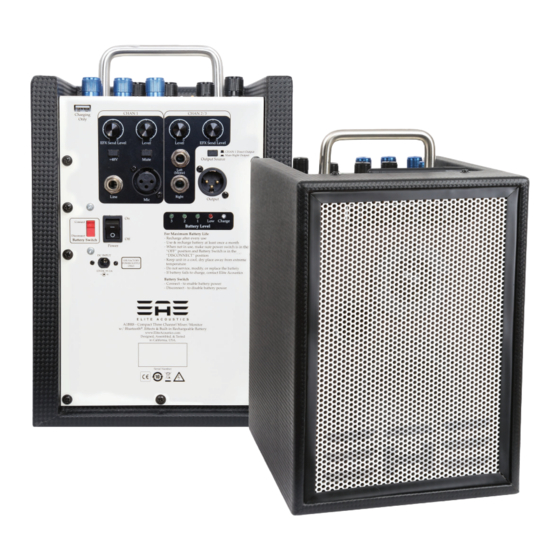

Elite Acoustics Engineering
A1-4 MKII 40W Acoustic Amplifier with
3 Channels, Effects, Lithium Battery
and Bluetooth®
Quick Start Guide V1.00
WHAT IS IN THE BOX
Your A1-4 MKII package contains the following:
(1) Speaker
(1) 12V AC Power Supply Adapter
(1) Registration Card
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate. Revision Date: May 8, 2019
Advertisement
Related Manuals for Elite Acoustics Engineering A1-4 MKII
Summary of Contents for Elite Acoustics Engineering A1-4 MKII
- Page 1 3 Channels, Effects, Lithium Battery and Bluetooth® Quick Start Guide V1.00 WHAT IS IN THE BOX Your A1-4 MKII package contains the following: (1) Speaker (1) 12V AC Power Supply Adapter (1) Registration Card The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks...
-
Page 2: Quick Start
QUICK START Battery Switch [26] is set to Connect. (Battery Switch to preserve battery life.) Make sure the SPEAKER VOLUME [3] control is down before you turn the POWER [25] Connect the input of your microphone to the MIC IN [18]. Or you can connect a ¼” line input from an instrument [15]. - Page 3 DIGITAL EFX 16 DIGITAL EFX PROGRAMS • • There are 16 total Digital EFX programs • R1 to R10 - REVERB • E1 and E2 - ECHO • ER1 and ER2 - Echo and Reverb • CHO - Chorus • FLange - Flanger •...
- Page 4 EFFECTS R1 Bright Cavern R2 Dark Cavern R3 Bright Hall E L I T E A C O U S T I C S INSTR/LINE IN R4 Dark Hall A1-4 - Live-Performance Studio Monitor R5 Bright Room with 3 Channels, Mixer, Effects, and Bluetooth ®...
- Page 5 Specifiactions. • Speakers: 4” Woofer, 1” Silk-Dome Tweeter • Amplifier: 40 Watt Class D Bi-AMP • Nominal output level (1 kHz): Main/Direct Output: +4dBu • Channel controls: CH1/2/3: EFX Send Level knob, Level knob, Mute switch, +48V Phantom Power switch •...
- Page 6 Swtich in Disconnected position, but make sure to recharge unit monthly. • Keep unit in a cool, dry place away from extreme temperatures • Do not service, modify, or replace the battery • If the battery fails to charge, contact Elite Acoustics Engineering...
- Page 7 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
