Elite Acoustics Engineering

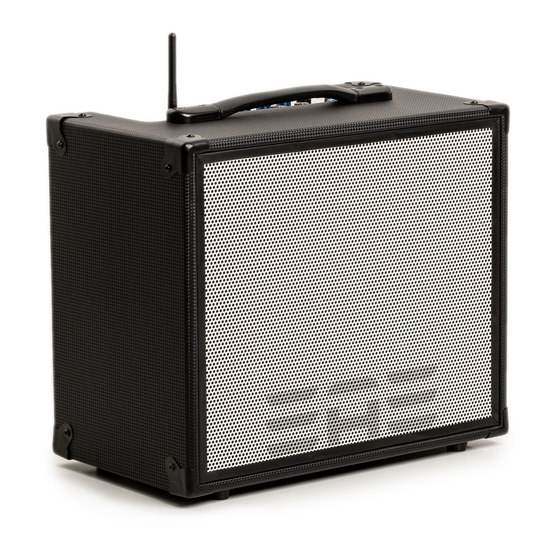

A6-55 Acoustic Guitar and Vocal
Amplifier with 6 Channels, Mixer,
7

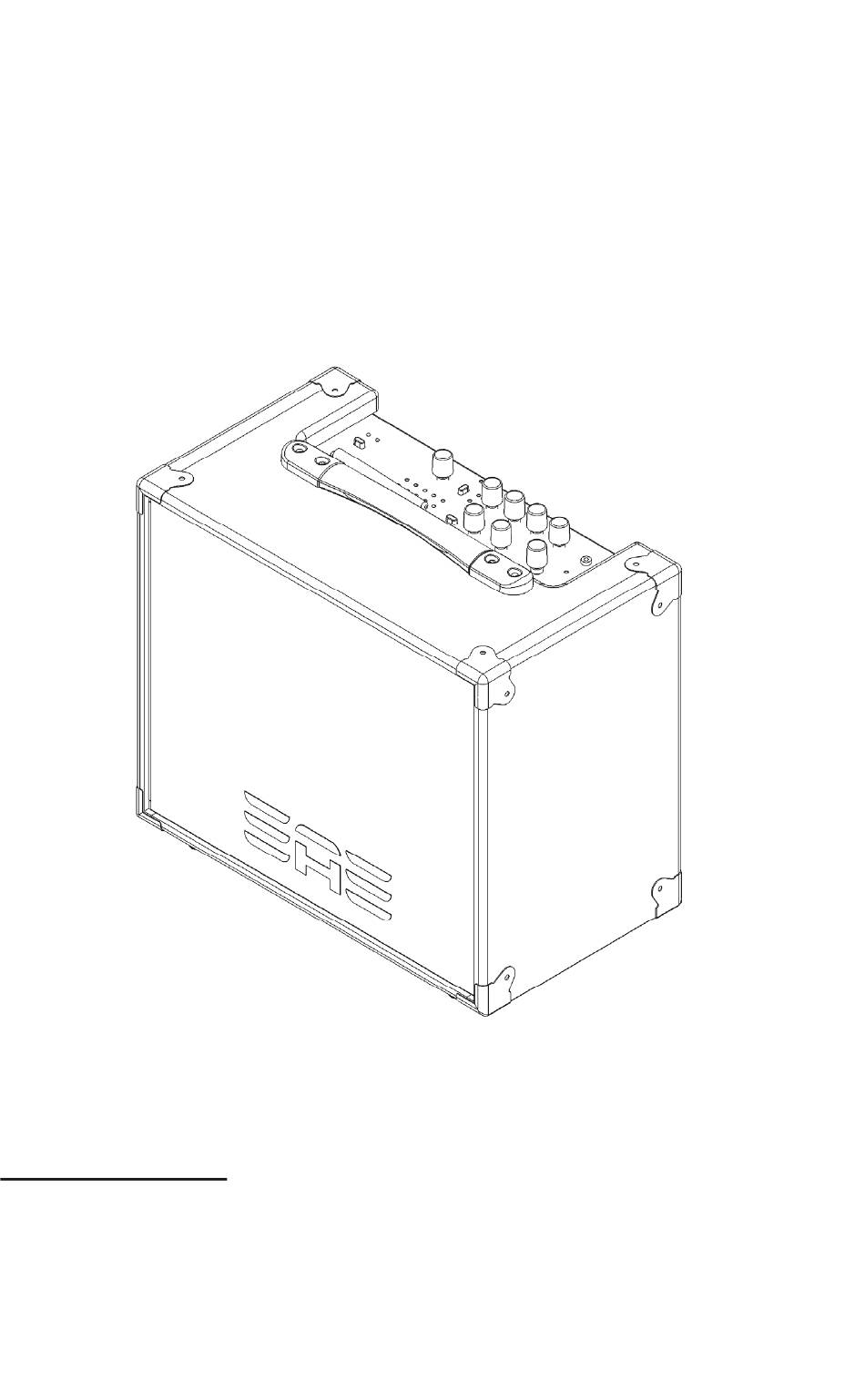

WHAT IS IN THE BOX
Your A6-55 package contains the following:
(1) Speaker
7
(1) 12V AC Power Supply Adapter
(1) 12V DC Car Battery Supply Adapter
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.
6
Effects, Lithium Battery
and Bluetooth
6
5
(1) Quick Start Guide
5
(1) Registration Card (USA ONLY)
4
®
4
3
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
3
2
NEXT ASSY
USED ON
APPLICATION
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elite Acoustics Engineering A6-55
Summary of Contents for Elite Acoustics Engineering A6-55
- Page 1 The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Elite Acoustics Engineering, Inc is under license NOTE: Due to continuous development and improvements of our products, features and specifications are subject to...
-
Page 2: Quick Start
QUICK START Battery Switch [37] is set to Connect. (Battery Switch is set to Disconnect position to preserve battery life for transit or storage.) Make sure the SPEAKER VOLUME [3] control is down before you turn the POWER [38] Connect the input of your microphone to the MIC IN [18]. Or you can connect a ¼” line input from an instrument [17]. - Page 3 Top Panel View Power LED: BLUE [1]: Indicate unit is ON +48V LED [2]: Indicates Phantom Power is on -- for Both Chan 1 and Chan 2. Monitor Output Controls Aux Input/Level [7]: Speaker Volume [3]: Control speakers’ volume level Connect audio source Mono [4]: Changes speaker output to Mono sound with 1/8”...
-
Page 4: Bluetooth Function
Metering Chan 1 Signal, Clip and Mute LED Chan 2 Signal, Clip and Mute LED Chan 3 Signal, Clip and Mute LED Chan 4 Signal, Clip and Mute LED Chan 5/6 Signal and Clipping LED Use Signal and Clip LEDs to monitor the input signals to help prevent distortion. - Page 5 Channel 1 and Channel 2 Notch Filter [19]: Adjust to Gain [12]: Gain level Reduce feedback control Notch Filter Frequency [20]: Mute [13]: Mute channel EFX Send Level [14]: How much output effect is being Equalizer [21]: Controls Low, sent out Mids, Mid FREQ and High EFX/AUX source select switch: Send to EFX or AUX.
- Page 6 Channel 3 and Channel 4 Gain [22]: Gain level control Mute [23]: Mute channel EFX Send Level [24]: How much output effect is being sent out EFX/AUX source select switch: Send to EFX or AUX. PAD [26]: Attenuate if needed Line In [27]: 1/4”...
- Page 7 Monitor Output: Connect with extra speakers/monitors Monitor Output [33]: Connect to another active speakers using 1/4” TRS cable. Foot Switch[36] : Connect up to 3 Foot Switches Footswith #1 is for EFX bypass. #2 is for Mute Chan #1 and #3 is for Mute Chan #2.
-
Page 9: Car Adaptor
EAE BATTERY & RECHARGING INFORMATION To fully charge a unit – a. Set Battery Switch to “CONNECT” b. Turn Power Switch OFF c. Connect “AC” adaptor to Power Jack. d. Blue “Charge” LED should be lit, Charge time is about 5-6 hours. When unit is powered with “AC”... - Page 10 HOW TO DEAL WITH ACOUSTIC FEEDBACK Simply put, the annoying shrilling howl of growing and untamed feedback is the result of “in- phase” frequencies getting together and being reinforced by the sound system and environ- ment. Phase Switch – since the purpose of the Phase Switch is to reverse the polarity, the first line of defense is to change the phase, which can sometimes be a cure all by itself.
- Page 11 DIGITAL EFX 16 DIGITAL EFX PROGRAMS • • There are 16 total Digital EFX programs • R1 to R10 - REVERB • E1 and E2 - ECHO • ER1 and ER2 - Echo and Reverb • CHO - Chorus • FLange - Flanger •...
-
Page 12: System Specifications
SYSTEM SPECIFICATIONS Speakers: Woofer = 2 x 5 1/4” Tweeter = 2 x 1” Silk-Dome Optimized front ports for extended low-frequency response Frequency response 70Hz - 20k Hz Cabinet: MDF or Plywood. Amplifier: High-Efficiency Class D 100 Watt EQ Controls: +/- 12dB @ 50Hz (shelving) +/- 12dB @ 200Hz –... - Page 13 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
