Elite Acoustics Engineering

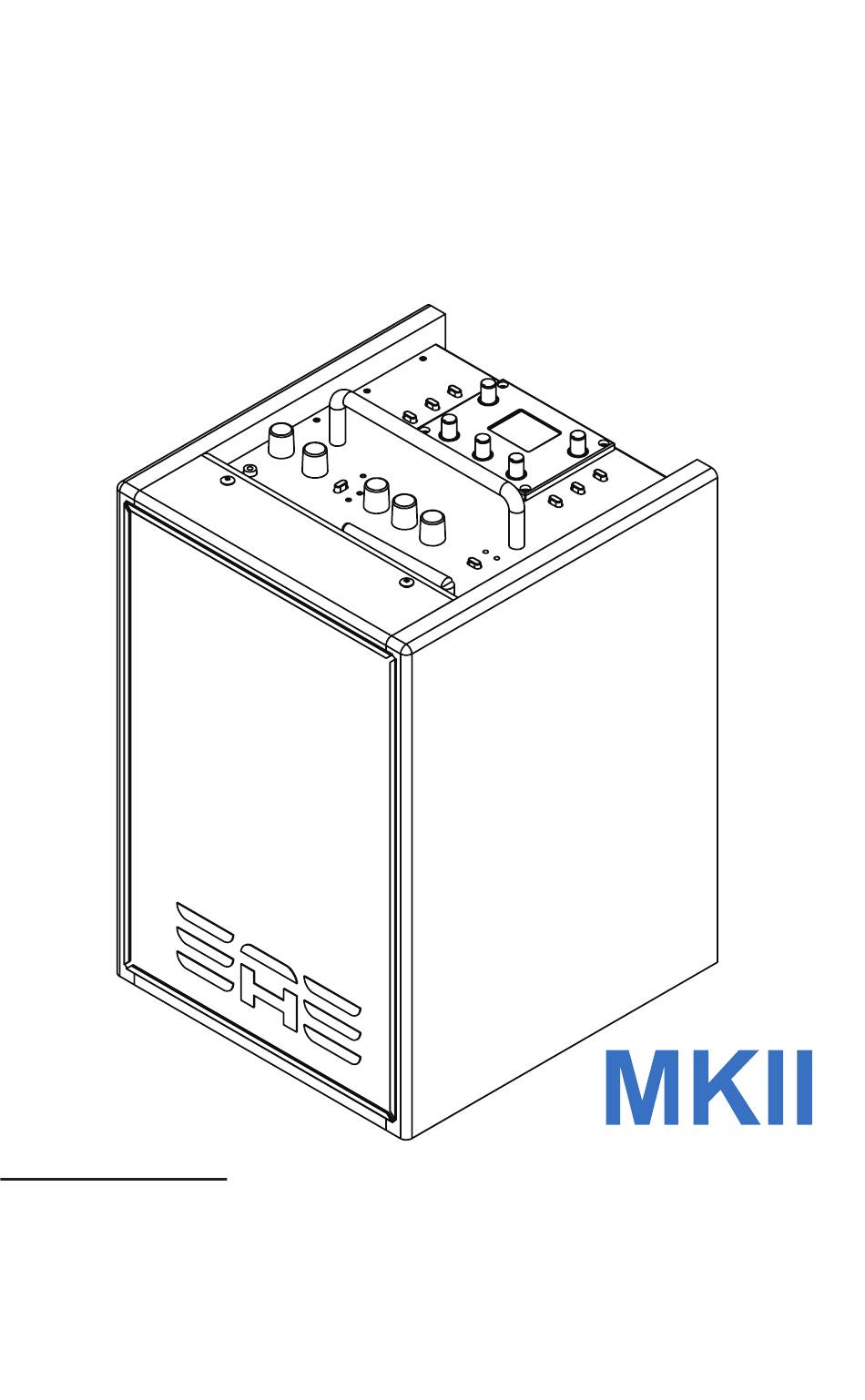

D6-8 MKII 80W Lithium Battery Powered
Acoustic Amplifier with 6 Channels,
Digital Mixer & Effects, and Bluetooth
WHAT IS IN THE BOX
Your D6-8 MKII package contains the following:
(1) Speaker
(1) AC to 12VDC Power Supply Adapter
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing. and any use of such marks
by Elite Acoustics Designs, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.
For a copy of the complete User's Manual, please visit: www.eliteacoustics.com - July 10, 2019
Quick Guide Handbook version v1.01
(1) Quick Start Guide & Registration Card
(1) Speaker Handle Grip
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elite Acoustics Engineering D6-8 MKII
Summary of Contents for Elite Acoustics Engineering D6-8 MKII
- Page 1 Digital Mixer & Effects, and Bluetooth ® Quick Guide Handbook version v1.01 WHAT IS IN THE BOX Your D6-8 MKII package contains the following: (1) Speaker (1) Quick Start Guide & Registration Card (1) AC to 12VDC Power Supply Adapter (1) Speaker Handle Grip The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing.
- Page 2 QUICK START MIC AND ACOUSTIC GUITAR In this example we connect an acoustic guitar to Chan 1, and a Mic to Chan 2. 1. Set Battery Switch to “Connect” 2. With “Speaker Volume” turned down, Turn “Power Switch” to “On” position. 3.
-
Page 3: Lcd Functions
LCD FUNCTIONS Main Ch56 Main Chorus Delay System Reverb Menu Buttons with LCD: Press any of the 6 menu buttons(black button located to the left and right of LCD) or 5 encoders(blue knobs located around LCD) to access and adjust features and settings. Most menus have several pages of options, which are adjusted by turning the corresponding encoder. - Page 4 System “System” : “Scenes” “System” : “Routing” Save and Recall up to 10 mixes i.e., Assign “Pre” or “Post” fader i.e., “Main scenes. Mix” Channel 1 through Channel 6, signals to the Aux Sends. You can also select either “Main” mix or “Aux” mix as the source for the XLR outputs.
-
Page 5: Reference Diagram
Ch 1 Util V dB V Hz “Encoder Select” (press to enable): “Encoder Select” (press to enable): “Ch 1 EQ” “Ch 1 UTIL Adjust the EQ settings for which ever Adjust Phase and Notch Filter level/ channel is selected. (Chan 1- 5/6) Freq. - Page 6 Refer to Reference Diagram in previous page for features listed below Power LED: BLUE [1]: Indicate unit is ON +48V LED [2]: Indicates Phantom Power is on Monitor Output Controls Speaker Volume [3]: Control speakers’ volume level Mono [4]: Changes speaker output to Mono sound Equalizer [5]: Adjust High, Mid, and Low Frequency response Peak LED [6]: RED indicate Signal Clip Signal LED [7]: GREEN indicate Signal Present...
-
Page 7: Bluetooth Function
Channel 5/6 Level [26]: Level control Left (Mono) [16]: 1/4” balance TRS input Right [17]: 1/4” balance TRS input Aux Send Level [18]: Aux output level control Aux Send 1 [19]: 1/4” balance TRS output Aux Send 2 [20]: 1/4” balance TRS output Monitor Output: Connect with extra speakers/monitors Monitor Right Output [21]: Connect to another speaker using 1/4”... - Page 8 Swtich in Disconnected position, but make sure to recharge unit monthly. • Keep unit in a cool, dry place away from extreme temperatures • Do not service, modify, or replace the battery • If the battery fails to charge, contact Elite Acoustics Engineering...
-
Page 9: System Specifications
SYSTEM SPECIFICATIONS • System Architecture : Ultra high-speed high-capacity DSP with lossless A/D and D/A conversion. Integrated Digital Mixer supports routing and seamless signal-level management for five fully configurable audio channels. Color Graphic LCD presents a highly intuitive GUI for settings, save &... - Page 10 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
