Elite Acoustics Engineering
M2-6 or M26U* Acoustic Amplifier with
4 Channels, Mixer, Effects,
and Bluetooth
®
Quick Guide Handbook

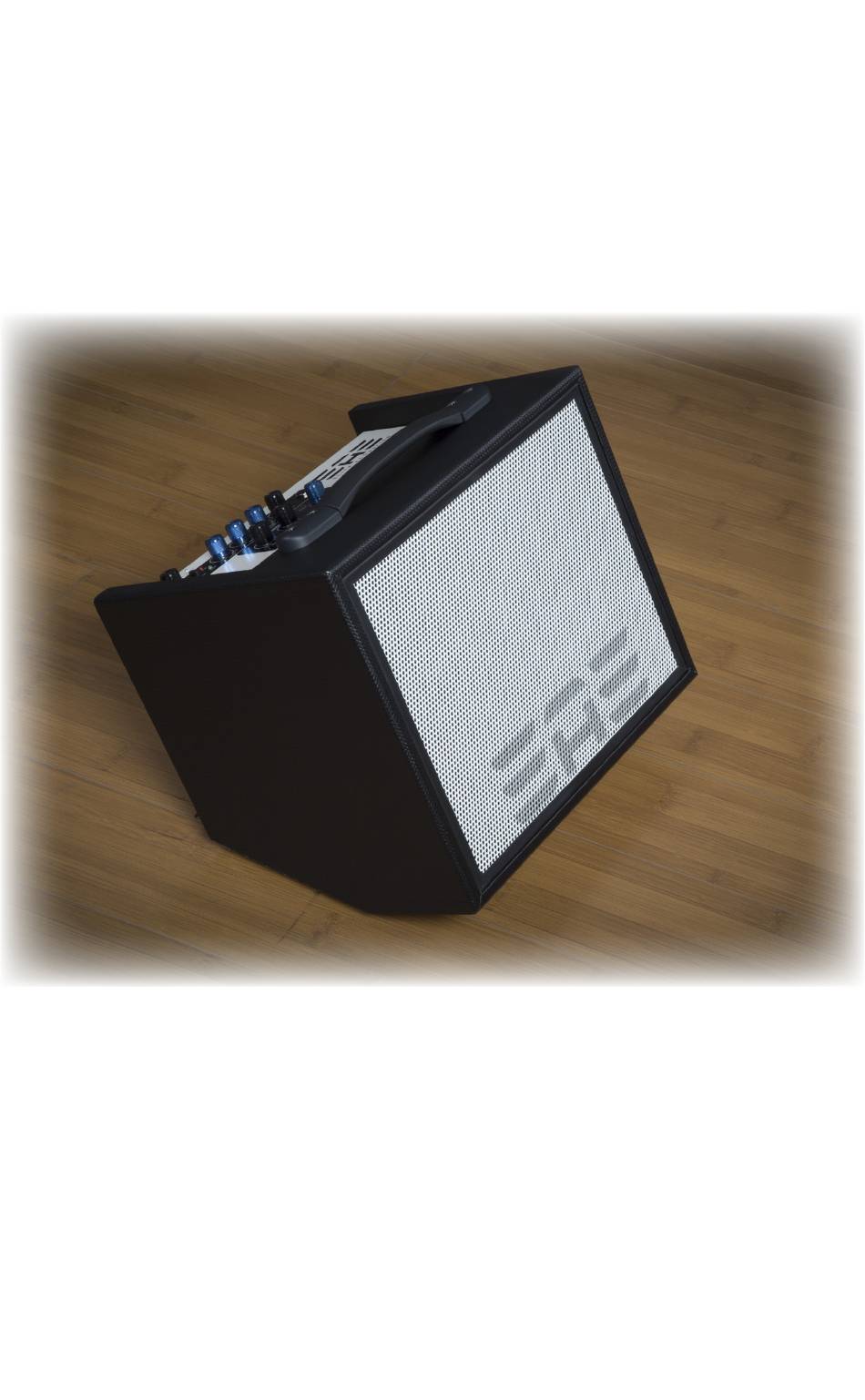

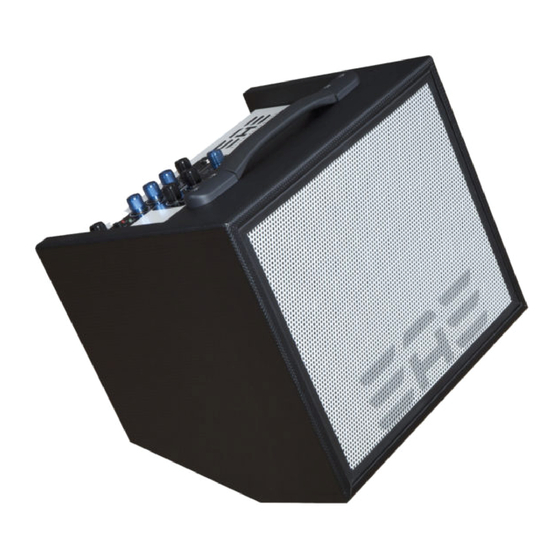

Elite Acoustics' M2-6 , M26U* Acoustic Amplifier with Mixer, Effects, and Bluetooth®
features an ergonomically sculpted cabinet for inclined-horizontal or vertical
placement; 6-1/2 inch woofer for superior bass response along with a 1 inch silk-
dome tweeter to deliver maximum clarity. M2-6 offers 4 input channels and 16
Digital Effects with a high-efficiency Class D bi-amp. The Master Section contains
a 3-band EQ, Monitor Volume and stereo AUX input with level control. Selectable
Direct Out or Main Outputs are provided for seamless system expansion.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate. Oct 2021.
Advertisement
Table of Contents
Related Manuals for Elite Acoustics Engineering M2-6
Summary of Contents for Elite Acoustics Engineering M2-6
- Page 1 6-1/2 inch woofer for superior bass response along with a 1 inch silk- dome tweeter to deliver maximum clarity. M2-6 offers 4 input channels and 16 Digital Effects with a high-efficiency Class D bi-amp. The Master Section contains a 3-band EQ, Monitor Volume and stereo AUX input with level control.
-
Page 2: What Is In The Box
WHAT IS IN THE BOX Your M2-6 or M26U package contains the following: (1) Speaker M2-6 or M26U* (1) 12V AC Power Supply Adapter Refer to Page 2 and 4, for the following Controls QUICK START Check that the Battery Switch [49] is set to the “Connect” position. (Battery Switch is a built in circuit breaker to preserve battery life.) -
Page 3: Top Panel
Signal AUX In Monitor Level High Level E L I T E A C O U S T I C S Clip M2-6 - Live-Performance Monitor RATE R1 R2 Flange with 4 Channels, Mixer, Effects, and Bluetooth ® Signal Mute... -
Page 4: Rear Panel Controls
REAR PANEL CONTROLS Channel 1 [14] Gain: Apply gain for level control [15] Mute: Mute Channel [16] EFX/AUX Send Level: Adjust the level to “send” out [17] EFX/AUX select: select whether you are sending to internal EFX or external AUX bus [18] PAD: fixed attenuation for “hot”... -
Page 5: Rear Panel
REAR PANEL Charge Only CHAN 1 CHAN 2 CHAN 3/4 TIP - EFX Bypass Charge Footswitch INSTR Battery Level Level Gain Notch Filter High Gain Serial Number Mute Mute Designed, Assembled, & Tested in California, USA EFX Level Power AUX Send DC INPUT Frequency Battery Switch... - Page 6 DIGITAL EFX 16 DIGITAL EFX PROGRAMS • • There are 16 total Digital EFX programs • R1 to R10 - REVERB • E1 and E2 - ECHO • ER1 and ER2 - Echo and Reverb • CHO - Chorus • FLange - Flanger •...
-
Page 7: System Specifications
Notch +/- 12dB @ 80Hz – 400 Hz (high-Q resonant) Battery: Orginal M2-6 units - Built-in SLA type, rechargeable [12V, 9Ah/20hr] SLA Typical recharge time ~ 20 hours Play time ~ 5 to 6 hours New Production - M26U* - units with Lithium Iron Phospate (LifePO4) battery. - Page 8 Swtich in Disconnected position, but make sure to recharge unit monthly. • Keep unit in a cool, dry place away from extreme temperatures • Do not service, modify, or replace the battery • If the battery fails to charge, contact Elite Acoustics Engineering...
- Page 9 ORIGINAL M2-6 SLA BATTERY & RECHARGING INFORMATION To fully charge a unit – a. Set Battery Switch to “CONNECT” b. Turn Power Switch OFF c. Connect “AC” adaptor to Power Jack. d. Blue “Charge” LED should be lit, Charge time can vary from 24 – 36 hours depending on model.
- Page 10 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
