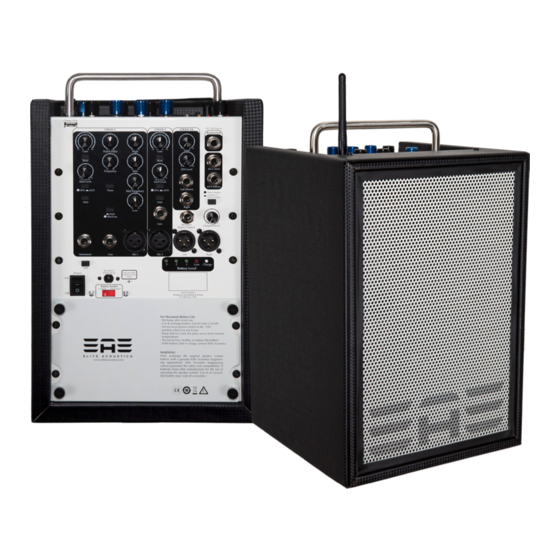

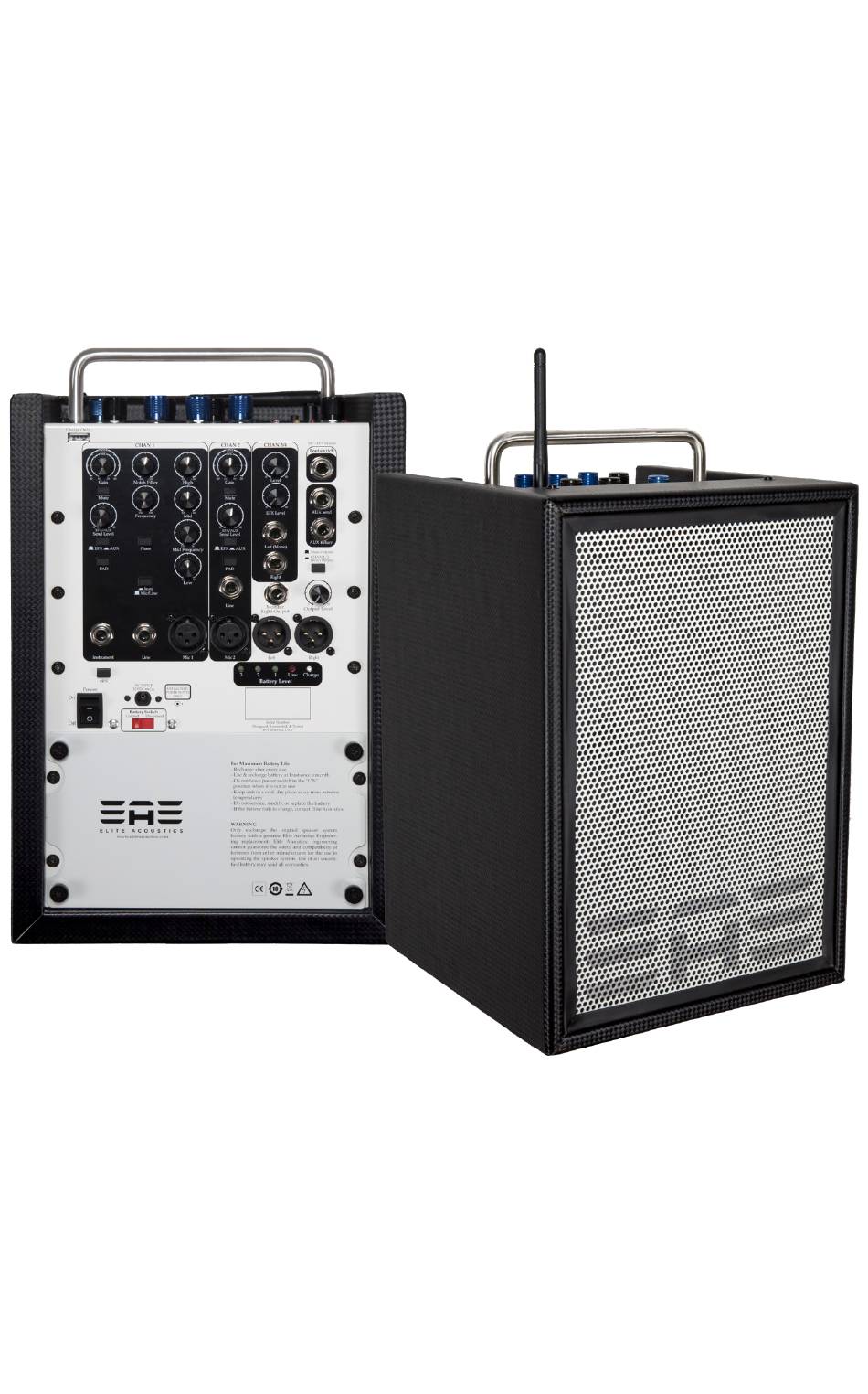

Elite Acoustics Engineering
A2-5 and A25U Acoustic Amplifier with
4 Channels, Mixer, Effects, Battery
Powered
and Bluetooth
®
Superb functionality and cordless portability provides unparalleled versatility.
A2's light weight yet fully featured Mix, Digital Effects, and Monitor sections
seamlessly combine to elevate your performance. A2 offers extensive input
EQ and an adjustable Notch Filter to tame Feedback or add that final degree of
clarity when needed. An all-wood cabinet combined with a 5-1/4" high-sensitivity
woofer and 1" silk-dome tweeter deliver full frequency clarity with impressive
bass response.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate. Oct, 2021.
Advertisement
Table of Contents
Related Manuals for Elite Acoustics Engineering A2-5
Summary of Contents for Elite Acoustics Engineering A2-5
- Page 1 The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Elite Acoustics Engineering, Inc is under license NOTE: Due to continuous development and improvements of our products, features and specifications are subject to...
-
Page 2: What Is In The Box
WHAT IS IN THE BOX Your A2-5 or A25U package contains the following: (1) Speaker (1) 12V AC Power Supply Adapter Refer to Page 2 and 4, for the following Controls QUICK START Check that the Battery Switch [49] is set to the “Connect” position. (Battery Switch is a built in circuit breaker to preserve battery life.) -
Page 3: Top Panel
E L I T E E L I T E A C O U S T I C S A C O U S T I C S A2-5 - Live-Performance Studio Monitor A2-5 - Live-Performance Studio Monitor On/Off : Hold On/Off : Hold... -
Page 4: Rear Panel Controls
REAR PANEL CONTROLS Channel 1 [14] Gain: Apply gain for level control [15] Mute: Mute Channel [16] EFX/AUX Send Level: Adjust the level to “send” out [17] EFX/AUX select: select whether you are sending to internal EFX or external AUX bus [18] PAD: fixed attenuation for “hot”... -
Page 5: Rear Panel
REAR PANEL Charge Only Charge Only CHAN 1 CHAN 1 CHAN 2 CHAN 2 CHAN 3/4 CHAN 3/4 TIP - EFX Bypass TIP - EFX Bypass Footswitch Footswitch INSTR INSTR Level Level Gain Gain Gain Gain Notch Filter Notch Filter High High Mute... - Page 6 DIGITAL EFX 16 DIGITAL EFX PROGRAMS • • There are 16 total Digital EFX programs • R1 to R10 - REVERB • E1 and E2 - ECHO • ER1 and ER2 - Echo and Reverb • CHO - Chorus • FLange - Flanger •...
- Page 7 CONNECTING TO ANOTHER SPEAKER Charge Only Charge Only TIP - EFX Bypass TIP - EFX Bypass CHAN 1 CHAN 2 CHAN 3/4 CHAN 1 CHAN 2 CHAN 3/4 Footswitch Footswitch INSTR INSTR Level Level Gain Gain Notch Filter High Gain Notch Filter High Gain...
- Page 8 Notch to cutout the LF tone. After all, Live Sound is an Art and when it’s all said and done tone is King. ORIGINAL A2-5 SLA BATTERY & RECHARGING INFORMATION To fully charge a unit – a. Set Battery Switch to “CONNECT”...
- Page 9 Swtich in Disconnected position, but make sure to recharge unit monthly. • Keep unit in a cool, dry place away from extreme temperatures • Do not service, modify, or replace the battery • If the battery fails to charge, contact Elite Acoustics Engineering...
-
Page 10: System Specifications
SYSTEM SPECIFICATIONS Speakers: Woofer = 5 1/4” Tweeter = 1” Silk-Dome Optimized front ports for extended low-frequency response Frequency response 70Hz - 20k Hz 103 dB SPL Amplifier: Ultra High-Efficiency Class D 30W Bi-AMP EQ Controls: +/- 12dB @ 50Hz (shelving) +/- 12dB @ 200Hz –... - Page 11 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
