Summary of Contents for Olimpia splendid PROCOOL 18P

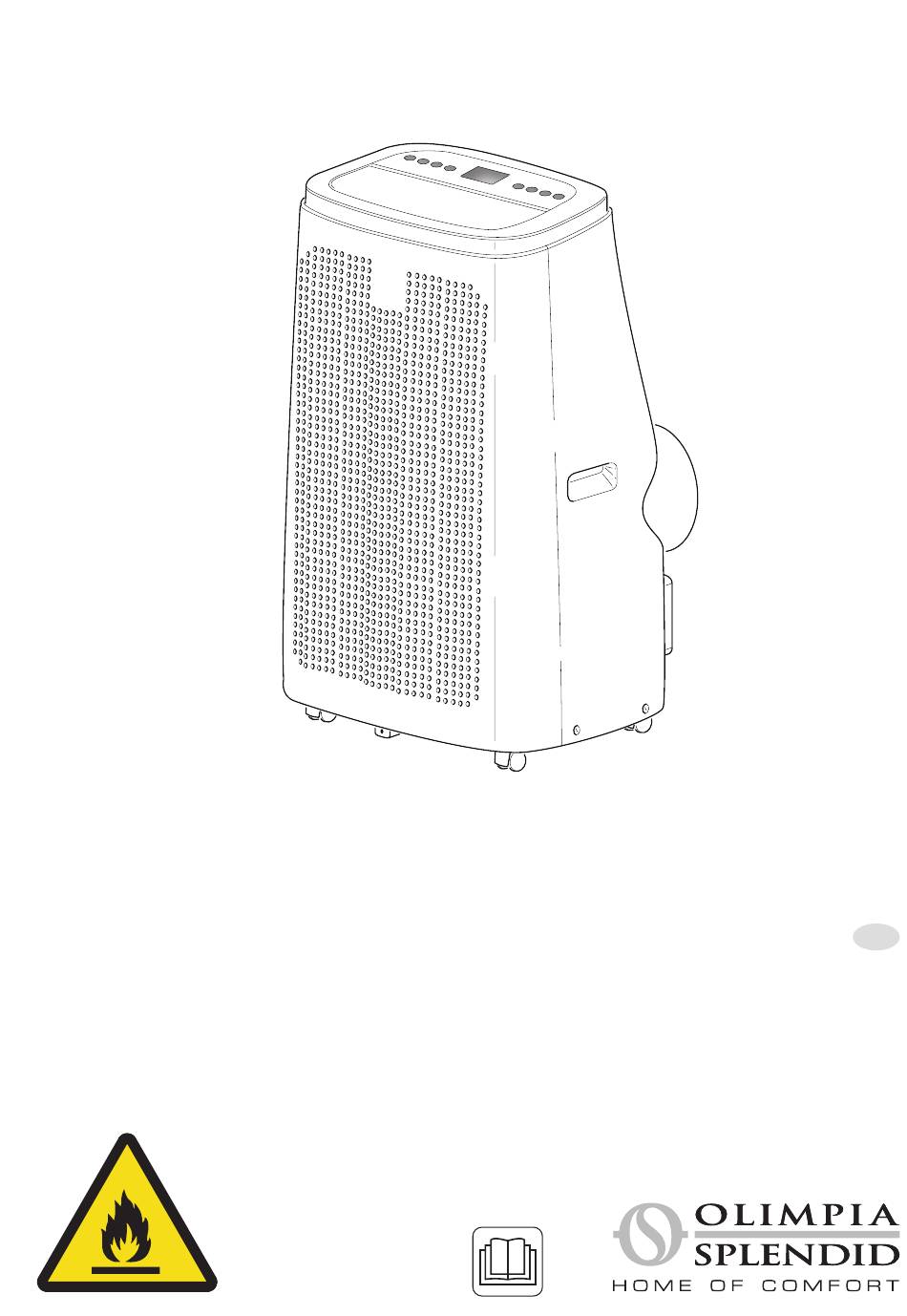

- Page 1 PROCOOL INSTRUCTION FOR USE AND MAINTENANCE Caution: risk of fire...
- Page 2 1. The appliance contains R290 gas (A3 flammability classification) 2. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. The appliance must be installed, used and stored in a room with a floor surface in compliance with the minimum sizes indicated in the chart at page 10. This appliance contains a quantity of refrigerant gas R290 equal to the one indicated in the data label located on the appliance. 3. This a ppliance c an b e u sed b y c hildren a ged f rom 8 y ears a nd a bove a nd p erson w ith r educed p hysical, s ensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be...
-
Page 3: Table Of Contents
4.1.c - Clean the upper filter screen frame ....................18 4.2 - MAINTENANCE ..........................18 4.2.a - Drainage Instructions ........................18 4.2.b - Unit Storage ..........................19 5 - TECHNICAL DATA ........................19 6 - WIRING DIAGRAM ........................19 7 - TROUBLE SHOOTING ......................20 EN - 1 PROCOOL 18P... -
Page 4: Warnings
DISPOSAL Treatment: Don’t put the abandoned machine with other unsorted waste together. Such waste shall be placed separately for other special use. WARNINGS 0.1 - GENERAL INFORMATION First of all, we would like to thank you for choosing our appliance. Please refer to detailed information regarding product installation. -
Page 5: General Warnings
Safety Regulations in force in the country of installation. 11. In case of replacement of parts, use only original OLIMPIA SPLENDID parts. 12. If the unit is unused for a long period, or no-one uses the climate-controlled room, it is recommended to disconnect the electric power supply in order to prevent accidents. - Page 6 15. In case of functioning anomalies (for example: abnormal noise, bad smell, smoke, abnormal increase in temperature, electrical dispersions, etc.), immediately switch off the appliance and disconnect the plug from the power socket. For repair work contact solely the technical service centres authorised by the manufacturer and ask for original spare parts to be used.
-
Page 7: Proper Use
• This appliance is only intended for a domestic use or similar. • An improper use of the appliance with possible damages caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility. 0.5 - HAZARDOUS ZONES • The climate controllers must not be installed in environments with the presence of inflammable gases, explosive gases, in very humid environments (laundries, greenhouses, etc.), or in places with other machines that generate a strong heat... -
Page 8: Warnings For R290 Refrigerant Gas
0.6 - WARNINGS FOR R290 REFRIGERANT GAS 1. THE APPLIANCE CONTAINS R290 GAS (FLAMMABILITY CLASSIFICA- TION A3). 2. THE APPLIANCE SHALL BE STORED IN A WELL-VENTILATED AREA WHERE THE ROOM SIZE CORRESPONDS TO THE ROOM AREA AS SPECIFIED FOR OPERATION. 3. - Page 9 Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material. EN - 7 PROCOOL 18P...
- Page 10 d) Checking for presence of refrigerant The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e.
- Page 11 Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. EN - 9 PROCOOL 18P...
- Page 12 26. DETECTION OF FLAMMABLE REFRIGERANTS Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. 27. LEAK DETECTION METHODS The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.
- Page 13 Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked. EN - 11 PROCOOL 18P...
- Page 14 31. LABELLING Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. 32. RECOVERY When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
-
Page 15: Features And Components
Continuos drainage hole Use and maintenance manual Air vent Drainage hole Power cord IN S T R U C T IO Power cord IN T C au ti o n plug CON filter housing EN - 13 PROCOOL 18P... -
Page 16: Installation
2 - INSTALLATION 2.1 - TRANSPORTATION, MARKING AND STORAGE CAUTION • Transport of equipment containing flammable refrigerants. Compliance with the transport regulations. • Disposal of equipment using flammable refrigerants. Compliance with national regulations. • Marking of equipment using signs. Compliance with local regulations. • Storage of equipment/appliances. The storage of equipment should be in accordance with the manufac- turer’s instructions. - Page 17 Install the window sealing plate assembly (fig.4): The flat end of the exhaust pipe joints must be snapped into place. Slider a. The pipe cannot be bent greater than 45 degrees. b. Keep the ventilation of the exhaust pipe not blocked. EN - 15 PROCOOL 18P...
-
Page 18: Use Of The Appliance
3 - USE OF THE APPLIANCE 3.1 - Control panel operation instructions (Fig.5) MODE Swing Timer Display DOWN Mode Sleep Power button button button button windows button button button button • SWING Button: The SWING function only works once the unit is turned on. •... -
Page 19: Remote Control
3.3.d - Compressor Protection Function • To increase the service life of the compressor, it has a 3-minute startup delay protection function after the compressor is turned off. 4 - MAINTENANCE AND CLEANING Before cleaning and maintenance, turn off and unplug the machine. EN - 17 PROCOOL 18P... -
Page 20: Cleaning
4.1 - CLEANING 4.1.a - Clean the surface a. Clean with surface of ma- chine with a wet soft cloth. Don’t use chemicals, such as benzene, alco- hol, gasoline, etc; other- wise, the surface of the air conditioning will be damaged. 4.1.b - Clean the filter screen If the filter becomes clogged Warm Water the portable air conditioner will 40°C... -
Page 21: B - Unit Storage
The maximum amount of refrigerant is .. 300 grams 6 - WIRING DIAGRAM The specific technical parameters of the machine shall be subject to the nameplate on the product. Schematic diagram for air conditioning: Capillary Condens Compresso Evaporat EN - 19 PROCOOL 18P... -
Page 22: Trouble Shooting
7 - TROUBLE SHOOTING Problems Reasons Solutions Check to make sure the unit is There is no electricity. plugged in and the wall socket is in the on position. The overflow indicator displays Discharge the water inside. “FL”. The air conditioning does not Recommend to use the portable The ambient temperature is too work. - Page 24 Our goods come with a guarantee that cannot be excluded under the Australia Consumer law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
