Summary of Contents for MSI MAG 32C6

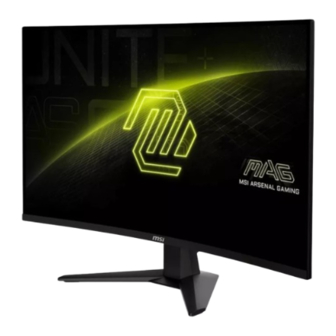

- Page 1 MAG Series LCD Monitor MAG 32C6 (3DD4) MAG 32C6X (3DD4) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 6 Monitor Overview ....................7 Connecting the Monitor to PC ................9 OSD Setup ........................10 Navi Key ........................ 10 Hot Key ........................10 OSD Menus........................ -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor MAG 32C6 MAG 32C6X Documentation Quick Start Guide Accessories... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place. 2. Align and gently push the cable organizer towards the stand until it locks in place. 3. - Page 5 ⚠ Important Place the monitor on a soft, protected surface to avoid scratching the display panel. ∙ Do not use any sharp objects on the panel. ∙ The groove for installing the stand bracket can also be used for wall mount. Please ∙...
-
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. -5° 20°... -
Page 7: Monitor Overview
Monitor Overview MAG 32C6 MAG 32C6X... - Page 8 Supports HDMI™ CEC, 1920x1080@240Hz as specified in HDMI™ 2.0b. HDMI™ Connector (for MAG 32C6X) Supports 1920x1080@240Hz as specified in HDMI™ 2.0b. DisplayPort (for MAG 32C6) Supports 1920x1080@180Hz as specified in DisplayPort 1.4. DisplayPort (for MAG 32C6X) Supports 1920x1080@250Hz as specified in DisplayPort 1.4.
-
Page 9: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5. -
Page 10: Osd Setup
OSD Setup ⚠ This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ∙... -
Page 11: Osd Menus
OSD Menus MAG 32C6 MAG 32C6X ⚠ Important The following settings will be grayed out when HDR signals are received: ∙ Night Vision ∙ Brightness ∙ MPRT ∙ Contrast ∙ Low Blue Light ∙ Color Temperature ∙ HDCR ∙ AI Vision... -
Page 12: Gaming
Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙ Use Up or Down Button to select and preview mode effects. ∙ Press the OK Button to confirm and apply Racing your mode type. Night Vision ∙ This function optimizes background brightness and is recommended for FPS Normal games. - Page 13 15:00 00:01 ~ 99:59 30:00 45:00 60:00 Screen Assistance None ∙ Users can adjust Screen Assistance in any mode. (for MAG 32C6) Screen Assistance Icon None (for MAG 32C6X) Position Reset Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ Activating Adaptive-Sync will affect:...
-
Page 14: Professional
Professional 1st Level Menu 2nd Level Menu Description Pro Mode ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the OK Button to confirm and apply your mode Anti-Blue type. Movie Office sRGB Low Blue Light ∙... -
Page 15: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙ Sharpness improves clarity and details of images. Color Temperature Cool ∙... -
Page 16: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Screen Assistance Alarm Clock Input Source PIP/PBP (for MAG 32C6X) Refresh Rate Info. On Screen Night Vision Settings 1st Level Menu... - Page 17 1st Level Menu 2nd/3rd Level Menu Description Info. On Screen ∙ The information of the monitor status will be shown on the right side of the screen. DP OverClocking ∙ The information of the monitor status will be shown on the right side of the screen. (for MAG 32C6X) HDMI™...
-
Page 18: Specifications
Specifications Monitor MAG 32C6 MAG 32C6X Size 31.5 inch Curvature Curve 1500R Panel Type Rapid VA Resolution 1920x1080 (FHD) Aspect Ratio 16:9 Brightness ∙ Typical SDR: 250 nits ∙ Peak HDR: 250 nits Contrast Ratio 3000:1 180Hz 250Hz Refresh Rate... - Page 19 Monitor MAG 32C6 MAG 32C6X Environment Operating ∙ Temperature: 0℃ to 40℃ ∙ Humidity: 20% to 90%, non-condensing ∙ Altitude: 0 ~ 5000m Storage ∙ Temperature: -20℃ to 60℃ ∙ Humidity: 10% to 90%, non-condensing * Based on CIE1976 test standards.
-
Page 20: Preset Display Modes
@75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD 1920x1080 @60Hz @85Hz (for MAG 32C6X) @120Hz (for MAG 32C6) @144Hz (for MAG 32C6) @165Hz @180Hz (for MAG 32C6) @240Hz (for MAG 32C6X) -
Page 21: Dp Overclocking Mode
MAG 32C6 MAG 32C6X Standard Resolution HDMI™ Video Timing 480P Resolution 576P 720P 1080P @50Hz @60Hz @120Hz HDMI™ VRR Function DP OverClocking Mode MAG 32C6X Standard Resolution HDMI™ 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768... -
Page 22: Pip Mode (Not Support Hdr)
MAG 32C6X Standard Resolution HDMI™ Video Timing 480P Resolution 576P 720P 1080P @50Hz @60Hz @120Hz PIP Mode (Not Support HDR) MAG 32C6X Standard Resolution HDMI™ 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz... -
Page 23: Pbp Mode (Not Support Hdr)
PBP Mode (Not Support HDR) MAG 32C6X Standard Resolution HDMI™ 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Video Timing 480P Resolution 576P 720P PBP Full 960x1080... -
Page 24: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 25: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 26 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
-
Page 27: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 28: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 29 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 30 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
