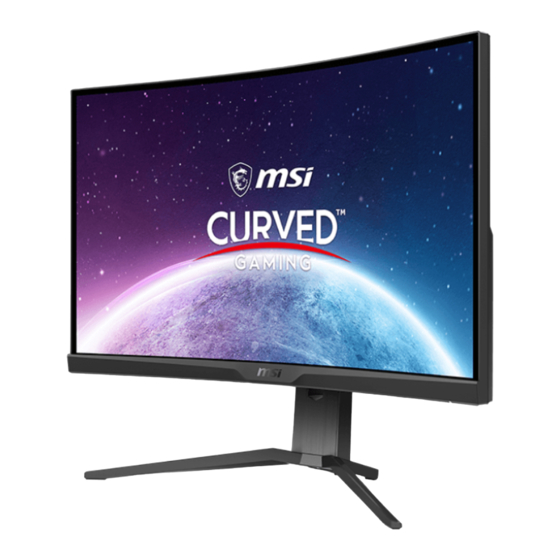

- Page 1 MAG Series LCD Monitor MAG 275CQRF-QD (3CD2) MAG 325CQRF-QD (3DC6) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................7 Connecting the Monitor to PC ................10 OSD Setup ........................11 Navi Key ........................ 11 Hot Key ........................11 OSD Menus........................ -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents MAG 275CQRF-QD Monitor MAG 325CQRF-QD Documentation Quick Start Guide... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. MAG 275CQRF-QD -5° 20° 130 mm Getting Started... - Page 6 MAG 325CQRF-QD -5° 20° 100 mm Getting Started...
-
Page 7: Monitor Overview
Monitor Overview 11 12 13 Getting Started... - Page 8 Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Macro Key To activate OSD Application. Navi Key Power Button Cable Routing Hole Kensington Lock Power Jack...
- Page 9 USB 2.0 Type-B Upstream Port For USB Upstream Cable. ⚠ To Monitor Important Check the package for USB Upstream Cable and connect it to the PC and monitor. Once this cable is connected, the USB Type-A To PC Downstream Ports on the monitor will be ready for use.
-
Page 10: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. -
Page 11: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ∙... -
Page 12: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: Night Vision Brightness ∙ ∙ MPRT Contrast ∙ ∙ Low Blue Light Color Temperature ∙ ∙ HDCR ∙ Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode Premium Color... - Page 13 1st Level Menu 2nd/3rd Level Menu Description Night Vision ∙ This function optimizes background brightness and is recommended for Normal FPS games. Strong Strongest A.I. Response Time Normal ∙ Setting to Fastest will reach the shortest response time and help Fast improve blurred images when playing very fast games.
- Page 14 1st Level Menu 2nd/3rd Level Menu Description Alarm Clock Location Left Top ∙ After setting the time, press the OK Button to activate the timer. Right Top ∙ Users have to manually restore their Left Bottom preset Alarm Clock after any AC power loss and reconnection.
-
Page 15: Professional
Professional 1st Level Menu 2nd Level Menu Description Pro Mode ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the OK Button to confirm and apply Anti-Blue your mode type. Movie Office sRGB Adobe RGB Display P3 Low Blue Light ∙... -
Page 16: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙ Sharpness improves clarity and details of images. Color Cool ∙... -
Page 17: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Smart Crosshair Alarm Clock Input Source Refresh Rate Info. On Screen Night Vision Setting 1st Level Menu 2nd Level Menu Description... - Page 18 1st Level Menu 2nd Level Menu Description OSD Time Out 5~30s ∙ Users can adjust OSD Time Out in any mode. RGB LED ∙ Users can adjust RGB LED to ON or OFF. Power Button ∙ When set to OFF, users can press the power button to turn off the monitor.
-
Page 19: Specifications
Specifications Monitor MAG 275CQRF-QD MAG 325CQRF-QD 27 inch 31.5 inch Size Curvature 1000R Panel Type Rapid VA 2560 x 1440 Resolution 16:9 Aspect Ratio 300 nits (typ.) Brightness ∙ Brightness 0~75%: ∙ 5V/3A 5V/3A USB Type-C Power ∙ Brightness 76~100%:... - Page 20 Monitor MAG 275CQRF-QD MAG 325CQRF-QD Adjustment (Height) 0 ~ 130mm 0 ~ 100mm Adjustment (Tilt) -5° ~ 20° Kensington Lock ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm •...
-
Page 21: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Mode Standard Resolution HDMI™ USB-C 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+... - Page 22 Standard Mode Standard Resolution HDMI™ USB-C Video Timing 480P Resolution 576P 720P 1080P @60Hz 1080P @120Hz 2160P @30Hz 2160P @50Hz 2160P @60Hz Screen Size 16:10 without HDR Standard Resolution HDMI™ USB-C 2560x1600 @60Hz @120Hz @144Hz * Users have to set DP OverClocking to ON. This is the highest refresh rate supported by DP OverClocking.
-
Page 23: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 24: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 25 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 26: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 27: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 28 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 29 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
