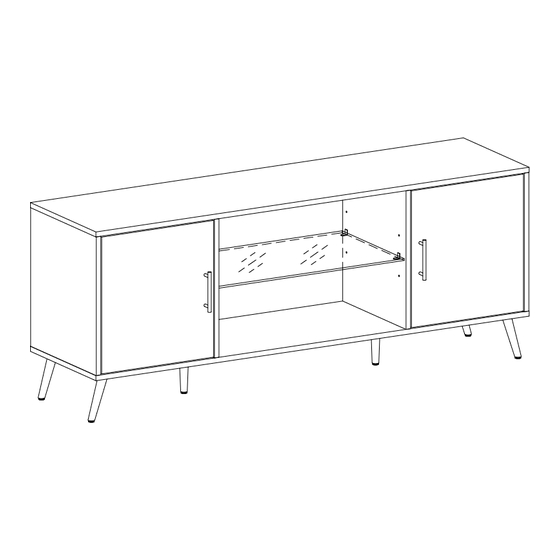

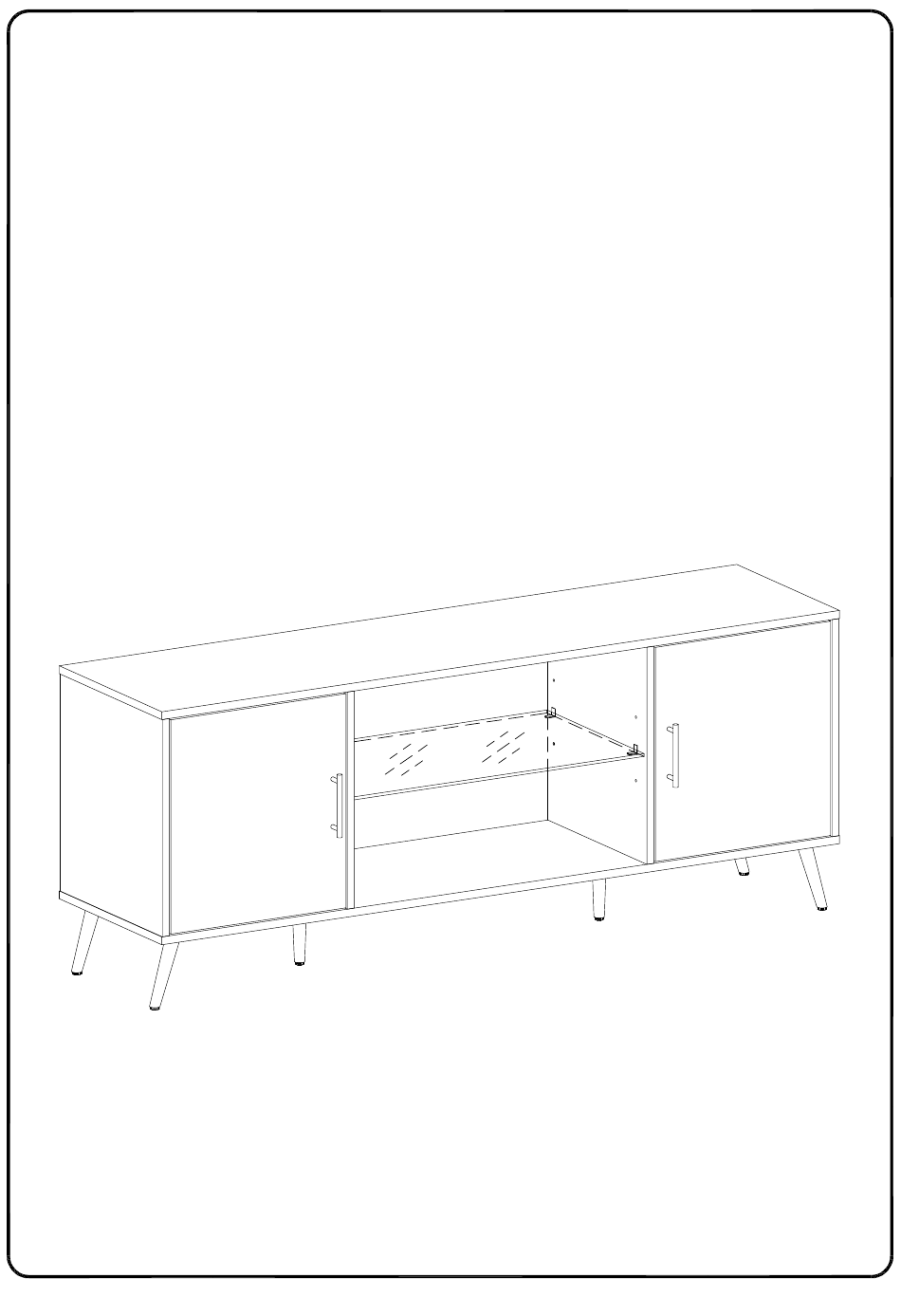

- Page 1 Item # : W60NOR2D Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 04/23/2018 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
-
Page 2: General Assembly Guidelines
. Wipe away excess glue immediately. A Phillips head screwdriver is required for the assembly of this product . VII. Power tools should not be used to assemble this product . Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 3: Parts List
Parts List Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 4: Hardware List
Hex Key Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©... - Page 5 Step 1 Attach cam bolt (B) to part (1) with screwdriver. Step 2 Insert wooden dowel (A) into part (3,4,5,6). Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 6 Attach part (2) to part (3,4,5,6) using bolt (D) with hex key (W). Step 4 Attach part (13,14) to part (2) using bolt (V) with hex key (W). Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 7 Slide back panel (9,10) into grooves as per diagram. Step 6 Attach part (1) to part (3,4,5,6), then insert and secure cam lock (C) to part (3,4,5,6) to lock it. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 8 Step 7 Attach plastic wedge (S) to part (9,10) using screw (R) with screwdriver. Step 8 Place sticker (U) over holes as per diagram. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 9 Step 9 Attach door stopper (G) to part (1) using screw (H) with screwdriver. Step 10 Insert shelf support pin (E) into part (3,4,5,6). Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 10 Attach handle (P) to part (11,12) using handle bolt (Q) with screwdriver. Attach door hinge (J.K) to part (11,12) using screw (M) with screwdriver. Attach bolt (N) to part (11,12) with screwdriver. P.10 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 11 (L) on part (1), then slide the door (11) into the bottom hinge (K). Secure door by tightening door hinge (K) using screws (M) with equal pressure. P.11 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 12 (L) on part (1), then slide the door (12) into the bottom hinge (J). Secure door by tightening door hinge (J) using screws (M) with equal pressure. Step 16 F x4 Insert glass holder (F) into part (4,5). P.12 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 13 Step 17 Place glass shelf (8) on top of glass holder carefully. Step 18 Final Assembly P.13 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
