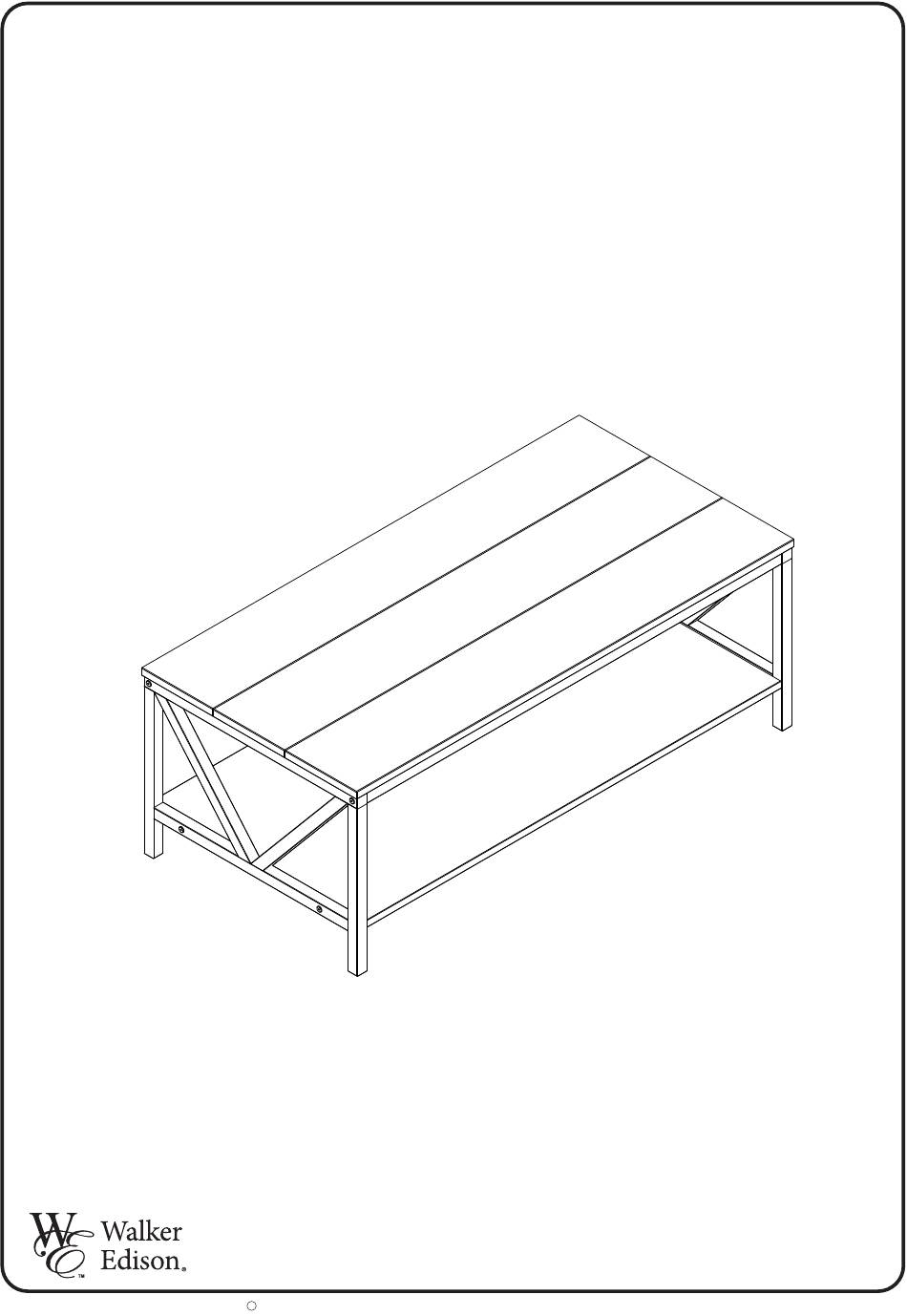

Item #: AF48NATCT
Assembly Instructions
Please visit our website for the most current instructions, assembly tips report damage,
or request parts. www.walkeredison.com
Revised 05/2019
Copyright
2018, by Walker Edison Furniture Co., LLC. All rights reserved.
P.1
c
Advertisement
Related Manuals for Walker Edison AF48NATCT
Summary of Contents for Walker Edison AF48NATCT
- Page 1 Item #: AF48NATCT Assembly Instructions Please visit our website for the most current instructions, assembly tips report damage, or request parts. www.walkeredison.com Revised 05/2019 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 4: Hardware List
Hardware List 08 pcs 8.0 x 30 mm Wood dowel 7.0 x 60 mm 08 pcs Bolt Screw 4.0 x 30 mm 18 pcs Hex key 01 pcs Mallet or hammer recommended for assembly (not included) - Page 5 Step 1 Insert wood dowel ( A ) into parts ( 1 ) and ( 2 ). Step 2 Attach part ( 2 ) to part ( 1 ) using screw ( C ). Complete this step twice.
- Page 6 Step 3 Attach part ( 1 ) to part ( 3 ) using bolt ( B ) and hex key ( D ). Complete this step twice. Step 4 Attach part ( 4 ) to part ( 3 ) using bolt ( B ) and hex key ( I ).
- Page 7 Step 5 Place leg frame onto table top. Secure leg frame onto table top using screw ( C ) and a screwdriver. (8x) (2x) Step 6 Final Assembly.
