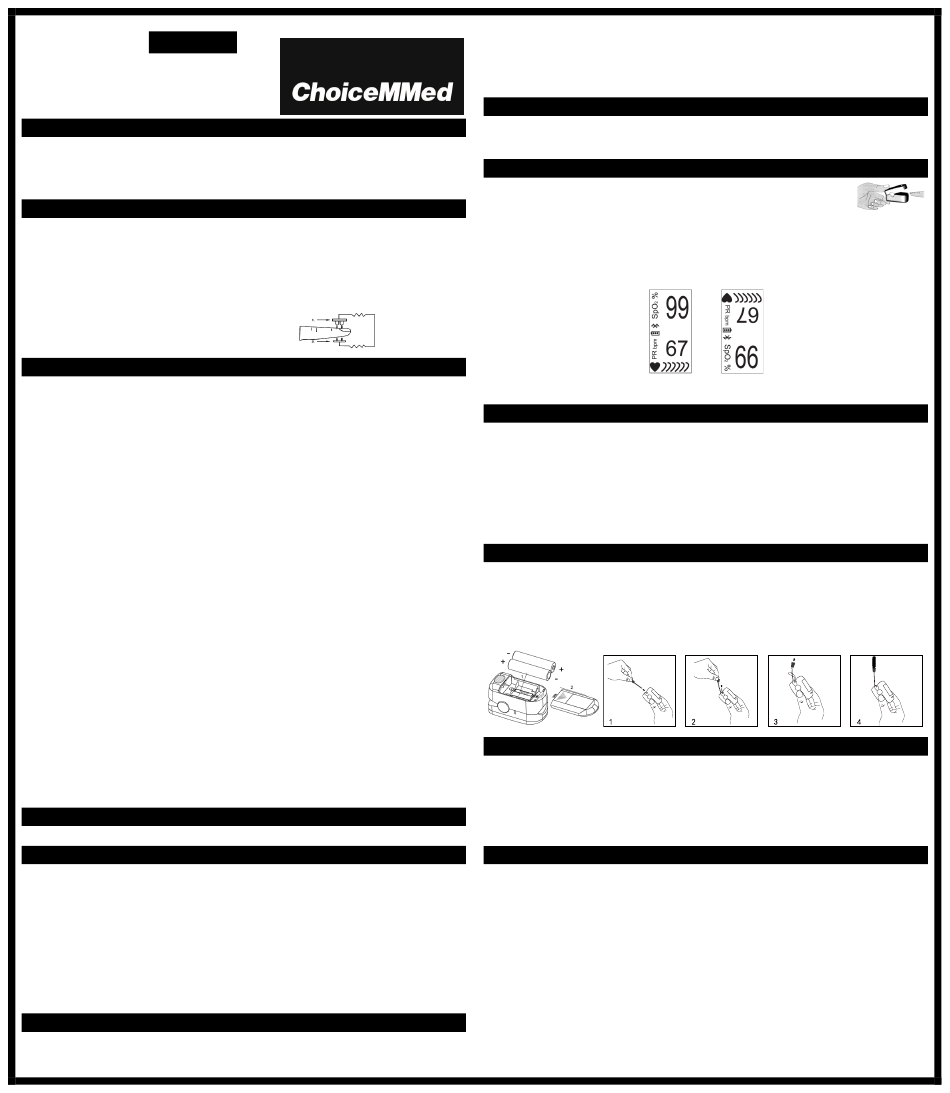

ChoiceMMed MD300C208 User Manual

ChoiceMMed MD300C208 User Manual

Fingertip pulse oximeter

Advertisement

Quick Links

Fingertip
MD300C208
Pulse Oximeter
USER MANUAL
Ver2.0
General Description
Oxygen binds to hemoglobin in red blood cells when moving through the lungs. It is transported throughout the
body as arterial blood. A pulse oximeter uses two frequencies of light (red and infrared) to determine the
percentage (%) of hemoglobin in the blood that is saturated with oxygen. The percentage is called blood oxygen
saturation, or SpO
. A pulse oximeter also measures and displays the pulse rate at the same time it measures the
2
SpO
level.
2
Measurement Principle
Principle of the oximeter is as follows: The pulse oximeter works by applying a sensor to a pulsating arteriolar
vascular bed. The sensor contains a dual light source and photo detector. The one wavelength of light source is
660nm, which is red light; the other is 905nm, which is infrared-red light. Skin, bone, tissue and venous vessels
normally absorb a constant amount of light over time. The photo detector in finger sensor collects and converts
the light into electronic signal which is proportional to the light intensity. The arteriolar bed normally pulsates and
absorbs variable amounts of light during systole and diastole, as blood volume increases and decreases. The
ratio of light absorbed at systole and diastole is translated into an oxygen saturation measurement. This
measurement is referred to as SpO
.
2
Diagram of Operation Principle
1. Red and Infrared-ray Emission Tube
2. Red and Infrared-ray Receipt Tube
Precautions For Use
1.
Before use, carefully read the manual.
2.
Operation of the fingertip pulse oximeter may be affected by the use of an electrosurgical unit (ESU).
3.
Pulse Oximeters require sufficient blood flow to obtain proper readings. Poor blood circulation can result in
inaccurate readings. If your hands are cold or you have poor circulation, warm your hands by rubbing them
together or use another method before attempting to obtain a reading. A tourniquet, blood pressure cuff or
other blood flow hindrances may also result in inaccurate readings.
4.
Do not use the fingertip pulse oximeter in an MRI or CT environment.
5.
Do not use the fingertip pulse oximeter in situations where alarms are required. The device has no alarms.
It is not for continuous monitoring.
6.
Do not use the fingertip pulse oximeter in an explosive atmosphere.
7.
The fingertip pulse oximeter is intended only as an adjunct in patient assessment. It must be used in
conjunction with other methods of assessing clinical signs and symptoms.
8.
In order to ensure correct sensor alignment and skin integrity, the maximum application time at a single site
for our device should be less than half an hour.
9.
Do not sterilize the device using autoclaving, ethylene oxide sterilizing, or immersing the device in liquid.
The device is not intended for sterilization.
10. Follow local ordinances and recycling instructions regarding disposal or recycling of the device and device
components, including batteries.
11. This equipment complies with IEC 60601-1-2: 2014 for electromagnetic compatibility for medical electrical
equipment and/or systems. However, because of the proliferation of radio-frequency transmitting
equipment and other sources of electrical noise in healthcare and other environments, it is possible that
high levels of such interference due to close proximity or strength of a source might disrupt the performance
of this device.
12. Portable and mobile RF communications equipment can affect medical electrical equipment.
13. This equipment is not intended for use during patient transport outside the healthcare facility
14. This equipment should not be used adjacent to or stacked with other equipment.
15. It may be unsafe to:
—use accessories、detachable parts and materials not described in the instructions for use.
—interconnect this equipment with other equipment not described in the instructions for use.
—disassemble, repair or modify the equipment.
16. These materials that contact with the patient's skin contain medical silicone and ABS plastic enclosure are
all pass the ISO10993-5 Tests for invitro cytotoxicity and ISO10993-10 Tests for irritation and delayed-type
hypersensitivity.
17. When the signal is not stable, the reading may inaccurate. Please do not reference.
Rx only: "Caution: Federal law (USA) restricts this device to sale by or on the order of a licensed
practitioner."
Contraindication
It is not for continuous monitoring.
Inaccurate measurements may be caused by
1.
Significant levels of dysfunctional hemoglobin (such as carbonyl - hemoglobin or methemoglobin).
2.
Intravascular dyes such as indocyanine green or methylene blue.
3.
High ambient light. Shield the sensor area if necessary.
4.
Excessive patient movement.
5.
High-frequency electrosurgical interference and defibrillators.
6.
Venous pulsations.
7.
Placement of a sensor on an extremity with a blood pressure cuff, arterial catheter, or intravascular line.
8.
The patient has hypotension, severe vasoconstriction, severe anemia, or hypothermia.
9.
The patient is in cardiac arrest or is in shock.
10.
Fingernail polish or false fingernails.
11.
Weak pulse quality (low perfusion).
12.
Low hemoglobin.
Product Features
1
Simple to operate and convenient to carry.
2
Small volume, light weight and low power consumption.
3
Dual color OLED
4
2 display direction.
5
2pcs AAA-size alkaline batteries; battery-low indicator.
6
Wireless Bluetooth for data transmission.
7
When no or low signal is detected, the pulse oximeter will power off automatically
8
Compatible with iOS or Android App
Intended Use
The Fingertip Pulse Oximeter is a handheld non-invasive device intended for spot-checking of oxygen saturation
of arterial hemoglobin (SpO
) and Pulse Rate of adult, adolescent and child patients in hospitals, hospital-type
2
facilities and homecare.
Operation Instructions
1
Install two AAA batteries according to the Battery Installation instructions.
2
Place one of your fingers into the rubber opening of the pulse oximeter.
3
Press the switch button one time on front panel to turn the pulse oximeter on.
4
Keep your hands still for the reading. Do not shake your finger during the test. It is recommended that you
do not move your body while taking a reading.
5
Read the data from the display screen
After turning on the Oximeter, each time you press the power switch, the Oximeter will switch to another
display mode. There are 2 display directions shown as follows:
Notes:
1.
Short press the power button to switch the screen display orientation.
Data Transmission
1.
Turn on the device, the Bluetooth icon is flashing. After sync successfully, the Bluetooth icon is light on. Or
else the Bluetooth icon still in the flashing status. When you turn off the device, the Bluetooth will break
automatically.
2.
The current measurement will transmit to the App automatically. After data transmission successfully, the
measurement flashing for 8s, then the device will power off automatically power off. If there is no Bluetooth
connection over 1min, the device will power off automatically and the data will not be stored.
3.
If there is no digit appear, the device will power off automatically.
Notes:
1.
With the Bluetooth 4.0 to transmit the data to App.
2.
The transmission distance is 10m at most.
Battery Installation
1.
Install two AAA batteries into the battery compartment. Match the plus (+) and minus (-) signs in the
compartment. If the polarities are not matched, damage may be caused to the oximeter.
2.
Slide the battery door cover horizontally along the arrow shown as the picture.
Notes:
Please remove the batteries if the pulse oximeter will not be used for long periods of time.
Please replace the battery when the power indicator starting flickering.
Using the Lanyard
1.
Thread thinner end of the lanyard through the hanging hole.
2.
Thread thicker end of the lanyard through the threaded end before pulling it tightly.
Warnings!
Keep the oximeter away from young children. Small items such as the battery door, battery, and lanyard are
choking hazards.
Do not hang the lanyard from the device's electrical wire.
Please notice that the lanyard which is tied to the oximeter may cause strangulation due to excessive length.
Maintenance and Storage
1.
Replace the batteries in a timely manner when low voltage lamp is lighted.
2.
Clean surface of the fingertip oximeter before it is used in diagnosis for patients.
3.
Remove the batteries if the oximeter is not operated for a long time.
4.
It is best to store the product in -25℃~+70℃ and ≤93% humidity.
5.
Keep in a dry place. Extreme moisture may affect oximeter lifetime and may cause damage.
6.
Dispose of battery properly; follow any applicable local battery disposal laws.
Cleaning the fingertip pulse oximeter
Please use medical alcohol to clean the silicone touching the finger inside of oximeter with a soft cloth dampened
with 70% isopropyl alcohol. Also clean the being tested finger using alcohol before and after each test.
Do not pour or spray liquids onto the oximeter, and do not allow any liquid to enter any openings in the device.
Allow the oximeter to dry thoroughly before reuse.
The fingertip pulse oximeter requires no routine calibration or maintenance other than replacement of batteries.
The use life of the device is five years when it is used for 15 measurements every day and 10 minutes per
one measurement. Stop using and contact local service center if one of the following cases occurs:
An error in the Possible Problems and solutions is displayed on screen.
The oximeter cannot be powered on in any case and not the reasons of battery.
