VocoPro DKP-Mix Owner's Manual

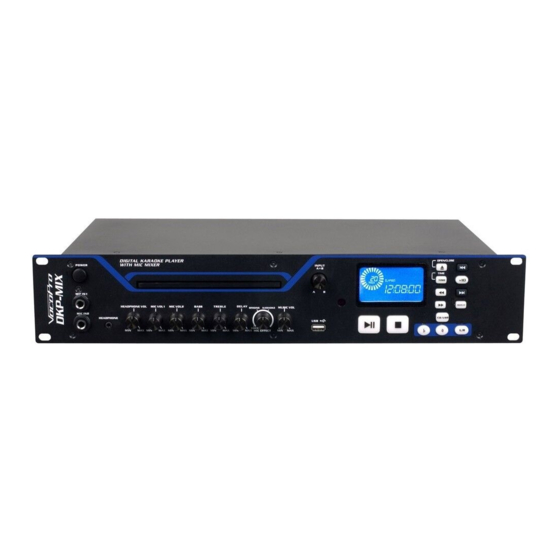

Digital karaoke player with mic mixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DKP-Mix
o
w
n
e
r
'
s
m
a
n
u
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DKP-Mix and is the answer not in the manual?

Questions and answers

Related Manuals for VocoPro DKP-Mix

Summary of Contents for VocoPro DKP-Mix

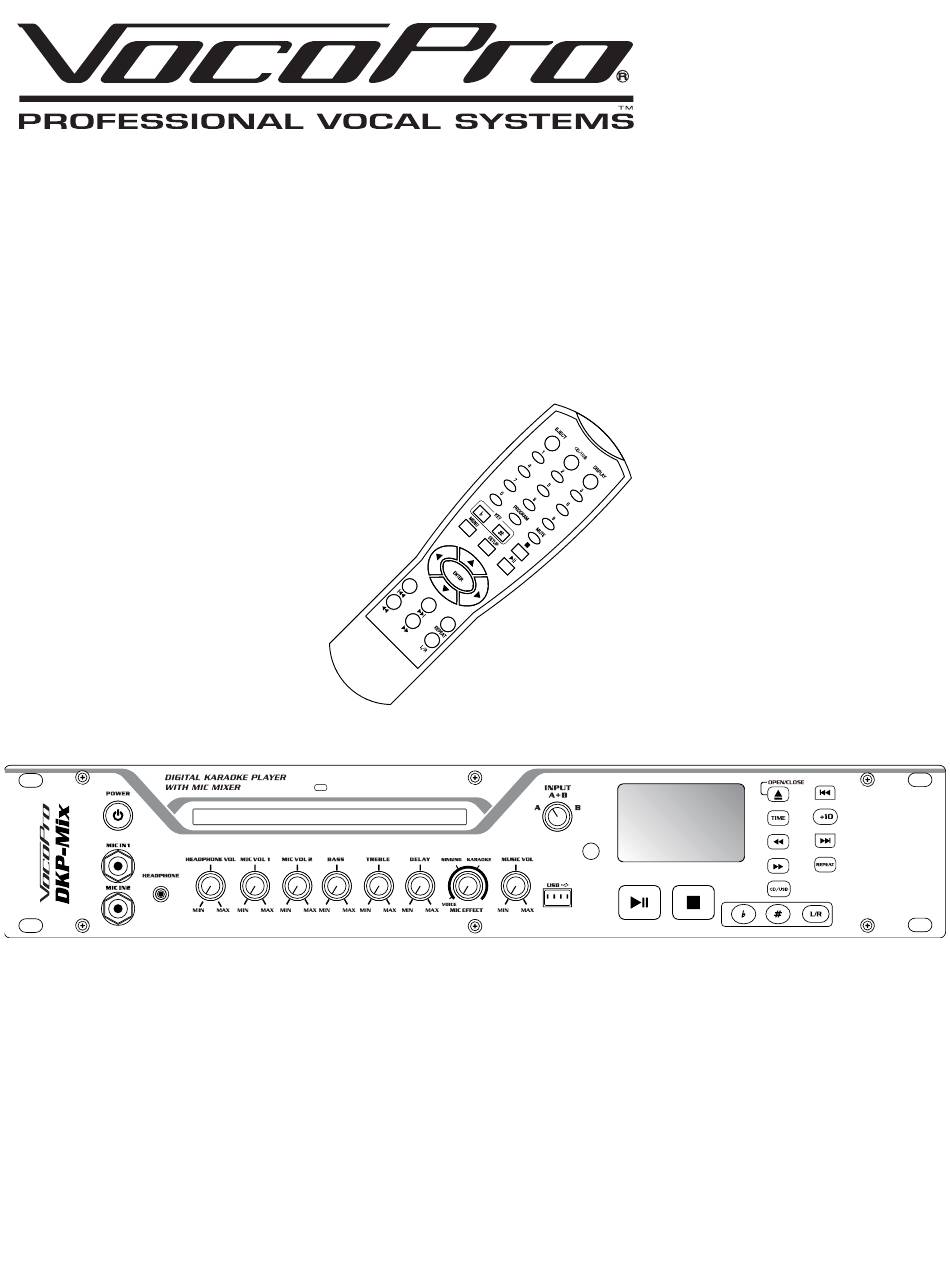

  • Page 1 DKP-Mix...

  • Page 3: Table Of Contents

    Table of Contents FCC Information ............4 Listening for a Lifetime ..........5 Safety Instructions ........... 6 Welcome ............... 7 Getting Started ............8 Getting Connected ........... 9 Set Up Menu ............16 Descriptions and Functions ........19 Advance Remote Options ........24 Troubleshooting ............

  • Page 4: Fcc Information

    1. To ensure the finest performance, please read this requirements. Modifications not expressly approved by manual carefully. Keep it in a safe place for future Vocopro may void your authority, granted by the FCC, reference. to use this product. 2. Install your unit in a cool, dry, clean place - away from 2.
  • Page 5 Safety Instructions 8. Ventilation - The appliance should be situated so its CAUTION location does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots.

  • Page 6: Safety Instructions

    And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft.

  • Page 7: Listening For A Lifetime

    Now itʼs time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.

  • Page 8: Getting Started

    Getting Started What’s in the box? •DKP-Mix Receiver •Remote •Power Adapter...

  • Page 9: Getting Connected

    (i.e. MP3 player, SMARTPHONE, TABLET or Laptop headphone jack) to Auxiliary input on DKP-Mix. *in order to hear the audio source, make sure the input dial knob (on front panel of DKP-Mix) is turned to correct input channel setting.
  • Page 10 • Connecting to RCA line inputs on rear panel of DKP-Mix: Connect an external audio source here via RCA cable (ex. DVD player, media streaming device)*in order to hear the audio source, make sure the input dial knob (on front panel of DKP-Mix) is turned to correct input channel setting.
  • Page 11 Getting Connected • Connecting to XLR (Balanced) audio outputs: Connect a pair of balanced XLR cables from the XLR Outputs on the back of the DKP-Mix to a pair of available XLR inputs on a mixer or speaker system.
  • Page 12 Getting Connected Opening and Closing the Disc Tray • Turn the unit power on. Press the OPEN/CLOSE button to open the disc tray. The disc tray can not be opened during playback. Loading discs • Hold the disc by the edges and place it in the disc tray, then press the OPEN/CLOSE button again to close the disc tray.
  • Page 13 Getting Connected Selecting Tracks • Press the SKIP button (|<< >>| ) once to move to next or Previous track. Disc Playback • Once disc has loaded, seek through tracks and push play/pause button to begin playing selected track. Fast-forward •...
  • Page 14 INSERTING A USB DRIVE 1. Insert the USB drive into the USB slot. *Please make sure that the DKP-Mix video output is sending to a display screen such as a television for viewing file navigation. 2. Use the CD/USB button to select USB.
  • Page 15 Getting Connected *Please note: Display screen, on front panel of DKP-Mix, will only show track number and time elapsed. Any information in regards to song title and or artist will display on the connected video monitor. •Selection options for type of media will be shown toward bottom of television screen (i.e.

  • Page 16: Set Up Menu

    • Screen Saver: When set to ON, a graphic will replace an inactive display. • Power Resume: This feature allows for returning to the exact same spot within a song, prior to the DKP-Mix being powered down. • TV Type: ...
  • Page 17 (disc/usb file) and you intend to connect at least two loudspeakers. • VSS: This setting provides a virtual surround sound of the mixed audio output. • Subwoofer ON/OFF: This setting must be ON if connecting a subwoofer to the DKP-Mix. OP MODE: •...
  • Page 18 Set Up Menu DUAL MONO: • STEREO: Cancels out mono output modes by sending independent audio signal to both left and right channel • Mono L: Sends single audio signal to be perceived from the left channel • Mono R: Sends single audio signal to be perceived from the right channel •...

  • Page 19: Descriptions And Functions

    3. Mic 2 Input --- Connect a 1/4” unbalanced microphone here. 4. Headphone Jack --- connect a pair of headphones here to monitor all audio from the DKP-Mix 5. Headphone Volume --- adjust this knob to increase or decrease the volume of the audio being sent to headphones.
  • Page 20 *Note: The Key, of the currently playing song, will only automatically reset (to originally recorded key) when the disc or usb flash drive is removed from the DKP-Mix. 11. L/R --- Effectively cancels out vocals recorded on the center channel of multiplexed discss 12 .
  • Page 21 Descriptions and Functions BACK PANEL 1. INPUT A- Auxiliary connector that allows audio input from external sources via auxiliary cable (ex. Mp3 player, Laptop) 2. INPUT B- Connect an external audio source here via auxiliary cable (ex. Mp3 player, Laptop) or RCA cable (ex.
  • Page 22 13. (Next button) --- Press to skip forward to next track/chapter 14. Repeat --- enable to have the DKP-Mix replay the currently playing track, once finished. 15. (Rewind button) --- Press and hold to revert to a previous moment in time, within the track/ movie being played 16.
  • Page 23 Descriptions and Functions...

  • Page 24: Advance Remote Options

    Advance Remote Options PROGRAMMING TRACKS/CHAPTERS: 1. Press the PROGRAM button on the remote or PGM button (See pg.10 #7) to access the program menu. 2. In each empty numbered slot, enter the track number that you want to play (the lowest numbered slot filled in will be the first to play) Note: For tracks 1-9 simply press the individual number on the remote, you do not have to press 0 first.

  • Page 25: Troubleshooting

    • If using a power strip/surge-protector, make sure that it is plugged in and switched on. *Please be advised that it is safe practice to power the DKP-Mix on in the following fashion: 1. Always make sure the DKP-Mix power switch is in an off position 2.
  • Page 26 • If the disc is a CD+G, make sure the player is not bumped or shaken, as the anti-skip feature does not function with CD+Gs. • Make sure that the DKP-Mix sits on a level surface with no upward or downward tilt There is no Video •...

  • Page 27: Specifications

    Specifications • NTSC/PAL Switchable for Worldwide Compatibility • Full-featured playback with single and repeat playback modes • Rugged, Professional and Space Saving Design offering portability as well as sustainability • Multi-format disc play that supports DVD, DivX, VCD, CD+G, Mp3, CD •...
  • Page 28 Notes...
  • Page 30 DKP-Mix Owner’s Manual © VocoPro 2017 v1.0717 www.vocopro.com...
