Summary of Contents for VocoPro DVG-777K III

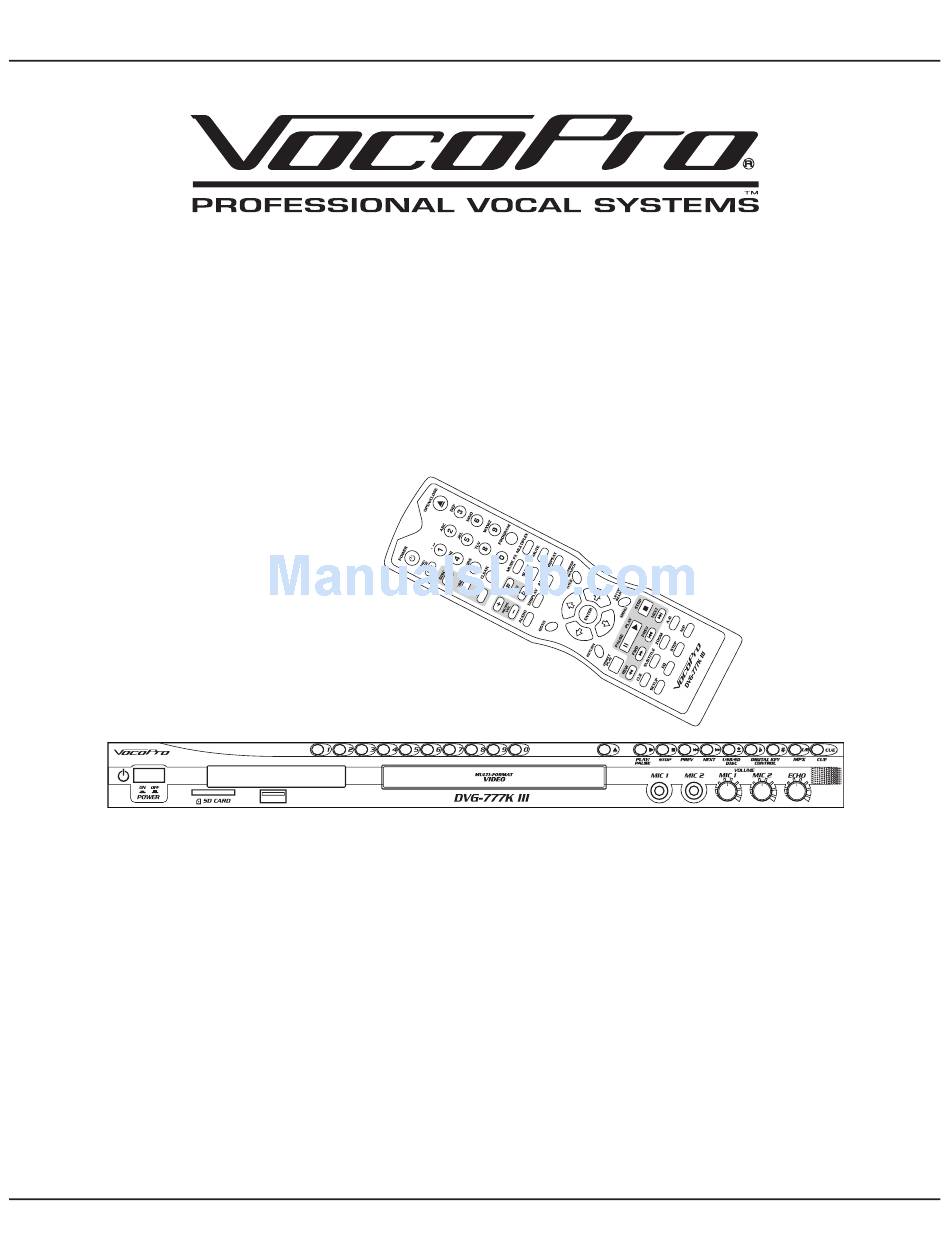

- Page 1 DVG-777K III Multi-Format USB/DVD/CD+G Karaoke Player...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions.......... 3 FCC Information ..........4 Welcome ............5 Features and Specifications ......6 Getting Started ..........7 • Warranty Information ........7 • Package Contents........7 Getting Connected.......... 8 • Audio Connections ........8 • Video Connections ........10 •... -
Page 3: Safety Instructions
Safety Instructions �� ����������� - The appliance should be situated so its location does not interfere with its proper ventilation. For ������� example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ����... -
Page 4: Fcc Information
1. To ensure the finest performance, please read this requirements. Modifications not expressly approved by manual carefully. Keep it in a safe place for future Vocopro may void your authority, granted by the FCC, to reference. use this product. 2. Install your unit in a cool, dry, clean place - away from 2. -
Page 5: Welcome
Welcome And thank you for purchasing the DVG-777K III from VocoPro, your ultimate choice in Karaoke entertainment! With years of experience in the music entertainment business, VocoPro is a leading manufacturer of Karaoke equipment, and has been providing patrons of bars, churches, schools, clubs and individual consumers the opportunity to sound like a star with full-scale club models, in-home systems and mobile units. -
Page 6: Features And Specifications
Echo level .............. 10 levels Total harmonic distortion ......... 0.5% *Some burned CDs and DVDs may not play properly on the DVG-777K III. If this is the case, try using a different brand of disc or a differnt disc-burning program. -
Page 7: Getting Started
Package Contents When unpacking your DVG-777K III we recommend that you keep the original receipt or invoice, box and packing materials in case the product ever needs to be shipped for warranty repair or any other purpose. Warranty Information The DVG-777K III is covered under a 1-Year Limited Warranty. For detailed warranty information please visit www.vocopro.com/warranty_standard.html... -
Page 8: Getting Connected
• Audio input device (mixer, amp, powered speakers, recording device, etc.) 1. Connect one end of the L/R RCA audio cable to the Left and Right (red & white) RCA Output channels on the DVG-777K III’s rear panel AV INPUT STEREO INPUT ���������... - Page 9 Getting Connected Connecting Directly to a Powered Subwoofer The DVG-777K III can be connected directly to a powered subwoofer with an RCA input. What you will need: ��������� • 1 RCA cable ����� ��������� ���� ��� ���� �� ���� �����...
-
Page 10: Video Connections
���� ����� TV, monitor or video mixer NOTE: When using the S-Video output, the DVG-777K III must be set to S-VIDEO output. See “Changing the Video Output Mode” in the Operations section of this manual for detailed instructions on setting the DVG-777K III ��������... - Page 11 � � � inputs on a High Definition TV NOTE: When using the Component output, the DVG-777K III must be set �������� ��� to YPBPR output. See “Changing the Video Output Mode” in the Operations ���� ����� section of this manual for detailed instructions on setting the DVG-777K III...
-
Page 12: Usb Device Connection
Connecting an SD CARD The DVG-777K III allows you to connect an SD CARD to play Audio/Video files using the remote control. 1. Insert the SD CARD into the slot on the front panel. To view the files, press the SD button on the remote or the USB/SD/DISC button on the front panel to cycle through to the card. -
Page 13: General Operations
1. Press the POWER button on the front panel to turn the DVG-777K III on and off Standby Once the main power is turned on, the DVG-777K III can be set to standby mode using the POWER button on the remote control. - Page 14 4. The disc will begin playing at 1:45 minutes in the disc Programming a Custom Track Order The DVG-777K III allows you to create a custom playlist of up to 16 tracks using the PROGRAM button on the remote control.
- Page 15 • TITLE REPEAT (DVD only): Repeats the current title on a DVD disc Switching Between PAL and NTSC Video Modes The DVG-777K III is defaulted to NTSC. Use the P/N button on the remote control to switch between PAL and NTSC.
- Page 16 1. Press the CUE button on the remote control or front panel of the DVG-777K III to turn CUE on. A message on the screen will indicate if CUE has been turned on or off. Each song will pause at the one second mark 3.
-
Page 17: Dvd Operations
General Operations Playing Forward and Reverse in Slow Motion You can play a disc forward or reverse at 1/2, 1/3, 1/4, 1/5, 1/6 and 1/7 the normal speed 1. Press the SLOW button on the remote control to cycle through the Slow Motion options 2. -
Page 18: Mp3, Avi And Media File Operations
Navigating on the File Menus: The DVG-777K III has two menu modes available for selecting and playing media files: FOLDER VIEW and FILE VIEW. ‘Folder view’ is used for selecting folders and files types, while ‘file view’ is used for only selecting files for playback. -
Page 19: Descriptions And Functions
Front Panel � � � � �� �� � � � � �� �� � � �� �� �� �� �� �� �� Front Panel 1. Main POWER button - Turns the power on and off. 2. SD CARD slot - Insert an SD CARD here for A/V file playback. 3. -
Page 20: Rear Panel
Rear Panel Rear Panel � � � � � � � 1. MIC-MUSIC/SURROUND OUTPUT jacks – Use the LEFT/RIGHT jacks to connect to a standard 2-channel audio system with mic and music output. Use the surround output jacks to connect to a 5.1 surround sound receiver or mixer. -
Page 21: Remote Control
Remote Control 1. POWER button - Turns the unit on and off. � �� 2. PBC button - Turns on Playback Control (PBC). For use with VCD 2.0 discs, PBC allows you to navigate more conveniently through VCD 2.0 discs. 3. - Page 22 Remote Control 19. OPEN/CLOSE button - Opens and closes the disc tray. 20. Direct Track Access (number/letter) buttons - For use � �� whenever number input is necessary. i.e. Jumping directly to tracks/chapters, programming tracks in program mode, letter search, etc. See the Operations section in this manual for detailed instructions.
-
Page 23: Setup Menu
System Setup Page 1. TV SYSTEM Select PAL or NTSC to match the region setting of your tv type. Select AUTO to have the DVG-777K III detect the format. 2. SCREEN SAVER Screen saver is used to protect your TV/video monitor when the player is idle for a significant period of time. -
Page 24: Audio Setup Menu
Setup Menu LANGUAGE SETUP 1. OSD LANGUAGE Change the on screen display language. The default is English. 2. AUDIO LANGUAGE Change the audio language of your DVD discs with this option. 3. SUBTITLE LANGUAGE Change the subtitle language. The default is English. 4. - Page 25 Setup Menu system. 5. FRONT LARGE: If you have front speakers capable of low frequency output. SMALL: If you have front speakers that are not capable of low frequency output. DIGITAL SETUP OP MODE Select Line Out or RF Remodulation. DYNAMIC RANGE Setting the compression allows you to play music at a lower volume without losing the original quality of the sound.
-
Page 26: Troubleshooting
There is no power • Make sure the power cord is firmly connected to the back of the DVG-777K III and to the power outlet • If using a power strip/surge-protector, make sure that it is plugged in and switched on There is no sound •... - Page 28 DVG-777K III Manual © VocoPro 2012 V 1.0815 www.vocopro.com...
