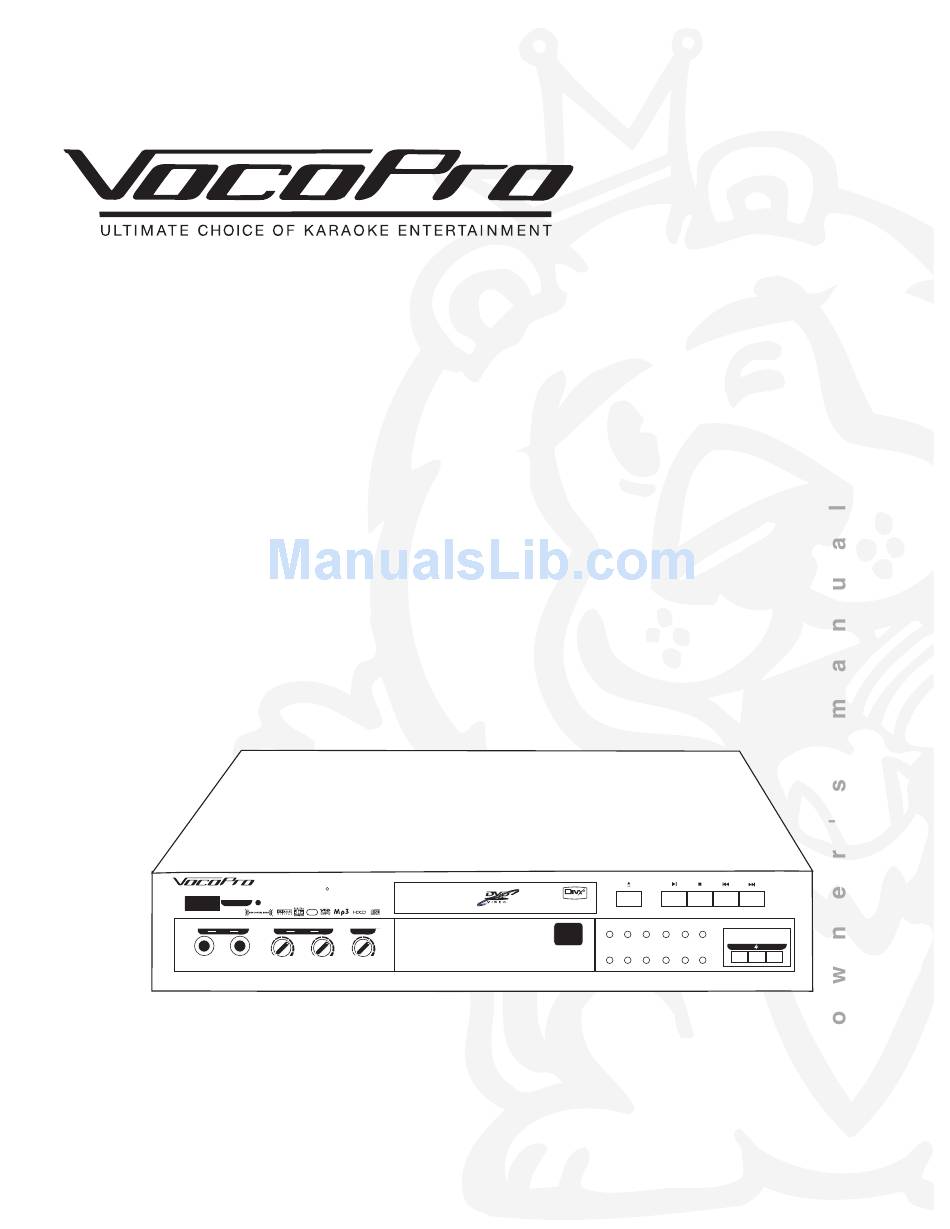

VocoPro DVX-780K Owner's Manual

VocoPro DVX-780K Owner's Manual

Multi-format disc player supports dvd, divx, vcd, cdg, mp3, photo-cd, hdcd and cd/dvd-r rw formats
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES:
•Multi-format disc player supports DVD, DivX®, VCD, CDG, MP3,
PHOTO-CD, HDCD and CD/DVD-R RW formats for unparalleled
media entertainment compatibility
•Experience the convenience of a jukebox on a disc, enjoying hours
of selected audio/video files from custom DivX® discs, each
capable of holding hundreds of DVD quality audio/video files
(PC required for creating DivX® discs)
•Dual microphone inputs with individual volume controls
•Built-in ECHO effect
•Digital Key Controller for changing the key of the music to fit
your vocal range via remote or front panel
•Built in Dolby Digital (AC-3) and Dolby DTS decoders for cinema
sound quality
•Full-function remote control for ease of operation of all system
features
•Audio Outputs 5.1 Channel, Stereo L/R, Digital Coaxial, Digital
Optical
•Video Outputs: Y, Cb, Cr, Composite RCA, S-Video, SCART and even VGA!
•100V/240V and NTSC-PAL compatible for use worldwide
Digital Key Control DVD/DivX
POWER
1
MIC
2
DVX-780K
R
Karaoke Player
CDG
1
MIC
2
ECHO
0
10
0
10
0
10
DVX-780K
OPEN/CLOSE
PLAY/PAUSE
STOP
PREV
R
V I D E O
R
1
2
3
4
5
6
Digital Key Control
b
7
8
9
0
N/P R/L
Progressive Scan
NEXT
#

Advertisement

Table of Contents
loading

Related Manuals for VocoPro DVX-780K

Summary of Contents for VocoPro DVX-780K

  • Page 1 •Audio Outputs 5.1 Channel, Stereo L/R, Digital Coaxial, Digital Optical •Video Outputs: Y, Cb, Cr, Composite RCA, S-Video, SCART and even VGA! •100V/240V and NTSC-PAL compatible for use worldwide Digital Key Control DVD/DivX POWER DVX-780K Karaoke Player V I D E O ECHO DVX-780K Progressive Scan...

  • Page 2: Safety Instructions

    Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.

  • Page 3: Fcc Information

    UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.

  • Page 4: Welcome

    Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit.

  • Page 5: Listening For A Lifetime

    Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.

  • Page 6: Table Of Contents

    FCC Information ... 3 Welcome ... 4 Listening for a Lifetime ... 5 Table of Contents ... 6 Media supported by your DVX-780K ... 7 The DivX breakthrough ... 7 DESCRIPTIONS AND FUNCTIONS Front panel ... 8 Rear panel ... 8 Remote control ...

  • Page 7: Media Supported By Your Dvx-780K

    Karaoke entertainment. VocoPro recognized the incredible breakthrough that DivX offered our consumers, so we developed our latest series of players to support DivX discs. Your new DVX-780K is designed with your multi-purpose home entertainment in mind--a player that can do it all.

  • Page 8: Descriptions And Functions

    - Press once to PAUSE playback and enter AUTO STOP MODE. Press twice to STOP playback. When in AUTO STOP MODE, playback pauses and the Vocopro screen appears. Pressing PLAY will resume playback and exit AUTO STOP MODE. PREV / NEXT buttons - Press these buttons to advance to the NEXT or reverse to the PREVIOUS track.

  • Page 9: Remote Control

    - Press to execute a SLOW motion playback of a DVD or Video CD. STOP enter AUTO STOP MODE. Press twice to completely STOP playback. While in AUTO STOP MODE, playback pauses and the Vocopro splash screen appears. Pressing PLAY will resume playback and exit AUTO STOP MODE. STEP mode, playback is paused and the track/scene advances only a single each time STEP is pressed.

  • Page 10: Remote Control

    Remote Control Operations Installing the batteries To install the batteries, first remove the battery compartment lid from the back of the remote control. Insert two AA batteries, ensuring that the polarities are aligned correctly. When to replace the batteries The maximum operational distance between the remote control and the sensor is approximately 23 ft. If this distance decreases, it is time to replace the batteries.

  • Page 11: Getting Started

    Using either the yellow-ended RCA plug from the included RCA patch cable or a separate RCA patch cable, connect one end to the RCA VIDEO OUTPUT jack on the DVX-780K and connect the other end to the VIDEO INPUT jack on our TV or monitor device.

  • Page 12: Connecting To A Tv Through A Vcr

    Using 3 appropriate Component Video cables (usually color coded red, blue and green), connect a set of plugs to the COMPONENT VIDEO OUT jacks (Y Cb Cr) on the DVX-780K and plug the other set of plugs to your COMPONENT VIDEO IN jacks (Y Cb Cr) on your television.

  • Page 13: Connecting To Hdtv Or Video Monitor

    Using either an RCA-ended COAXIAL cable suited for digital audio use or an OPTICAL cable, connect one end to the appropriate jack on the DVX-780K (Coaxial or Optical) and the other end to the appropriate jack on the AC-3 decoder/receiver (Coaxial or Optical). If you have both coaxial and optical inputs on your AC-3 decoder/receiver, it is recommended to use an optical connection as those cables eliminate the possibility of EMI (electromagnetic interference).

  • Page 14: Connecting To Dts Receiver/Decoder

    Using either an RCA-ended COAXIAL cable suited for digital audio use or an OPTICAL cable, connect one end to the appropriate jack on the DVX-780K (Coaxial or Optical) and the other end to the appropriate jack on the DTS receiver (Coaxial or Optical). If you have both coaxial and optical inputs on your DTS decoder/receiver, it is recommended to use an optical connection as those cables eliminate the possibility of EMI (electromagnetic interference).

  • Page 15: Setting Up Preferences

    MAIN PAGE 2. Setting PIC MODE. You can select AUTO and the DVX-780K will automatically recognize the input type, or select FILM, VIDEO or SMART SUPERSMART. 3. Setting ANGLE MARK When watching certain recorded performances or athletic events, having ANGLE MARK set to ON will allow you to watch the program from different angles.

  • Page 16: Speaker Setup

    SETTING UP PREFERENCES SPEAKER SETUP SPEAKER SETUP DOWNMIX LT/RT CENTER STEREO REAR 5.1 CHANNEL SUBWOOFER CENTER DELAY REAR DELAY TEST TONE MAIN PAGE SPEAKER SETUP DOWNMIX CENTER REAR SUBWOOFER CENTER DELAY REAR DELAY TEST TONE MAIN PAGE SPEAKER SETUP DOWNMIX CENTER REAR SUBWOOFER...

  • Page 17: Audio Setup

    SETTING UP PREFERENCES AUDIO SETUP AUDIO SETUP SPDIF OUTPUT PRO LOGIC SPDIF/RAW SPDIF/PCM LPCM OUTPUT DYNAMIC MAIN PAGE AUDIO SETUP SPDIF OUTPUT PRO LOGIC LPCM OUTPUT AUTO DYNAMIC MAIN PAGE AUDIO SETUP SPDIF OUTPUT PRO LOGIC LPCM OUTPUT LPCM 48K DYNAMIC LPCM 96K MAIN PAGE...

  • Page 18: Karaoke Setup

    SETTING UP PREFERENCES AUDIO SETUP DIVX (R) REGISTRATION Your registration code is: 9vvokl Please USE this code to register this player with the DivX(R) Video On Demand service. This will allow you to rent and purchase videos using the DivX(R) Video On Demand format. To learn more go to www.divx.com/vod DONE 5.

  • Page 19: Preferences Setup

    SETUP MP3 YPB PR OUTPUT MAIN PAGE SELECT VIDEO OUTPUT 6. VIDEO OUTPUT With the DVX-780K, you can select between SVIDEO OUTPUT, YCBCR OUTPUT (Component Video) or YPBPR OUTPUT (Progres- sive Scan Video) or VGA. PREFERENCE PAGE TV TYPE AUDIO...

  • Page 20: Basic Operations

    · Turn on the audio equipment connected to the unit. Set its input source to the channel that the DVX-780K is connected. 1) Press POWER When the unit turns on you will see the LED glow red and see the VocoPro screens on your TV.

  • Page 21: Advanced Operations

    ADVANCED OPERATIONS Scene/track selection To skip to the next chapter or track Press >>I during playback. The disc position advances one CHAP- TER or TRACK each time the button is pressed. REPEAT TITLE MENU To return to the previous chapter or track Press the I<< twice in rapid succession to return to the beginning of the previous chapter or track.

  • Page 22: Changing Angles

    ADVANCED OPERATIONS Changing Angles When playing a DVD with multi-angles recorded, you can select the angle you want to view. During playback, when a multi-angle scene comes on, the angle symbol is displayed to queue you. When you see this option appear, press the ANGLE button to change. Each time ANGLE is pressed, the next available viewing angle is initiated until returning to the original angle.

  • Page 23: General Notes On Mp3 Discs

    MP3 FUNCTIONS AND OPERATIONS The DVX-780K can play back MP3 files recorded to CD-ROM, CD-R or CD-RW discs. Notes on MP3 discs An MP3 file stores audio data that has been compressed using the MPEG1 encoding scheme. Although PC terminology regarding MP3s and storage is, “files”...

  • Page 24: Mp3 Functions And Operations

    MP3 FUNCTIONS AND OPERATIONS Selecting an MP3 PLAY MODE: In order to see this menu automatcially when you load and MP3 disc, SETUP MP3 under PREFERENCES must have WITH MENU se- lected There are 10 available MP3 play modes to choose from. Use the direction keys to locate PLAY MODE field at bottom of SMART NAVI menu and up or down keys to select any of the following: 1.

  • Page 25: Divx Operations

    file should be at least 10MB or less. * DivX Networks, Inc, Tricerasoft, Power Karaoke and the Power CDG to AVI Converter are not affiliated with VocoPro. VocoPro makes no claims about their products and assumes no responsibility...

  • Page 26: Specifications

    SPECIFICATIONS Supported Disc Formats: DVD, SVCD, HDCD, VCD 2.0-3.0, MP3, Audio CD Supported Discs: 12 cm single sided, single layer 12 cm single sided, double layer 12 cm double sided, single layer 12 cm double sided, double layer 8 cm single sided, single layer 8 cm single sided, double layer 8 cm double sided, single layer 8 cm double sided, double layer...
  • Page 27 www.vocopro.com...
