ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL # APJG1001
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Save this manual for future reference.
Ages:4-10
Maximum occupancy: 3 users
Skywalker Holdings LLC
Maximum weight: 315 lbs.
P.O. Box 574, Brigham City, UT 84302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ActivPlay APJG1001 and is the answer not in the manual?

Questions and answers

Related Manuals for Skywalker ActivPlay APJG1001

Summary of Contents for Skywalker ActivPlay APJG1001

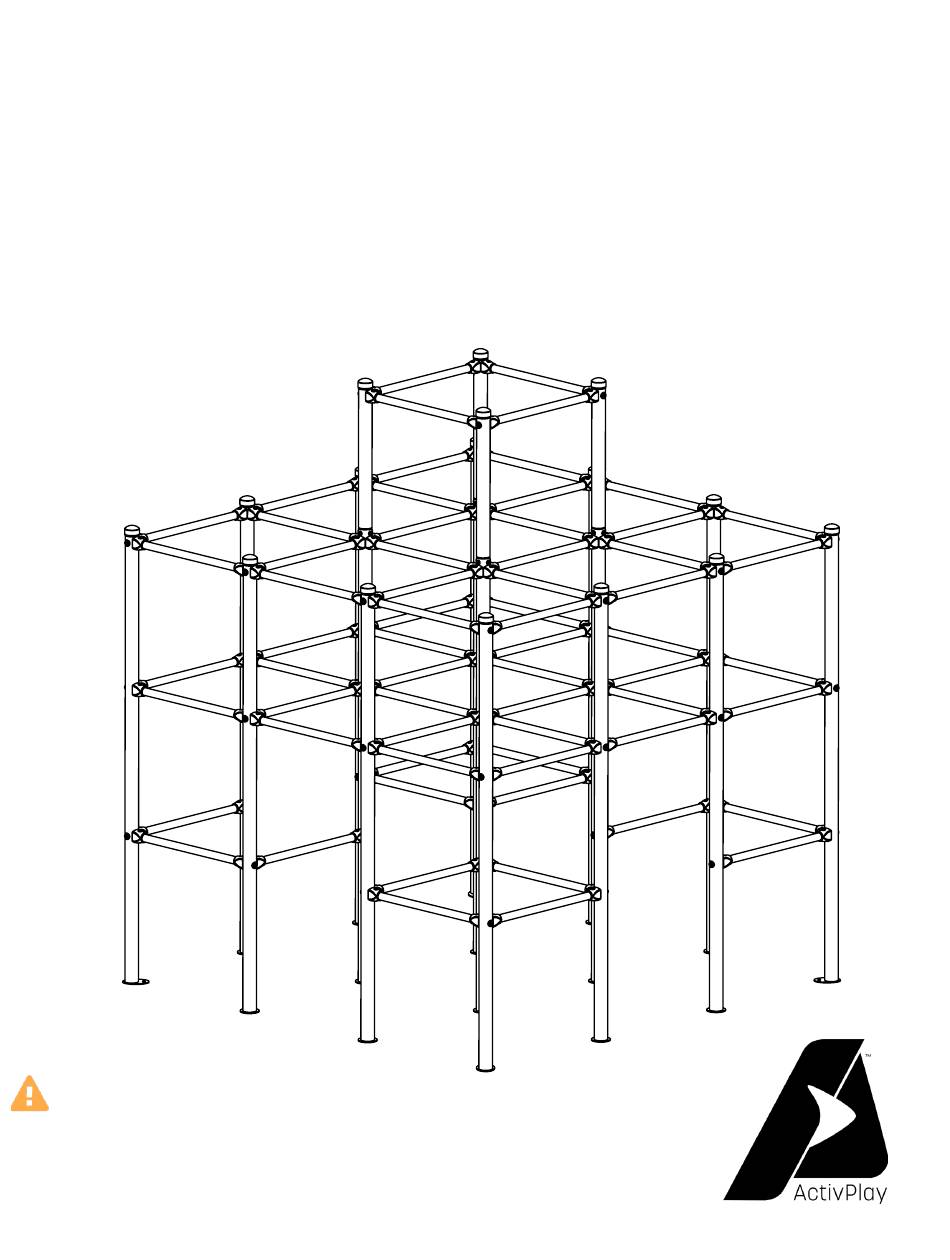

  • Page 1 MODEL # APJG1001 WARNING Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Ages:4-10 Maximum occupancy: 3 users Skywalker Holdings LLC Maximum weight: 315 lbs. P.O. Box 574, Brigham City, UT 84302...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-5 Exploded Drawing................................6 Assembly....................................7-30 Installation....................................31 Maintenance & Care Information...........................32 Safety information................................33 Instructions for Use.................................34 Warning Label Placement............................35 Playground Surfacing Materials Information....................36 Limited Warranty.................................37-38 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR PRODUCT Find our warranty registration online by typing in: www.activplayground.com/registration/ You'll need to have the following information handy: •...

  • Page 3: Part List

    PART LIST Key No. Qty. Description Middle Upright 1 Middle Upright 2 Side Upright 3 Side Upright 2 Side Upright 1 Corner Upright Long Cross Bar Middle Cross Bar Short Cross Bar Top Upright Plastic Cap Plastic Protector M8X65mm Button Bolt M6 Washer M6x40mm Button Bolt M6 Locknut...

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts. The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Middle Upright 1 Middle Upright 2 Side Upright 3 (x2)
  • Page 5 M6x40mm Button M8X65mm Button M6 Washer Bolt (x140)-8 spare Bolt (x50)-6 spare (x140)-8 spare M6 Locknut (x140) M8x20mm Button M8 Washer -8 spare Bolt (x16) (x16) Arc Washer (x50) 4mm Hex Key (x3) 5mm Hex Key (x1) -6 spare...

  • Page 6: Exploded Drawing

    EXPLODED DRAWING (11) (11) (15) (11) (15) (11) (14) (16) (11) (10) (10) (11) (10) (10) (11) (15) (15) (14) (14) (11) (15) (12) (14) (16) (16) (19) (12) (15) (16) (13) (14) (19) (15) (12) (13) (14) (19) (16) (12) (13) (15)

  • Page 7: Assembly

    ASSEMBLY READ THIS BEFORE YOU BEGIN • We recommend at least two adults and two hours to complete this assembly • We’ve provided some tools to help with assembly, but you’re more than welcome to use your own • The assembly steps refer to parts by their descriptions and key numbers (see the part list on page 3) •...
  • Page 8 ASSEMBLY STEP 3 From the FRONT and REAR, slide a middle cross bar (8) through the top holes of each middle upright (1) and into the middle upright 2’s (2). As you slide the cross bars through, add the plastic Plastic protectors (12) so the curves align with the middle Middle Cross...
  • Page 9 STEP 4 From the LEFT and RIGHT, slide a middle cross bar (8) through the top holes of each middle upright (1) and into the middle upright 1’s (2). As you slide the cross bars through, add the plastic protectors (12) so the Plastic curves align with the middle uprights and the holes Middle Cross...
  • Page 10 ASSEMBLY STEP 5 From the FRONT and REAR, slide a middle cross bar (8) through the middle holes of each middle upright (1) and into the opposite middle uprights (2). As you slide the cross bars through, add the plastic protectors (12) so the curves align with Plastic M6 Locknut Middle Cross...
  • Page 11 STEP 6 From the LEFT and RIGHT, slide a middle cross bar (8) through the middle holes of each middle upright (1) and into the middle upright 2’s (2). As you slide the cross bars through, add the plastic Plastic protectors (12) so the curves align with the middle M6 Locknut Middle Cross...
  • Page 12 ASSEMBLY Attach the short cross bar (9) STEP 7 to two top uprights (10) (make sure the extra extensions on the uprights are facing back.) Place two plastic protectors (12) Plastic against either side of the short Short Cross Top Upright M8X65mm Button Protector (x2) Bar (x1)
  • Page 13 STEP 9 Attach the two sections from step 7 and 8 together with short cross bars (9) as shown. Place two plastic protectors (12) against either side of the short cross bar (9) while attaching. M6x40mm At the top of the plastic protectors, secure in M8X65mm Button Short Cross Button Bolt (x4)
  • Page 14 ASSEMBLY Now starting on the left side, attach STEP 11 four short cross bars (9) to the open spots on the uprights. Make sure to place a plastic protector (12) against the uprights when attaching the short M8X65mm Button M6 Locknut Arc Washer Bolt (x1) (x4)
  • Page 15 Locate a side upright 3 (3) and a side up- STEP 12 right 1 (5). Place them side by side making sure the look like the image below. Then slide two long cross bars (7) through the top and middle holes of the side uprights. Place four plastic protectors (12) against either Long Cross Plastic...
  • Page 16 ASSEMBLY STEP 13 Now attach that section from step 12 to the short cross bars (9) on the left side. Make sure to place six plastic protectors (12) at each M6 Locknut M6x40mm Plastic connection point. (x6) Button Bolt (x6) Protector (x6) At the top of the plastic protectors, secure the side upright 3 (3) , side upright 1 (5), plastic...
  • Page 17 STEP 14 Still working on the left side, attach two short cross bars (9) to the two free sides at the bottom of side upright 3 (3) and side upright 1 (5), make sure to M8X65mm Button M6 Locknut Arc Washer Bolt (x2) (x2) place two plastic protectors (12) at the...
  • Page 18 ASSEMBLY STEP 15 Now working on the front side, attach three short cross bars (9) to the open spots on the middle upright 1 (1) and Plastic M6x40mm M6 Locknut middle upright 2 (2), making sure to Protector (x3) Button Bolt (x3) (x3) place three plastic protectors (12) at Short Cross...
  • Page 19 Locate a side upright 2 (4) and side upright STEP 16 1 (5). Place them side by side making sure they look like the image below. Then slide two long cross bars (7) through the top and middle holes of the side upright 2 (4) and side upright 1 (5).
  • Page 20 ASSEMBLY Still using the section from step 16, place two plastic protectors (12) and two short cross bars (9) onto the bottom exten- STEP 17 sions of the side upright 2 (4) and side upright 1 (5). At the top of the plastic protectors, secure the uprights, plastic protectors and short cross bars with two Arc Washer...
  • Page 21 Place the section from step 17 onto the short STEP 18 cross bars (9) on the front side, first placing a plastic protector (12) at each connection point. At the top of the plastic protectors, secure the side upright 2 (4), side upright 1 (5) , corner M6 Locknut M6x40mm Plastic...
  • Page 22 ASSEMBLY STEP 19 Now working on the right side, attach three short cross bars (9) to the free middle upright 1 (1) and middle upright 2 (2), make sure to place three plastic Plastic M6x40mm M6 Locknut protectors (12) against the connection Protector (x3) Button Bolt (x3) (x3)
  • Page 23 Locate a side upright 2 (4) and side upright 1 (5) and place them side by side making sure STEP 20 they look like the image below. Then slide two long cross bars (7) through the top and middle holes in the side upright 2 (4) and side upright 1 (5).
  • Page 24 ASSEMBLY Using the same section from step 20, place two plastic protectors and two short cross bars (9) onto the bottom STEP 21 extensions of the side upright 2 (4) and side upright 1 (5). At the top of the plastic protectors, secure the uprights, plastic protectors and short cross bars Arc Washer...
  • Page 25 STEP 22 Place the section from step 21 onto the short cross bars (9) on the right side, first placing a plastic protector (12) at each connection point. At the top of the plastic protectors, secure the M6 Locknut M6x40mm Plastic side upright 2 (4) and side upright 1 (5) , corner (x8)
  • Page 26 ASSEMBLY Now working on the rear side, attach STEP 23 four short cross bars (9) to the open spots on the middle upright 1 (1) and middle upright 2 (2), make sure to place four plastic protectors (12) at Plastic M6x40mm M6 Locknut each connection point.
  • Page 27 STEP 24 Locate a side upright 3 (3) and side upright 1 (5) and place them side by side making sure they sit like the image below. Then slide two long cross bars (7) through the side upright 3 (3) and side upright 1 (5). Place four plastic protectors (12) against either side of the up- Long Cross Plastic...
  • Page 28 ASSEMBLY Using the same section from step 24, place two plastic protectors (12) and two short cross bars (9) onto the STEP 25 bottom extensions of the side upright 3 (3) and side upright 1 (5). At the top of the plastic protectors, secure every- thing in place with two M6X40mm bolts (15), two M6 washers (14) and two M6 Arc Washer...
  • Page 29 STEP 26 Now attach the section from step 25 to the short cross bars (9), onto the rear (and last side!), make sure to place twelve plastic protectors (12) at each connection. M6 Locknut M6x40mm Plastic At the top of the plastic protectors, secure in (x12) Button Bolt (x12) Protector (x12)
  • Page 30 ASSEMBLY STEP 27 Congratulations on completing your Jungle Gym (See, we knew you could do it!) If you love the product, we want to hear from you! Please leave us a review on the retailer’s site you purchased this product from, on our Facebook page, or on any other review site.

  • Page 31: Installation

    INSTALLATION WARNING! To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on the Jungle Gym before assembly and use of this product. It is the responsibility of the owner and supervisors of this Jungle Gym Base to make sure all users obey the safety instructions printed in this material.

  • Page 32: Maintenance & Care Information

    MAINTENANCE & CARE INFORMATION Congratulations on successfully assembling your new ActivPlay Jungle Gym Base! Now, the best way to keep your new jungle gym in tip-top shape, is to follow this checklist periodically: At the beginning of each play season: •...

  • Page 33: Safety Information

    JUNGLE GYM SAFETY INFORMATION A Jungle Gym is a recreational product. The information on this manual identify important safety precautions. The precautions are not all-inclusive, because a Jungle Gym can be used in ways that this manual cannot cover completely. USING THE JUNGLE GYM SAFELY Adult Supervision of Children Children using the Jungle Gym must be supervised by adults at all times.

  • Page 34: Instructions For Use

    INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use this equipment. Warnings and instructions for care, maintenance, and use of this Jungle Gym are included to promote safe enjoyable use of this equipment.

  • Page 35: Warning Label Placement

    APJG1001 Model ActivPlay Modular Jungle Gym Base 2.0 Made in China Skywalker Holdings, LLC PO Box 574, Brigham City, UT, 84302 U SA www.skywalkertrampolines.com Factory address: No.3 Ronghai Er Road Chengyang District Qingdao China...

  • Page 36: Playground Surfacing Materials Information

    PLAYGROUND SURFACING MATERIALS The following information is from Section 4 of the United States Consumer Product Safety Commission’s (USCPSC) Outdoor Home Playground Safety Handbook for playground surfacing material. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing —...

  • Page 37: Limited Warranty

    LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase.
  • Page 38 NOTE: Skywalker Holdings, LLC is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenue or profits, loss of enjoyment or use, cost of removal, installation or other consequential damages.
