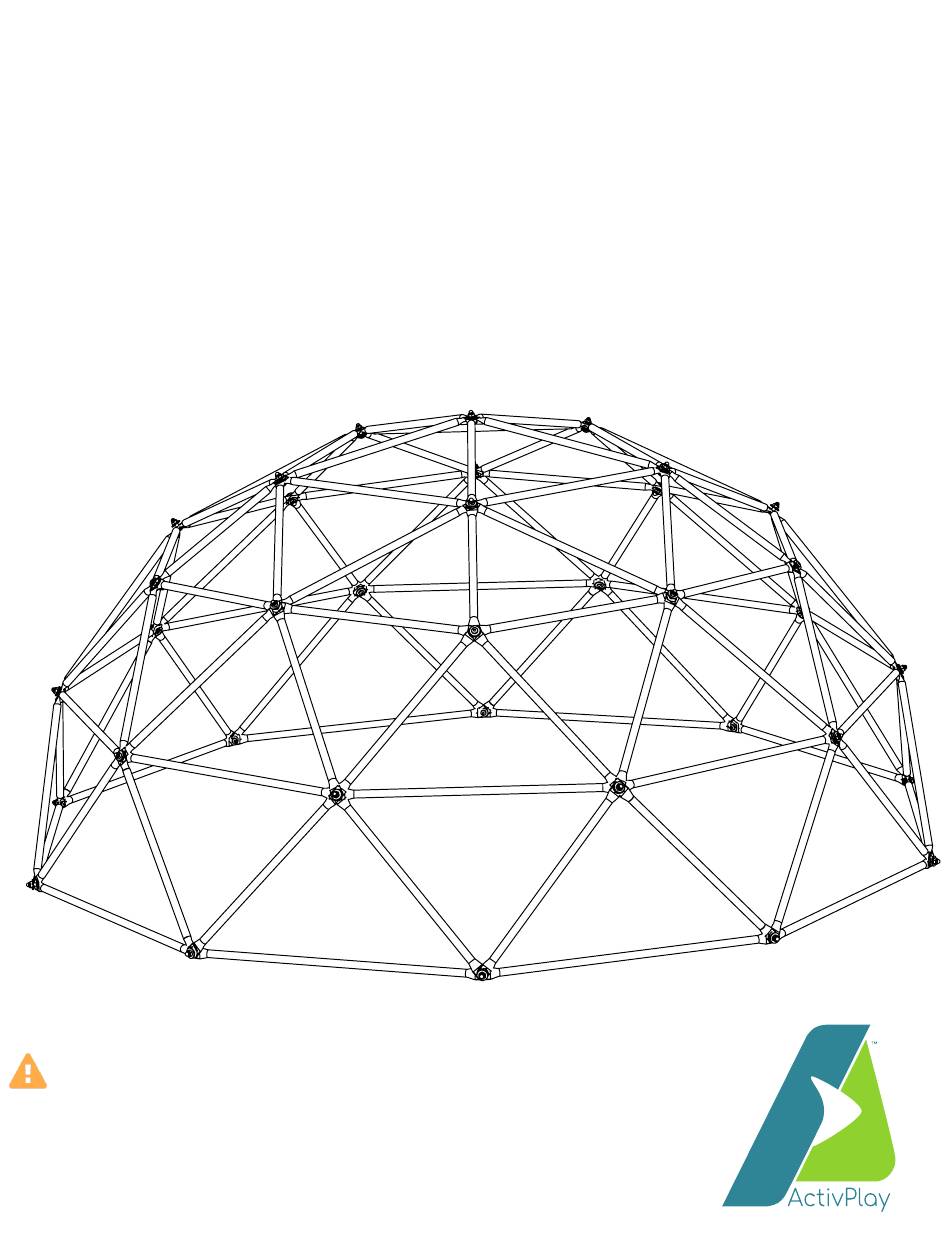

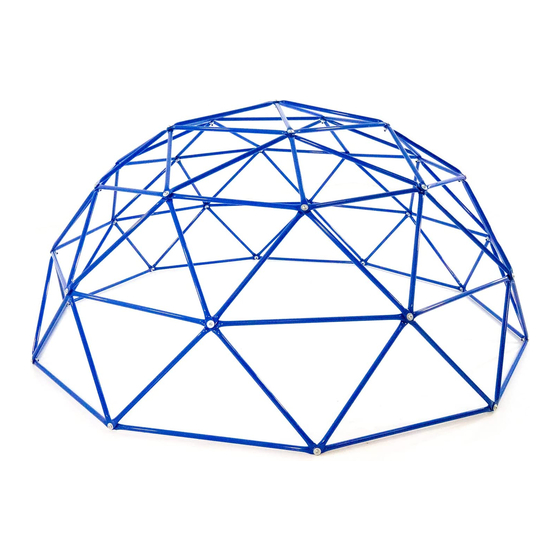

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL # APGD9B
WARNING
Read the assembly, installation, care, maintenance, and use
instructions in this manual prior to assembling and using this
equipment. Save this manual for future reference.
Ages: 4-8
Maximum occupancy: 5 users
Skywalker Holdings LLC
Maximum weight: 81 lbs each, Total weight limit 405 lbs.
P. O . Box 574, Brigham City, UT 84302
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skywalker ActivPlay APGD9B
Summary of Contents for Skywalker ActivPlay APGD9B
- Page 1 Save this manual for future reference. Ages: 4-8 Maximum occupancy: 5 users Skywalker Holdings LLC Maximum weight: 81 lbs each, Total weight limit 405 lbs. P. O . Box 574, Brigham City, UT 84302...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-5 Exploded Drawing................................6 Assembly...................................7-13 Installation.....................................14 Maintenance & Care Information..........................15 Geo Dome Safety information..........................16 Instructions for Use...............................17 Warning Label Placement............................18 Playground Surfacing Materials Information....................19 Limited Warranty..............................20-21 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR GEO DOME Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •... -
Page 3: Part List
PART LIST Key No. Qty. Description Tube 1 (895mm) Tube 2 (671mm) Tube 3 (818mm) Tube 4 (638mm) Tube 5 (511mm) Tube 6 (732mm) M10X30mm Bolt M10X35mm Bolt M10X33mm Bolt M10 Washer M10 Nut 6mm Hex Key Wrench User’s Manual ORDERING REPLACEMENT PARTS We get it, sometimes things happen, but the fun shouldn’t stop just because you need a new bolt or screw. -
Page 4: Part Identification
PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts. The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Tube 1 (x10) Size:895mm Tube 2 (x40) Size:671mm... - Page 5 M10x35mm Bolt M10x30mm Bolt M10x33mm Bolt (x10) (x20) (x6) 6mm Hex Key M10 Washer M10 Nut (x1) (x72) (x36) (x1) Wrench...
-
Page 6: Exploded Drawing
PARTS LOCATION DRAWING (10) (11) (10) (10) (11) (10) (11) (10) (10) (10) (10) (11) (11) (10) (10) (10) (10) (11) -
Page 7: Assembly
ASSEMBLY READ THIS BEFORE YOU BEGIN • We’ve provided some tools to help with assembly, but you’re more than welcome to use your own • The assembly steps refer to parts by their descriptions and key numbers (see the part list on page 3) •... - Page 8 ASSEMBLY STEP 3 Remove a nut and place two tube 2’s (2) onto the bolt and in front of the bars from the bottom ring. Place a M10 washer [10] and lightly replace the M10 nut [11]. The just placed tubes should meet in the middle to form a triangle like the below image.
- Page 9 STEP 5 STEP 5 Remove a nut from one of the M10X35mm bolts (8) from step 4, and place a tube 2 [2] onto the bolt. Lightly replace the nut. Add another tube 2 directly to the left in the same way. Make sure the two tubes lean in towards each other to form a triangle.
- Page 10 ASSEMBLY Using a tube 4 (4), attach one side of the tube to a tube 4 triangle section only [shorter tubes]. STEP 7 Use a M10X33mm bolt (9), M10 washer (10) and a M10 nut [11] [thread lightly as it will be removed in later steps] to attach.
- Page 11 Remove a nut from a M10X33mm bolt of the third ring and place a tube 5 onto the bolt. Add a M10 washer and lightly replace the nut. Now, remove the nut from the M10X35mm STEP 8 STEP 9 STEP 9 bolt directly to the right of where you just attached the tube 5 and place a tube 2 onto the bolt.
- Page 12 ASSEMBLY STEP 10 STEP 11 Using tube 6’s (6), connect accross the tubes from the previous step. Connect the tubes with M10X35mm bolts [8], M10 washers [10] and M10 nuts [11] [lightly place the nut as it will be removed in later steps].
- Page 13 STEP 13 Last step! Connect the top of the geo dome by placing a M10X33mm bolt [9] through all five tube 4’s from the previous step. Secure with two M10 washers [10] on either side and a M10 nut [11]. [You will need two people for this step, one person inside the geo dome to place bolt and washer and one person outside the geo dome to place the second washer and to secure the nut.
-
Page 14: Installation
INSTALLATION WARNING! To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on the Geo Dome before assembly and use of this product. It is the responsibility of the owner and supervisors of this geo dome and its accessories to make sure all users obey the safety instructions printed in this material. -
Page 15: Maintenance & Care Information
MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Geo dome! Now, the best way to keep your new geo dome in tip top shape, is to follow this checklist periodically: At the beginning of each play season: •... -
Page 16: Geo Dome Safety Information
GEO DOME SAFETY INFORMATION A Geo Dome is a recreational product. The information on this manual identify important safety precautions. The precautions are not all-inclusive, because a geo dome can be used in ways that this manual cannot cover completely. USING THE GEO DOME SAFELY Adult Supervision of Children Children using the geo dome must be supervised by adults at all times. -
Page 17: Instructions For Use
INSTRUCTIONS FOR USE WARNING To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use this equipment. Warnings and instructions for care, maintenance, and use of this geo dome are included to promote safe enjoyable use of this equipment. -
Page 18: Warning Label Placement
• On-site adult supervision at all times. Made in China • THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 4 TO 8, maximum weight of 81 lbs each. Skywalker Holdings, LLC Maximum Occupancy: 5 children PO Box 574, Brigham City, UT, 84302 USA www.skywalkertrampolines.com... -
Page 19: Playground Surfacing Materials Information
PLAYGROUND SURFACING MATERIALS The following information is from Section 4 of the United States Consumer Product Safety Commission’s (USCPSC) Outdoor Home Playground Safety Handbook for playground surfacing material. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing —... -
Page 20: Limited Warranty
LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase. - Page 21 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
