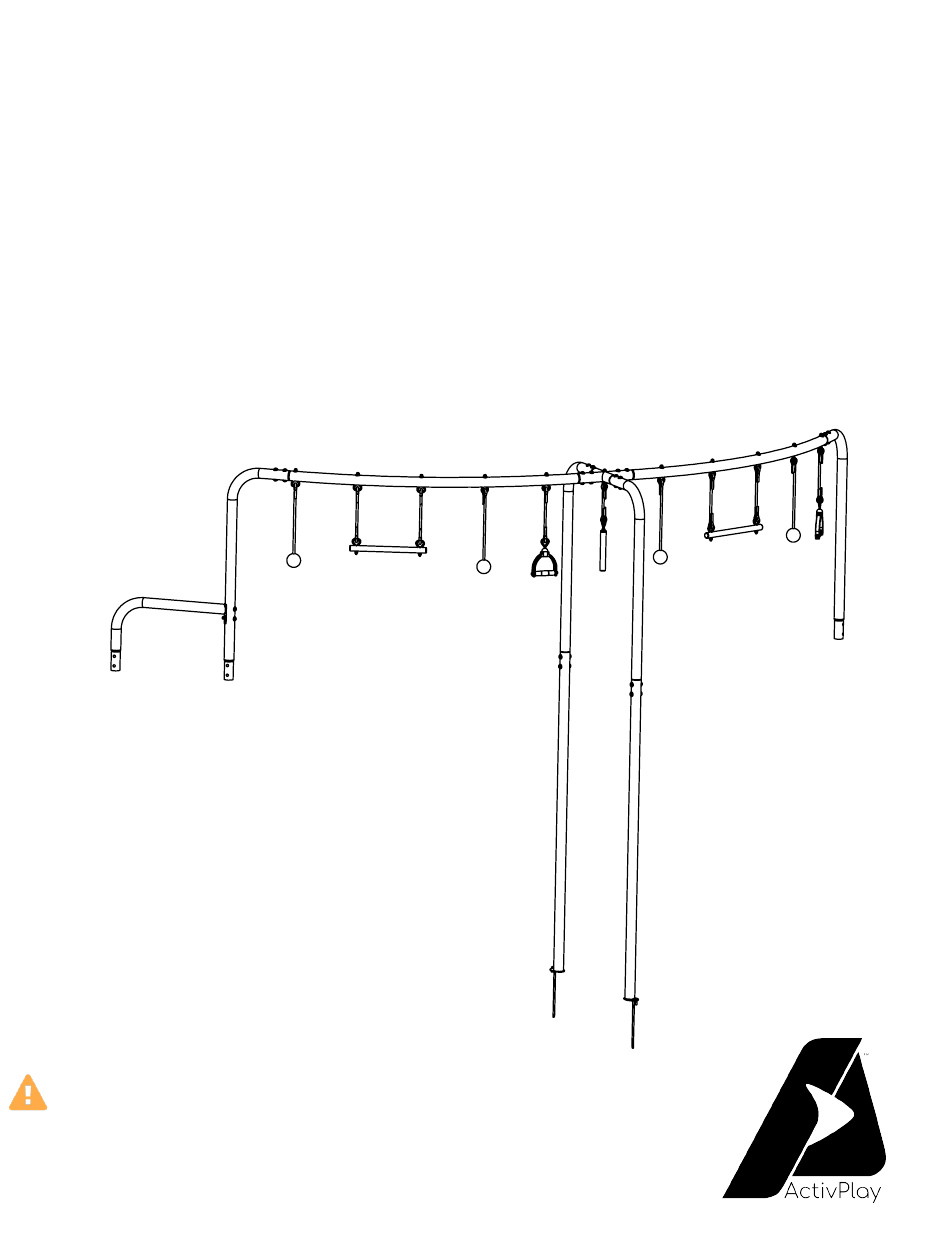

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL # SJG209
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Save this manual for future reference.
Ages:4-8
Maximum occupancy: 2 users
Skywalker Holdings LLC
Maximum weight: 162 lbs.
P.O. Box 574, Brigham City, UT 84302
Advertisement
Table of Contents
Related Manuals for Skywalker ActivPlay SJG209
Summary of Contents for Skywalker ActivPlay SJG209
- Page 1 MODEL # SJG209 WARNING Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Ages:4-8 Maximum occupancy: 2 users Skywalker Holdings LLC Maximum weight: 162 lbs. P.O. Box 574, Brigham City, UT 84302...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-5 Exploded Drawing................................6 Assembly....................................7-18 Installation....................................19 Maintenance & Care Information...........................20 Safety information................................21 Instructions for Use.................................22 Warning Label Placement............................23 Playground Surfacing Materials Information....................24 Limited Warranty.................................25-26 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR PRODUCT Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •... -
Page 3: Part List
PART LIST Key No. Qty. Description Curved Tube Frame Ball Handle Swing Gymnast bar Free Swinging Ring Curved Tube 1 Upright Joint Swinging Tube Top Frame 1 Top Frame 2 M8X65mm Button Bolt M8 Locknut M8X20mm Button Bolt M8 Arc Washer Curved Tube 2 Curved Tube Frame 2 Hex Key... -
Page 4: Part Identification
PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts. The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Curved Tube Ball Handle Swing Gymnast Bar Frame (x1) - Page 5 M8 Arc Washer (x44) Curved Tube 2 M8X20mm Button (11 pre-installed) (x1) Bolt (x32) Curved Tube Wrench (x1) Hex Key (x1) Frame 2 (x2) M8 Washer Anchor (x2) (x1)
-
Page 7: Assembly
ASSEMBLY READ THIS BEFORE YOU BEGIN • We’ve provided some tools to help with assembly, but you’re more than welcome to use your own • The assembly steps refer to parts by their descriptions and key numbers (see the part list on page 3) •... - Page 8 ASSEMBLY STEP 4 Now, attach the Curved Tube 2 (15) from the previous step to the smaller side of the Top Frame 1 (9). The round holes in the Top Frame 1 (9) should be facing Use four M8x20mm Button Bolts (13) and four M8 Arc M8X20mm M8 Arc Wa- Top Frame...
- Page 9 STEP 6 Now connect the Top Frame 2 (10) to the Joint (7) on the remaining short side with four M8X20mm Button Bolts (13) and four M8 Arc Washers (14) as shown. The round holes in the Top Frame 2 (10) should be facing up.
- Page 10 ASSEMBLY STEP 8 Attach Curved Tube Frame 2 (16) to each free end of the Joint (7). Secure each tube with four M8x20mm Button Bolts (13) and four M8 Arc Washers (14) as shown (a total of eight M8x20mm Bolts and eight M8 Arc Washers will be used.) At this point in assembly, the hanging jungle line M8X20mm...
- Page 11 STEP 10 Now attach a Gymnast Bar (3) next to the ball han- dle swing (2) you just placed on the Top Frame 1 (9). Use two M8 Arc Washers (14) and two M8 Locknuts (12) to secure. M8 Lock- Gymnast Bar M8 Arc Washer nut (x2)
- Page 12 ASSEMBLY STEP 12 Now, attach a Free Swinging Ring (4) to the Top Frame 1 (9) with the M8 Arc Washer (14) and a M8 Locknut (12) as shown. Free Swinging M8 Lock- M8 Arc Washer nut (x1) (x1) Ring (x1) (12) (14) STEP 13...
- Page 13 STEP 14 Attach another Ball Handle Swing (2) to the Top Frame 2 (10) with the M8 Arc Washer (14) and the M8 Locknut (12) as shown. Ball Handle M8 Arc Washer M8 Lock- nut (x1) Swing (x1) (x1) (10) (12) (14) (10)
- Page 14 ASSEMBLY STEP 16 Now attach the last Ball Handle Swing (2) to the Top Frame 2 (10) with the M8 Arc Washer (14) and the M8 Locknut (12) as shown. Ball Handle M8 Lock- M8 Arc Washer nut (x1) Swing (x1) (x1) (12) (14)
- Page 15 STEP 18 You will need another person for the next two steps. Attach the two Uprights (6) to the Curved Tube Frame 2 (16) in the middle of the Hanging Jungle Line with four M8X20mm Button Bolts (13) and four M8 Arc Washers (14). M8X20mm M8 Arc Wash- Upright (x2)
- Page 16 ASSEMBLY STEP 19 You will now need to remove the U Tube from your exisiting Hanging Bridge. After removing, keep the four M8x65mm Button Bolts, four M8 Arc Washers and two M8 Locknuts from the U tube. Now, insert the Curved Tube Frame (1) and the Curved Tube 2 (15) of the Hanging Jungle line to the top of the Hanging Bridge where you just removed the U tube.
- Page 17 STEP 20 Place an anchor (19) through the foot of each foot of the middle support tubes. Firmly push or hammer the anchors (19) into the ground. Take care that they are not a tripping hazard. Do not skip this step, the anchors (19) are used to prevent tipping, overturning, or lifting of the support legs.
- Page 18 ASSEMBLY STEP 21 Congratulations on completing your Activplay Hanging Jungle Line (See, we knew you could do it!) If you love the product, we want to hear from you! Please leave us a review on the retailer’s site you purchased this product from, on our Facebook page, or on any other review site.
-
Page 19: Installation
INSTALLATION WARNING! To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on the Hanging Jungle Line before assembly and use of this product. It is the responsibility of the owner and supervisors of this Hanging Jungle Line to make sure all users obey the safety instructions printed in this material. -
Page 20: Maintenance & Care Information
Congratulations and high five on successfully assembling your new Skywalker Sports Jungle Gym Base and/or accessories. Now, the best way to keep your new Skywalker Sports Jungle Gym Base and/or accessories in tip-top shape, is to follow this checklist periodically: At the beginning of each play season: •... -
Page 21: Safety Information
JUNGLE GYM SAFETY INFORMATION A Jungle Gym is a recreational product. The information on this manual identify important safety precautions. The precautions are not all-inclusive, because a Jungle Gym can be used in ways that this manual cannot cover completely. Using the Jungle Gym Safely Adult Supervision of Children Children using the Jungle Gym must be supervised by adults at all times... -
Page 22: Instructions For Use
INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use this equipment. Warnings and instructions for care, maintenance, and use of this Jungle Gym Base Station are included to promote safe enjoyable use of this equipment. -
Page 23: Warning Label Placement
User Max Weight Capacity Made in China SJG200 3 children 243 lbs. SJG201 2 children 162 lbs. Skywalker Holdings, LLC SJG202 1 child 81 lbs. PO Box 574, Brigham City, UT, 84302 U SA SJG203.1 1 child 81 lbs. www.Skywalkertrampolines.com SJG204 See SJG201 &... -
Page 24: Playground Surfacing Materials Information
PLAYGROUND SURFACING MATERIALS The following information is from Section 4 of the United States Consumer Product Safety Commission’s (USCPSC) Outdoor Home Playground Safety Handbook for playground surfacing material. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing —... -
Page 25: Limited Warranty
LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase. - Page 26 NOTE: Skywalker Holdings, LLC is not responsible or liable for indirect, special or consequential damaages arising out of or in connection with the use or performance of the product or other damages with respect to any econmic loss, loss of property, loss of revenue or profits, loss of enjoyment or use, cost of removal, installation or other consequential damages.
