Summary of Contents for Skywalker ActivPlay SJG208

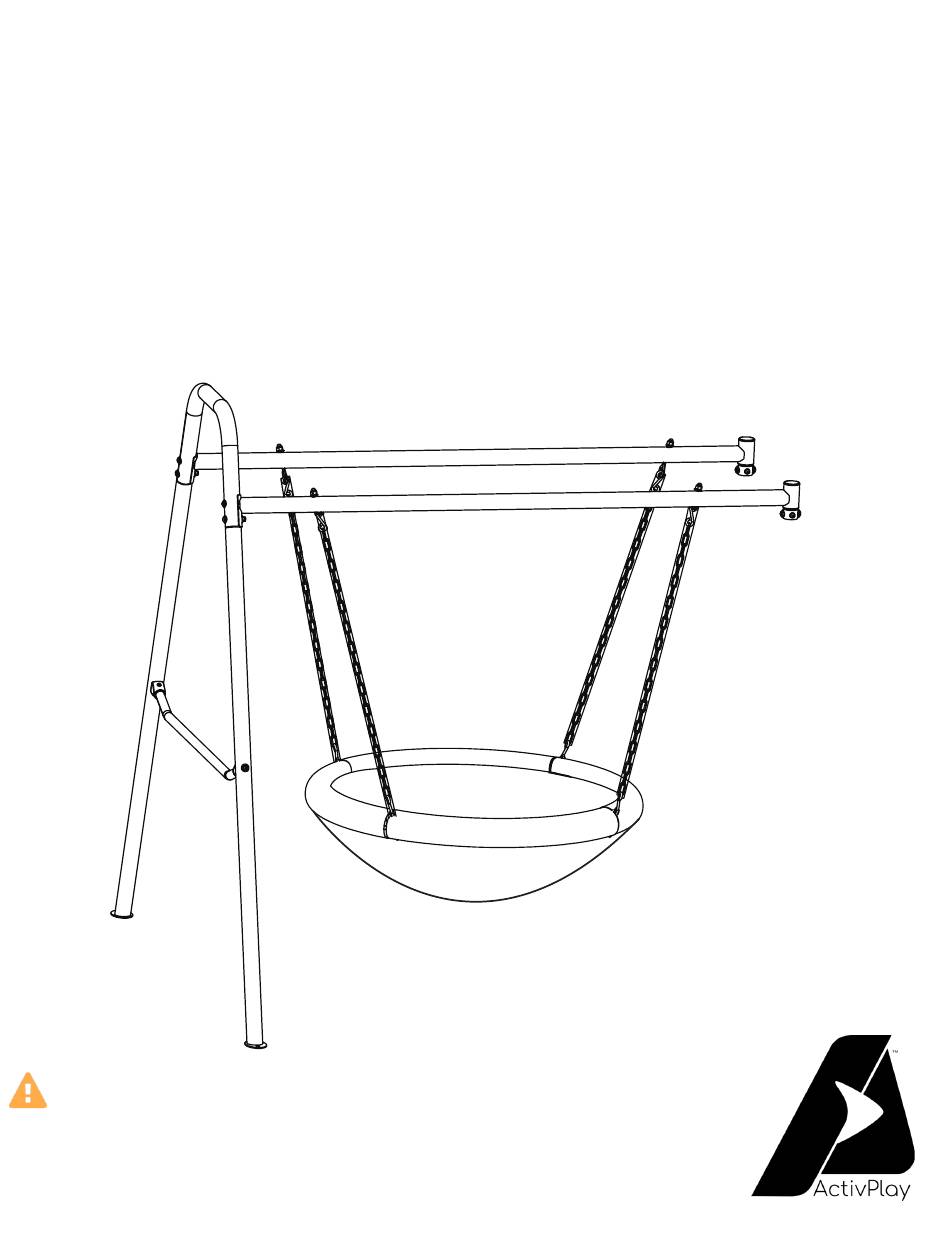

- Page 1 MODEL # SJG208 WARNING Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Ages:4-8 Maximum occupancy: 1 user Skywalker Holdings LLC Maximum weight: 81 lbs. P.O. Box 574, Brigham City, UT 84302...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-5 Exploded Drawing................................6 Assembly.....................................7-11 Installation.....................................12 Maintenance & Care Information.........................13 Safety information................................14 Instructions for Use...............................15 Warning Label Placement............................16 Playground Surfacing Materials Information....................17 Limited Warranty................................18-19 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR PRODUCT Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •... -
Page 3: Part List
PART LIST Key No. Qty. Description Top Frame 1 Top Frame 2 Upright Pole U Tube Connection Frame Swing Chain Border Tube Foam (pre-installed) Blue Plastic Sleeve Inner Cap (pre-installed) M8x65mm Button Bolt M8 Locknut M8 Arc Washer M8x20mm Button Bolt M8 Washer M8 Capnut M6x40mm Button Bolt... -
Page 4: Part Identification
PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts. The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Top Frame 1 (x1) Top Frame 2 (x1) Upright Pole (x2) Swing Chain... - Page 5 M8 Arc Washer M8X20mm Button M8 Washer (x16) Bolt (x8) (x8) M6X40mm Button M6 Washer M8 Capnut (x8) Bolt (x2) (x2) M8X35mm Button Saucer Swing (x1) M6 Locknut (x2) Bolt (x2) Wrench (x1) Hex Key (x1)
-
Page 6: Exploded Drawing
EXPLODED DRAWING (10) (16) (16) (16) (10) (13) (13) (16) (11) (13) (13) (15) (14) (15) (13) (12) (14) (15) (13) (13) (11) (14) (14) (15) (13) (13) (12) (14) (11) (13) (20) (17) (18) (13) (17) (20) (18) (19) (13) (19) (15) -
Page 7: Assembly
ASSEMBLY READ THIS BEFORE YOU BEGIN • We’ve provided some tools to help with assembly, but you’re more than welcome to use your own • The assembly steps refer to parts by their descriptions and key numbers (see the part list on page 3) •... - Page 8 ASSEMBLY STEP 3 Slide an upright pole (3) onto each side of the connec- tion frame from step 2. Make sure the connection frame (5) ends are pointing up and the feet of the upright poles (3) are down like the image below. Attach the connection frame (5) and the upright poles (3) with two M8x35mm M8X35mm But- M8 Arc Wa-...
- Page 9 STEP 5 Remove two plastic caps from the jungle gym base. Slide the top frame 1 (1) and the top frame 2 (2) into the now open poles of the jungle gym base. Secure both in place using eight M8x20 bolts (14) , four M8 arc washers (13) and four M8 washers (15).
- Page 10 ASSEMBLY STEP 7 To secure the tubes together, insert the short end of a swing chain (6) into the hole where two swing frame tubes (7) connect. Use a M8 washer and (14) M8 capnut (16) to secure. Repeat this step to attach the remaining swing chain M8 Capnut M8 Washer (6) and swing frame tubes (7) together.
- Page 11 STEP 9 Congratulations on completing your Saucer Swing (See, we knew you could do it!) If you love the product, we want to hear from you! Please leave us a review on the retailer’s site you purchased this product from, on our Facebook page, or on any other review site.
-
Page 12: Installation
INSTALLATION WARNING! To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on the Saucer Swing Set before assembly and use of this product. It is the responsibility of the owner and supervisors of this Saucer Swing Set to make sure all users obey the safety instructions printed in this material. -
Page 13: Maintenance & Care Information
Congratulations and high five on successfully assembling your new Skywalker Sports Jungle Gym Base and/or accessories. Now, the best way to keep your new Skywalker Sports Jungle Gym Base and its accessories in tip-top shape, is to follow this checklist periodically: At the beginning of each play season: •... -
Page 14: Safety Information
JUNGLE GYM SAFETY INFORMATION A Jungle Gym is a recreational product. The information on this manual identify important safety precautions. The precautions are not all-inclusive, because a Jungle Gym can be used in ways that this manual cannot cover completely. Using the Jungle Gym Safely Adult Supervision of Children Children using the Jungle Gym must be supervised by adults at all times... -
Page 15: Instructions For Use
INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use this equipment. Warnings and instructions for care, maintenance, and use of this Jungle Gym Base Station are included to promote safe enjoyable use of this equipment. -
Page 16: Warning Label Placement
1 child 81 lbs. SJG203.1 1 child 81 lbs. Made in China SJG204 See SJG201 & SJG203.1 Skywalker Holdings, LLC SJG205 1 child 81 lbs. SJG206 See SJG205 & SJG208 PO Box 574, Brigham City, UT, 84302 USA SJG207 See SJG202 & SJG209 www.skywalkertrampolines.com... -
Page 17: Playground Surfacing Materials Information
PLAYGROUND SURFACING MATERIALS The following information is from Section 4 of the United States Consumer Product Safety Commission’s (USCPSC) Outdoor Home Playground Safety Handbook for playground surfacing material. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing —... -
Page 18: Limited Warranty
LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase. - Page 19 NOTE: Skywalker Holdings, LLC is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenue or profits, loss of enjoyment or use, cost of removal, installation or other consequential damages.
