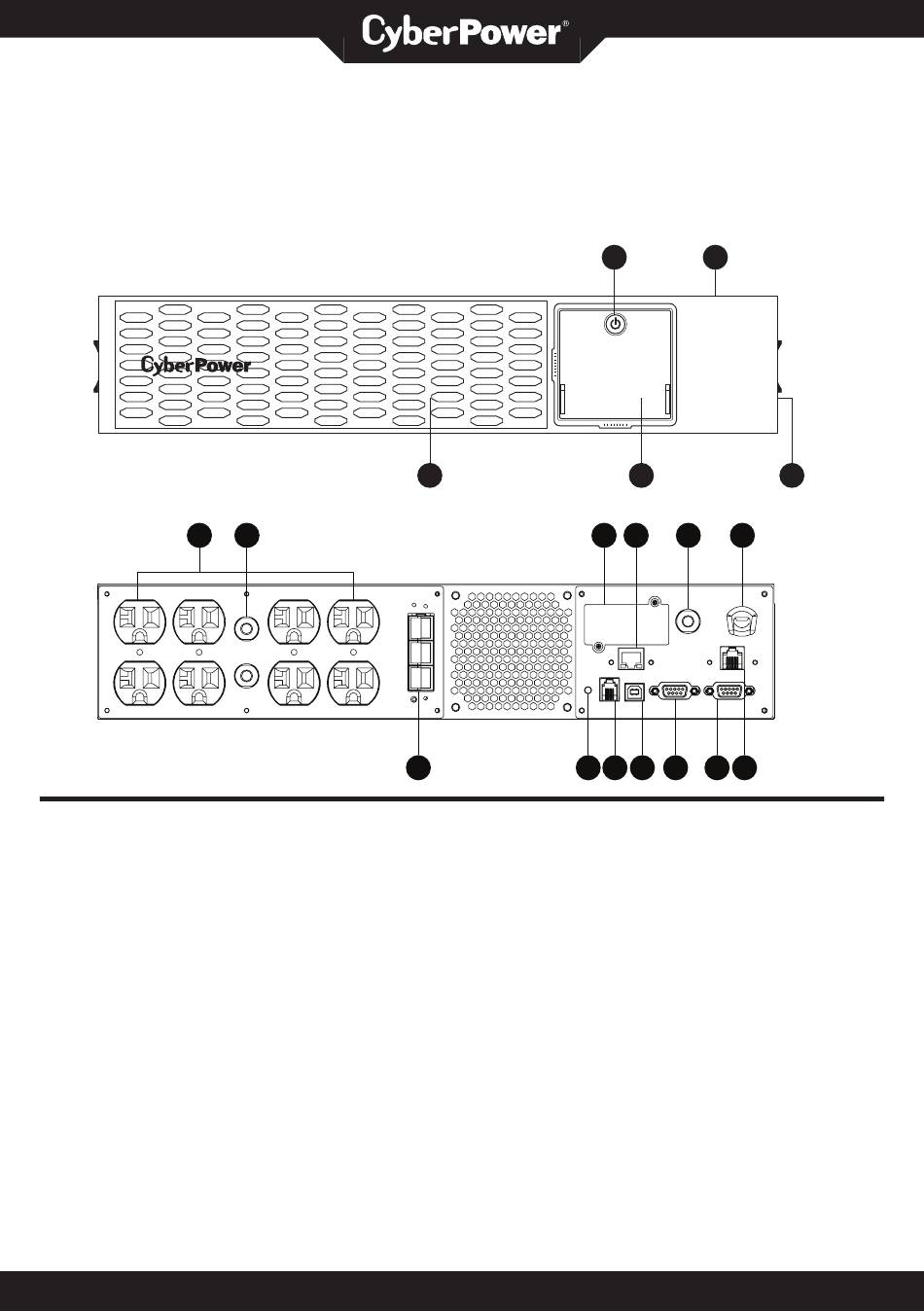

FEATURES

1. Power Switch

2. Toolless Battery Access Door

(behind faceplate)

3. Front Panel Access Tabs

(behind faceplate)

4. LCD Module

5. Faceplate

4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com

YOUR ULTIMATE ALLY IN POWER

SMART APP SINEWAVE UPS SERIES

PR2200RT2UCN / PR2200RTXL2UCN

USER MANUAL

Cyber Power Systems (USA), Inc.

6. Battery Backed and Surge

Protected Outlets

7. Output Circuit Breaker

8. SNMP/HTTP Network Slot

9. Cloud Monitoring (Ethernet Port)

10. Input Circuit Breaker

11. AC Inlet

12. BM Port (PR2200RTXL2UCN)

13. Dry Contact

14. Serial Port

15. USB Port

16. EPO/ROO Port

17. TVSS Screw

18. Extended Battery Module

Connector Socket (PR2200RTXL2UCN)

Table of Contents

Need help?

Do you have a question about the Smart App Sinewave PR2200RT2UCN and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberPower Smart App Sinewave PR2200RT2UCN

Page 1 YOUR ULTIMATE ALLY IN POWER SMART APP SINEWAVE UPS SERIES PR2200RT2UCN / PR2200RTXL2UCN USER MANUAL FEATURES 1. Power Switch 6. Battery Backed and Surge Protected Outlets 2. Toolless Battery Access Door 7. Output Circuit Breaker (behind faceplate) 8. SNMP/HTTP Network Slot 3.
Page 2: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a CyberPower product. Please take a few minutes to register your product at www.cyberpowersystems.com/registration. Registration certifies your product’s warranty, confirms your ownership in the event of a product loss or theft and entitles you to free technical support.
Page 3: Installing Your Ups System
For optimal system performance keep the load below 80% of OVERVIEW the unit’s rated capacity. The CyberPower Smart App Sinewave Uninterruptible Power Supply PR2200RT2UCN/PR2200RTXL2UCN features INSTALLATION 2430 Joules of surge protection, provides...
Page 4 INSTALLING YOUR UPS SYSTEM - CONTINUED Rack Installation for 2-Post Rack Attach the brackets with provided M5 flat head screws. 2. Affix the product to the rack with suitable M5/M6 screws and cage nuts. (M5 truss head screws are provided with the product in the mechanical accessory box.) Rack Installation for 4-Post Rack Use the provided M5 flat head screws to attach the brackets and provided M5 pan head screws for hanging brackets.
Page 5: Basic Operation
A. Your UPS may be used immediately upon the Enter button to turn on the UPS. The receipt. However, charging the battery for display screen will show CyberPower in the at least 12 hours is recommended to ensure first line and the UPS model in the second the battery reaches its maximum charge.
Page 6: Cleaning And Maintenance
CLEANING AND MAINTENANCE CAUTION! To reduce the risk of electric shock, do not remove the cover except to service the battery. There are no user-serviceable parts inside except for the battery. For battery replacement, please refer to BATTERY REPLACEMENT section. CAUTION! Turn off the unit and unplug it from the AC power source before cleaning.
Page 7: Network Operation
This product features an Ethernet port for Cloud Connection, which makes it easy to monitor CyberPower UPS systems from anywhere. Follow below steps to get your UPS on Cloud. Hardware installation: Connect the Cloud Monitoring (Ethernet Port) on the UPS rear panel to a wall jack or network switch using a suitable Ethernet cable.
Page 8 Wait till the UPS is successfully configured. 5. Start monitoring your UPS! In addition to the Mobile App, you can access the PowerPanel Cloud account via a web browser: https://powerpanel.cyberpower.com. For more information, please refer to the PowerPanel Cloud User’s Manual.
Page 9 LCD OPERATION GUIDE Display Interface Power Switch/Power On Indicator 2. Online Indicator 3. Fault/Warning Indicator 4. On Battery Indicator 5. Battery Fault Indicator 6. Display Screen 7. Menu Button 8. Esc Button 9. Up Button 10. Down Button 11. Enter Button Menu Enter Basic Operation...
Page 10 LCD OPERATION GUIDE - CONTINUED - table continued Menu Item UPS Model Name UPS Firmware Version UPS Serial Number IP Address BM Status About Last Battery Change Date MAC ID UPS Battery Information Next Battery Change Date Service Port number Subnet Mask Output Voltage Schedule Test...
Page 11 LCD OPERATION GUIDE - CONTINUED Menu / Ambient Setup Item Default Option Description When Active is selected, the UPS will change Active related setup functions in this menu automatically Inactive to work under low energy consumption. ECO Mode Active You can also set the functions in this menu Active - Customized independently and then go back to Eco Mode to have a check.
Page 12 LCD OPERATION GUIDE - CONTINUED Menu / Outlet Control Item Default Option Description The amount of time that the outlets will wait before Delay Turn On 4 seconds 0-600 seconds actual startup. The amount of time that the outlets will wait before Delay Turn Off 4 seconds 0-600 seconds...
Page 13 LCD OPERATION GUIDE - CONTINUED Menu / Logs All kinds of events are recorded and the UPS will show the last 10 events in this menu. Events are categorized into four sorts and shown in a capital letter in a single event log on the display screen: (F) Fault, (W) Warning, (S) Shutdown, and no letter for a normal transfer event.
Page 14 LCD OPERATION GUIDE - CONTINUED - table continued Item Default Option Description Select the way to access the IP/Subnet Mask/ DHCP IP Access DHCP Gateway. This shows “No Web Device” when no Manual IP Setup RMCARD is installed. Change the IP Access setting to manual IP Setup Auto-sensing Auto- and then this item can be adjusted manually.
Page 15 LED Indicator Alarm Line 1 Line 2 E01-Overcharge: Contact UPS Fault! Beeps once every 2 seconds* CyberPower for repair. E03-No Charge: Contact UPS Fault! CyberPower for repair. E20-Output Short: Connected UPS Off! equipment may have problems, Beeps for 3 seconds remove them and check.
Page 16: Installation
EPO AND ROO CONFIGURATION The Emergency Power Off (EPO) port is a safety feature that can be used to immediately shut down the UPS and cut off its power supply to connected equipment. It is necessary to manually press the power switch on the LCD module to restart the UPS and reapply power to connected equipment.
Page 17: Dry Contact
DRY CONTACT This UPS offers users the solution for UPS status monitoring via two output relays. Refer to Network Operation in this manual, verifying the UPS is connected to a computer with PowerPanel Business software installed or is equipped with RMCARD. Follow below circuit to wire your dry contact port and choose your preferred monitoring status via those interfaces.
Page 18: Battery Replacement
BATTERY REPLACEMENT Read and follow the important safety instructions before servicing the batteries. Visit the CyberPower official website at www.cyberpowersystems.com or contact your dealer for more information on replacement batteries. The battery replacement video is available online. Scan the QR code below for detailed information.
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL PR2200RT2UCN PR2200RTXL2UCN GENERAL UPS Topology Line-Interactive Energy Saving GreenPower UPS Bypass Technology INPUT Nominal Input Voltage 100/110/120V Input Frequency 50-60Hz +/- 3Hz (Auto-sensing) Plug Type NEMA L5-30P Power Cord Length 10 ft. (3.0 m) OUTPUT Power Capacity 2200VA/2200W On Battery Output Voltage 100/110/120 VAC +/- 5%...
Page 20: Troubleshooting
Batteries are discharged. Recharge the UPS for at least 3 hours. UPS does not provide UPS has been damaged by a surge Contact CyberPower Systems at: power to equipment. or spike. cyberpowersystems.com for repair. NCL outlets will be turned on Non-critical outlets have turned off automatically as utility is restored.
Page 21 If the fault persists, take note on display screen. and contact CyberPower for repair. The continuous generator capacity rating must be at least twice the total load, including the UPS and all other devices attached to the generator;...
Page 22: Fcc Compliance Statement
CyberPower is the warrantor under this Limited Warranty. For further information please feel free to contact CyberPower at: Cyber Power Systems (USA), Inc. 4241 12th Ave E., STE 400, Shakopee, MN 55379; call us at (877) 297-6937; or submit a web ticket online at cyberpowersystems.com/support.
