Summary of Contents for LSI LASTEM Sphensor PRMPB0401

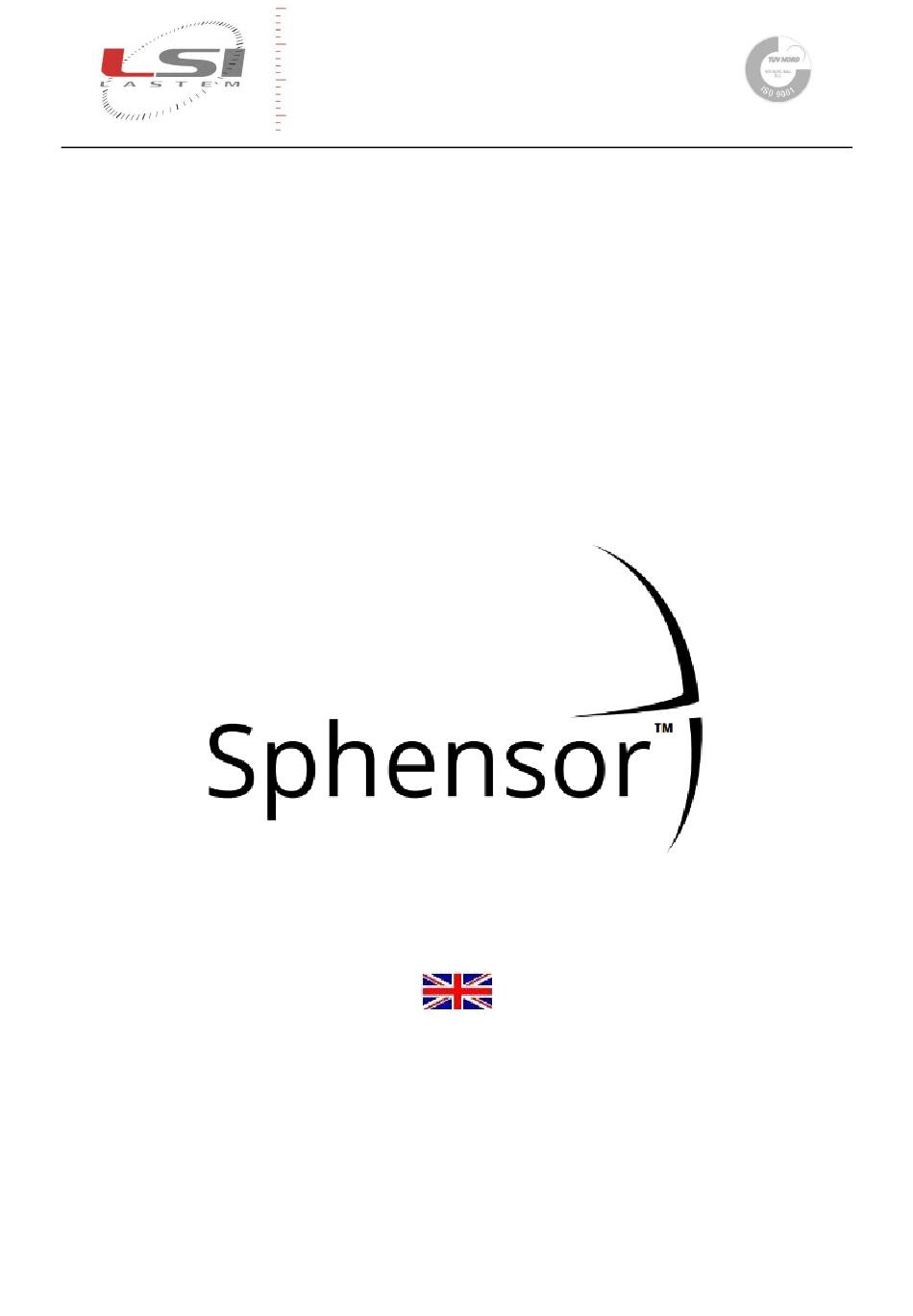

- Page 1 Environmental monitoring solutions User manual...
- Page 2 Notes on this manual The information included in this manual may be modified without notice. No part of this manual may be reproduced in any form or by any electronic or mechanical means, for any use, without LSI LASTEM’s written permission.
-
Page 3: Table Of Contents
Via stainless steel base ......................28 6.3.5 Via easel ........................... 28 Repeater installation ........................28 Diagnostics ............................... 29 Functional status LEDs ........................29 Sphensor Gateway functional status LEDs ..................30 Technical specifications ........................... 31 LSI LASTEM SRL INSTUM_04291 Page 3 / 45... - Page 4 Diagnostics snapshots ........................38 10.3 Status snapshots ..........................39 11 Video tutorials ............................40 12 Disposal..............................41 13 Contacting LSI LASTEM ..........................41 Appendix ................................42 Repeater TXMRB1110 ..........................42 Sphensor gateway TXRGB1001 ........................43 Sphensor gateway TXRGB1101 ........................44 Sphensor gateway TXRGC1001........................
-
Page 5: Introduction
Sphensor Gateway. Sphensor Gateway sends the received values to LSI LASTEM Cloud Service or to an MQTT broker, either within the company network or reachable from outside via the Internet. Sphensor Gateway communicates over the network via LAN network connection (Ethernet) or via Wi-Fi radio or 3G/4G mobile phone. -
Page 6: Models
√ √ √ PRMPA0421 √ PRMPA0422 √ √ PRMPA0423 √* √* √ √ √ PRMPA0424 √ √ Tab. 1 – Available measurements per sensor model. * measurements related to the sensor cell. LSI LASTEM SRL INSTUM_04291 Page 6 / 45... -
Page 7: Operating Limitations
The Repeater can accept up to 10 sensors. If there are multiple sensors, other repeaters or sensors with a repetition function shall be used. LSI LASTEM SRL INSTUM_04291 Page 7 / 45... -
Page 8: Safety Requirements
Do not operate the product in an explosive atmosphere. Lithium-ion battery inside. Replacing the battery with an incorrect type can cause risk of explosion. For more information about safety regulations, please refer to manual INSTUM_05290. LSI LASTEM SRL INSTUM_04291 Page 8 / 45... -
Page 9: Getting Started
2. Select Sphensor Manager and select [Install]. 3. Follow the instructions indicated until the installation is complete. On this topic watch the video tutorial Sphensor #1 - Sphensor Manager Pro- gram Installation LSI LASTEM SRL INSTUM_04291 Page 9 / 45... -
Page 10: Sphensor Gateway Installation
1. From the Windows Start menu choose LSI-Lastem, then Sphensor Manager. 2. Wait for the program to recognize it (in the example are shown the information related to the rec- ognized Sphensor Gateway with SN 20100382). LSI LASTEM SRL INSTUM_04291 Page 10 / 45... - Page 11 5. Press [CONNECT] to access to the main window of Sphensor Manager. The window shows the list of sensors that Sphensor Gateway receives via radio in real time. Initially there is no sensors in the list. LSI LASTEM SRL INSTUM_04291...
-
Page 12: Sensor Reception
3. Check the Sphensor Manager for information about each sensor (one line per sensor). 4. Choose the menu item View All Measures to view the measurements of all sensors received, consid- ering that they are updated according to the transmission rate programmed in each sensor. LSI LASTEM SRL INSTUM_04291 Page 12 / 45... - Page 13 Sphensor – User manual On this topic watch the video tutorials Sphensor #3 - Unbox the Sphensor #4 - Connec- Sphensor sensor tion LSI LASTEM SRL INSTUM_04291 Page 13 / 45...
-
Page 14: Tips On Building A Sphensor Sensor Network
You can, however, identify a sensor or repeater via software, via the Find me function of the Utilities menu of Sphensor Manager. On this topic watch the video tutorials Sphensor #5 - Positioning Sphensor #6 - Network inside the building setup LSI LASTEM SRL INSTUM_04291 Page 14 / 45... -
Page 15: Configuration And Identification
Version: is the firmware version of the sensor. Last Message type: is the type of message received. LSI LASTEM SRL INSTUM_04291 Page 15 / 45... - Page 16 4. If the line with configuration information does not appear, choose Read to receive the default sensor configuration. This will be received as soon as the sensor communicates with Sphensor Gateway (see PARENT POLLING RATE sensor parameter). LSI LASTEM SRL INSTUM_04291 Page 16 / 45...
- Page 17 TRANSMISSION RATE is set to 10 seconds and we have a sensor that needs 10 seconds to acquire all the measurements, to avoid risks and get measurements in error, set the INST. VALUES TRANSMISSION OFFSET parameter to a value greater than 0. for example 2 seconds, LSI LASTEM SRL INSTUM_04291 Page 17 / 45...
- Page 18 11 to 26 while the remaining parameters are hexadecimal. These must respect the length shown in the figure. In case of transmission disturbance it is possible to modify the frequency channel by modifying the CHANNEL parameter. 9. The RADIO tab specifies the radio operating parameters. LSI LASTEM SRL INSTUM_04291 Page 18 / 45...
- Page 19 User Calibration, Forced range, Validity range, Remap: these parameters are currently re- served for use by LSI LASTEM technicians. To access the window with the measurement parameters, double-click on the measurement. The displayed parameters are the following: ➢...
-
Page 20: Repeater Configuration
5.3 Sphensor Gateway configuration Once the sensors and any repeaters have been configured, proceed to the configuration of Sphensor Gate- way. LSI LASTEM SRL INSTUM_04291 Page 20 / 45... - Page 21 4. The ENDPOINTS tab displays the MQTT servers configured in the device. In the figure are represented two servers, one local (localhost) and one called LSI Lastem, both configured to receive the data un- encrypted and to have control of Sphensor Gateway.
-
Page 22: Verification Of Pre-Installation Operation
2. If the model in question is equipped with a power supply, remove the USB power cable from the sensor. 3. Remove the lower half-sphere, taking care not to disconnect the internal cables. LSI LASTEM SRL INSTUM_04291 Page 22 / 45... -
Page 23: Prmpv042X Sensors Configuration Restore
5. Holding down the DFLT key (§Fig. 3), press the RESET button; then release the RESET button and then the DFLT button. On/Off RESET On/Off DFLT Fig. 3 – Positioning keys on board type sensors PRMPv042x. (Default) Switch off the sensor via the On/Off button. LSI LASTEM SRL INSTUM_04291 Page 23 / 45... -
Page 24: Repeater Factory Reset
3. Holding down the DFLT key (§Fig. 3), press the RESET button; then release the RESET button and then the DFLT button. 4. Fix the cover to the repeater. 5. Plug the repeater into the wall outlet. DFLT RESET (Default) On/Off Fig. 4 – Repeater. LSI LASTEM SRL INSTUM_04291 Page 24 / 45... -
Page 25: Installation Of Sphensor Equipment
Install Sphensor repeaters if the distance between sensors and Sphensor Gateway is excessive or in the pres- ence of obstacles that are difficult to overcome by radio transmissions and, above all, to allow the Thread LSI LASTEM SRL INSTUM_04291 Page 25 / 45... -
Page 26: Installation
Before any wall mounting, check the correct data transmission. ➢ Place the sensors in the preset locations, checking their reception again on the software. In case of wall mounting, it is recommended to first check the radio signal strength. LSI LASTEM SRL INSTUM_04291 Page 26 / 45... -
Page 27: Sensors Installation
MK5351. The attachment to the ball is the same as that of the stem. Remove from these the M3 nut and place it in the special quarry, then tighten the component with the M3x10 screw supplied. LSI LASTEM SRL INSTUM_04291 Page 27 / 45... -
Page 28: Via Stainless Steel Base
M4 stud. This thread allows positioning also on various photographic media on the market (tripods, pliers, articulated arms, etc.) 6.4 Repeater installation The TXMRB1110 repeater is equipped with a 2-pole S10 type plug, so it can be inserted into a suitable wall socket. LSI LASTEM SRL INSTUM_04291 Page 28 / 45... -
Page 29: Diagnostics
The alarm condition signalling is indicated by red+blue coloration and is defined as follows: • No detected functional abnormalities: no signalling. • Alarm detected: a short blink followed by one or more flashes depending on the alarm logic index configured in the sensor. LSI LASTEM SRL INSTUM_04291 Page 29 / 45... -
Page 30: Sphensor Gateway Functional Status Leds
On: device in operation mode Alarm/Err Red On: presence of alarms/configuration error In case of alarm or error signal, restart Sphensor Gateway using the On/Off switch on the device or via the Sphensor Manager software. LSI LASTEM SRL INSTUM_04291 Page 30 / 45... -
Page 31: Technical Specifications
0.05 µW/cm Accuracy ±5% VM Response to cosine Outside Measures type No. 2 external temperatures, digital type sensor (1 for temperature PRMPB0406), compatible with LSI LASTEM sensors (only PRMPB0405 Measuring range -40 ÷ 125 °C Resolution 0.01 °C and PRMPB0406) Accuracy ±0.1 °C... - Page 32 -30 ÷ 60 °C temperature Estimated non-rechargeable battery life Sampling Rate PRMPB0401 PRMPB0402 PRMPB0403 PRMPB0404 30’’ 2 year and 6 months 1’ 4 years 2’ 5 years 5’ 6 years 10’ 7 years LSI LASTEM SRL INSTUM_04291 Page 32 / 45...
-
Page 33: Prmpa0423 Sensors
Settable On the basis of the sampling rate or only on the basis of minimum variation in the measured size. General Level of protection IP40 information Operating -30 ÷ 60 °C temperature LSI LASTEM SRL INSTUM_04291 Page 33 / 45... -
Page 34: Txmrb1110 Repeater
Relays number Type SPDT (Normal Open e Normal Close). Imax= 2.8 A-Vmax= 260 Vac General Protection grade IP20 information Operative temperature -20 ÷ 60 °C Dimensions (HxLxW) 285x180x94 mm Weight 500 g LSI LASTEM SRL INSTUM_04291 Page 34 / 45... -
Page 35: Sphensor Gateway Txrgc1001
Connection 1 Ethernet RJ45 tion Connection 2 2 x USB 3.1 for external Internet key 2 x USB 2.0 Alarm/Actuator Relay 4 (NO or NC operation), max 230 Vac @ 3 A LSI LASTEM SRL INSTUM_04291 Page 35 / 45... -
Page 36: Maintenance
If the upper half-sphere is unscrewed during the operation, do not separate it from the diffuser ring to avoid damage, but try to screw it back in the original position as indicated by the instructions above. LSI LASTEM SRL INSTUM_04291 Page 36 / 45... -
Page 37: Application Protocol
• The channel_index field contains the zero-based index of the channel of the measurement cell that generated the measurement. LSI LASTEM SRL INSTUM_04291 Page 37 / 45... -
Page 38: Diagnostics Snapshots
For diagnostic purposes you can use the topic: sphensor/<sphensor_gateway_serial>/<sensor_serial>/diagnostic Here is an example of a message received: "error_rate": 0. "uptime": "3:28:59", "memory_used": 0. "radio": "rloc": "016C", "parent_rloc": "006C", "in_rssi": -50. "tx_power": 0. "in_quality": 3, "out_quality": 3, LSI LASTEM SRL INSTUM_04291 Page 38 / 45... -
Page 39: Status Snapshots
The rssi field is the power of the radio signal; the range is -100÷0 (-100 when the signal is bad, 0 when it is good). • The battery field is the battery level; the value 255 indicates that the measurement is not available. LSI LASTEM SRL INSTUM_04291 Page 39 / 45... -
Page 40: Video Tutorials
Title YouTube link QR Code Sphensor Manager: Installation Sphensor #1 - Sphensor Manager Program from the LSI LASTEM web site Installation Unbox the Sphensor Gateway Sphensor #2 - Unbox the Gateway Unbox the Sphensor Sensor Sphensor #3 - Unbox the Sphensor sensor... -
Page 41: Disposal
(RAEE). Its collection at the end of its life must be separated from other waste. LSI LASTEM is responsible for the conformity of the production, sale and disposal chain of the product, ensuring the rights of the user. Improper disposal of this product will result in law penalties. -
Page 42: Appendix
Sphensor – User manual Appendix Repeater TXMRB1110 LSI LASTEM SRL INSTUM_04291 Page 42 / 45... -
Page 43: Sphensor Gateway Txrgb1001
Sphensor – User manual Sphensor gateway TXRGB1001 LSI LASTEM SRL INSTUM_04291 Page 43 / 45... -
Page 44: Sphensor Gateway Txrgb1101
Sphensor – User manual Sphensor gateway TXRGB1101 LSI LASTEM SRL INSTUM_04291 Page 44 / 45... -
Page 45: Sphensor Gateway Txrgc1001
Sphensor – User manual Sphensor gateway TXRGC1001 LSI LASTEM SRL INSTUM_04291 Page 45 / 45...
