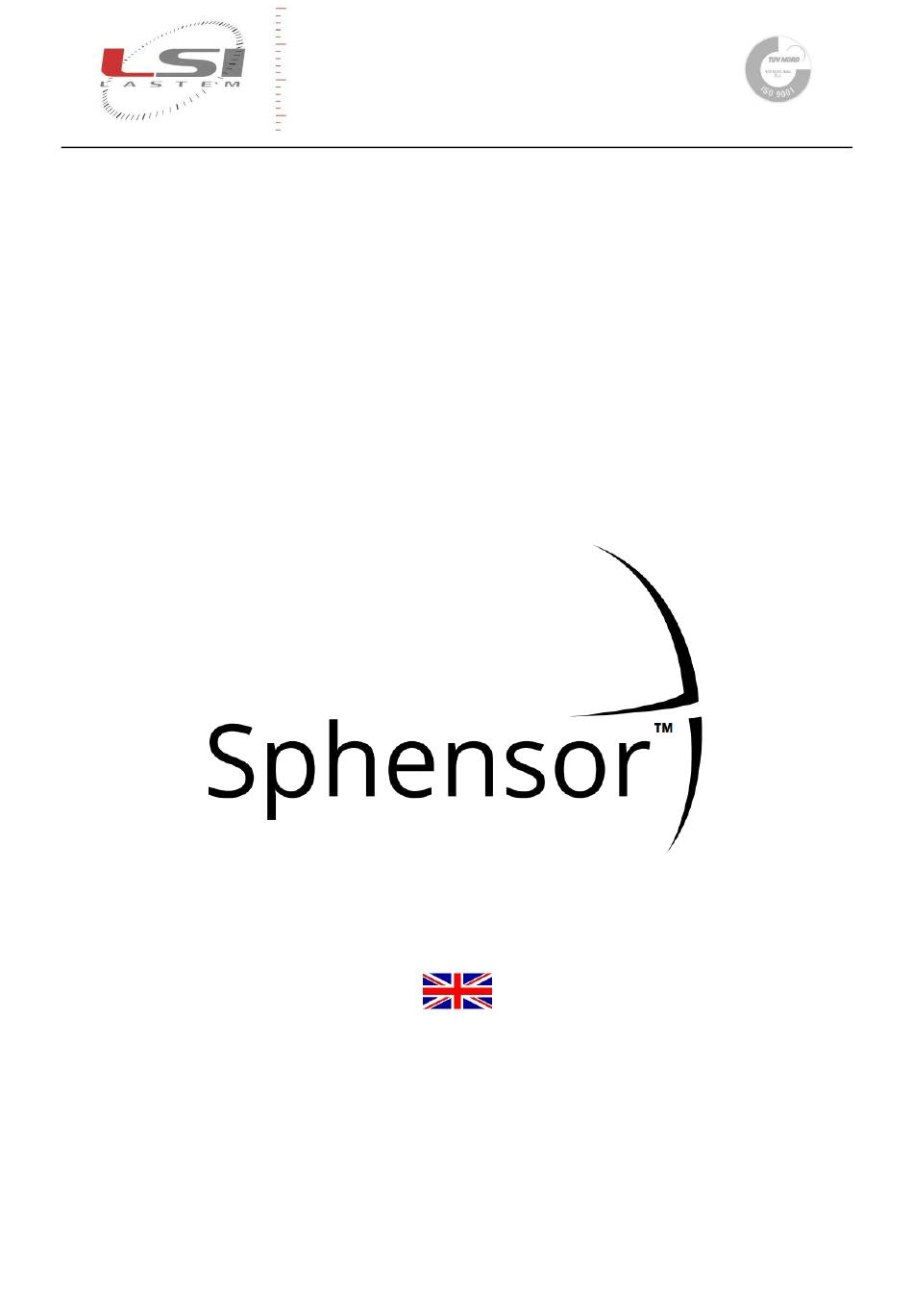

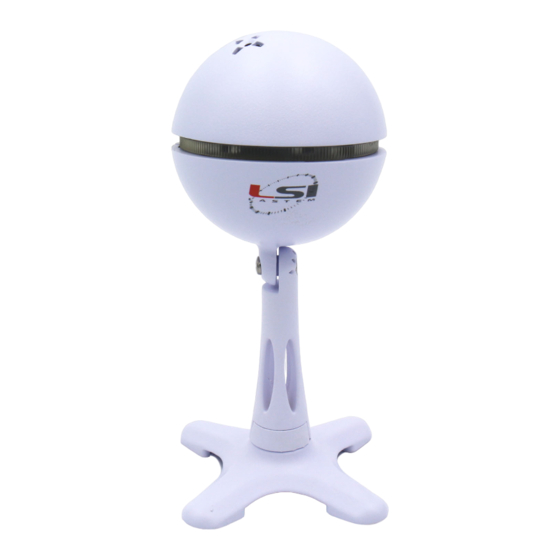

- Page 1 Environmental monitoring solutions User manual...
- Page 2 Sphensor – User manual Document Sphensor – User manual Pages Revisions list Issue Date Author Description of changes Origin 10/11/2020 Reschiotto - Astori LSI LASTEM SRL INSTUM_04291 Pag. 2 / 32...
- Page 3 Notes on this manual The information included in this manual may be modified without notice. No part of this manual may be reproduced in any form or by any electronic or mechanical means, for any use, without LSI LASTEM’s written permission.
-
Page 4: Table Of Contents
PRMPA0401. PRMPA0402, PRMPA0403, PRMPA0404, PRMPA0405 sensors ........ 25 PRMPA0423 sensors ........................27 Maintenance ............................28 Battery replacement ........................28 Application protocol ..........................29 Instanteous data snapshots ......................29 Diagnostics snapshots ........................30 Status snapshots ..........................31 LSI LASTEM SRL INSTUM_04291 Pag. 4 / 32... - Page 5 Sphensor – User manual 10 Disposal..............................32 11 Contacting LSI LASTEM ..........................32 LSI LASTEM SRL INSTUM_04291 Pag. 5 / 32...
-
Page 6: Introduction
Sphensor Gateway. Sphensor Gateway sends the received values to LSI LASTEM Cloud Service or to an MQTT broker, either within the company network or reachable from outside via the Internet. Sphensor Gateway communicates over the network via LAN network connection (Ethernet) or via Wi-Fi radio or 3G/4G mobile phone. - Page 7 Programming functions via software on PC. • Open architecture for easy integration into third-party systems, through data transmission in mar- ket format and standard protocols (MQTT, JSON). • Additional Sphensor Gateways with back-up functions can be installed. LSI LASTEM SRL INSTUM_04291 Pag. 7 / 32...
-
Page 8: Models
In the realization of the Sphensor sensor network it is necessary to keep in mind some limitations regar- ding sensors of the "low power" type (indicated in Errore. L'origine riferimento non è stata trovata.). In this case: LSI LASTEM SRL INSTUM_04291 Pag. 8 / 32... -
Page 9: Safety Requirements
Do not operate the product in presence of water or moisture. Do not operate the product in an explosive atmosphere. Lithium-ion battery inside. Replacing the battery with an incorrect type can cause risk of explosion. LSI LASTEM SRL INSTUM_04291 Pag. 9 / 32... -
Page 10: Configuration And Identification
Sphensor Manager. 3.1 Installing the Sphensor Manager software The Sphensor Manager software is located on the MW6501 USB flash drive - LSI LASTEM products. Alterna- tively it can be downloaded from the website www.lsi-lastem.com. Run the Setup program for installation. - Page 11 5. Then press [OPEN]. You will have access to the main window of Sphensor Manager. The window shows the list of sensors that Sphensor Gateway receives via radio in real time. Initially there is no sensor in its list. LSI LASTEM SRL INSTUM_04291 Pag. 11 / 32...
- Page 12 RLOC: the pair of RLOC belonging to the sensor and to its parent; through these pairs it is possble to reconstruct the hierarchical structure of the devices connected to the PAN. 7. Select the line of the sensor to edit, then choose Sensor Configuration. LSI LASTEM SRL INSTUM_04291 Pag. 12 / 32...
- Page 13 ➢ CONFIG DATE/TIME: is the configuration creation date/time. CONFIG VERSION: is the version of the configuration. 10. The DATA LOGGER tab contains the parameters related to the measurement acquisition. LSI LASTEM SRL INSTUM_04291 Pag. 13 / 32...
- Page 14 ➢ CONNECTION TIMEOUT: connection timeout, if this time is exceeded in case of no connec- tion, the sensor will automatically restart. With 00:00:00. in case of no connection, the re- start is disabled. 12. The NETWORK tab contains the specific parameters of the radio network. LSI LASTEM SRL INSTUM_04291 Pag. 14 / 32...
- Page 15 Name: is the name of the measure. In Use: specifies whether or not the measurement is acquired by the sensor (Yes = acquired; No = not acquired). Rate: is the acquisition rate of the measure. LSI LASTEM SRL INSTUM_04291 Pag. 15 / 32...
-
Page 16: Repeater Configuration
User Calibration, Forced range, Validity range, Remap: these parameters are currently reser- ved for use by LSI LASTEM technicians. To access the window with the measurement parameters, double-click on the measurement. The displayed parameters are the following: ➢... -
Page 17: Sphensor Gateway Configuration
4. The ENDPOINTS tab displays the MQTT servers configured in the device. In the figure are represented two servers, one local (localhost) and one called LSI Lastem, both configured to receive the data unencrypted and to have control of Sphensor Gateway. -
Page 18: Verification Of Pre-Installation Operation
Sphensor Gateway. ➢ Through the Sphensor Manager software, verify the reception of data from all sensors, taking into account the scheduled transmission rate. LSI LASTEM SRL INSTUM_04291 Pag. 18 / 32... -
Page 19: Installation Of Sphensor Equipment
Sphensor Gateway or the presence of obstacles. In this case, use one or more Sphensor repeaters. Also consider that low-power sensors need to refer, in their immediate vicinity (radio range), to a LSI LASTEM SRL INSTUM_04291 Pag. 19 / 32... -
Page 20: Sensors Installation
M4 stud and at the rear it is fixed in position by means of an M4 nut. In case the sensor requires external power, the remaining plate positions can be used to provide power to the wall po- wer supply. LSI LASTEM SRL INSTUM_04291 Pag. 20 / 32... -
Page 21: Hung
W 1/4'', instead of the M4 stud. This thread allows positioning also on various photographic media on the market (tripods, pliers, articulated arms, etc.) LSI LASTEM SRL INSTUM_04291 Pag. 21 / 32... - Page 22 Sphensor – User manual LSI LASTEM SRL INSTUM_04291 Pag. 22 / 32...
-
Page 23: Deepening
Signalling of an abnormal functional condition shall be indicated by red staining and shall be defined as fol- lows: • No detected functional abnormalities: no signalling. • Critical battery level, measurement operation and radio transmission suspended: a short flash. • Low battery level, normal operation anyway: two short flashes. LSI LASTEM SRL INSTUM_04291 Pag. 23 / 32... - Page 24 The alarm condition signalling is indicated by red+blue coloration and is defined as follows: • No detected functional abnormalities: no signalling. • Alarm detected: a short blink followed by one or more flashes depending on the alarm logic index configured in the sensor. LSI LASTEM SRL INSTUM_04291 Pag. 24 / 32...
-
Page 25: Technical Specifications
0.05 µW/cm Accuracy ±5% VM Response to cosine Outside Measures type No. 2 x external temperature, digital type sensor, compati- temperature ble with LSI LASTEM sensors (onlyPRMPA0405) Measuring range -40 ÷ 125 °C Resolution 0.01 °C Accuracy ±0.1 °C External analogue Measures type No. - Page 26 If enabled report: - Normal operation - Local alarm - Operation critical issues Ignition Button Accessible through a hole using a pointed object Level of protection IP40 Operating -30 ÷ 60 °C temperature LSI LASTEM SRL INSTUM_04291 Pag. 26 / 32...
-
Page 27: Prmpa0423 Sensors
Default=1 minute Transmission rate Settable On the basis of the sampling rate or only on the basis of mi- nimum variation in the measured size. Operating -10 ÷ 60 °C temperature LSI LASTEM SRL INSTUM_04291 Pag. 27 / 32... -
Page 28: Maintenance
LSI LASTEM SRL INSTUM_04291 Pag. 28 / 32... -
Page 29: Application Protocol
Sphensor Gateway. • The sensor_type field contains the name of the measurement cell that produced the measurement and its index when there is more than one measurement cell of that type. LSI LASTEM SRL INSTUM_04291 Pag. 29 / 32... -
Page 30: Diagnostics Snapshots
Here is an example of a message received: "error_rate": 0. "uptime": "3:28:59", "memory_used": 0. "radio": "rloc": "016C", "parent_rloc": "006C", "in_rssi": -50. "tx_power": 0. "in_quality": 3, "out_quality": 3, "out_rssi": -50 "battery": 255 LSI LASTEM SRL INSTUM_04291 Pag. 30 / 32... -
Page 31: Status Snapshots
The rssi field is the power of the radio signal; the range is -100÷0 (-100 when the signal is bad, 0 when it is good). • The battery field is the battery level; the value 255 indicates that the measurement is not available. LSI LASTEM SRL INSTUM_04291 Pag. 31 / 32... - Page 32 (RAEE). Its collection at the end of its life must be separated from other waste. LSI LASTEM is responsible for the conformity of the production, sale and disposal chain of the product, ensuring the rights of the user. Improper disposal of this product will result in law penalties.
