- Page 1 Environmental monitoring solutions Pyranometers Class B, C User manual...
- Page 2 LSI LASTEM. LSI LASTEM reserves the right to carry out changes to this product without timely updating of this document. Copyright 2020-2021 LSI LASTEM. All rights reserved.
-
Page 3: Table Of Contents
Calibration ..............................9 Product installation ..........................11 General safety rules ......................... 11 Mechanical installation ........................11 Electrical connection ........................12 LSI LASTEM data logger configuration ..................... 13 Operation check ............................14 Maintenance .............................15 Spare parts ..............................15 Disposal ..............................15 How to contact LSI LASTEM ........................16 10 CE Conformity Declaration ........................17... -
Page 4: Introduction

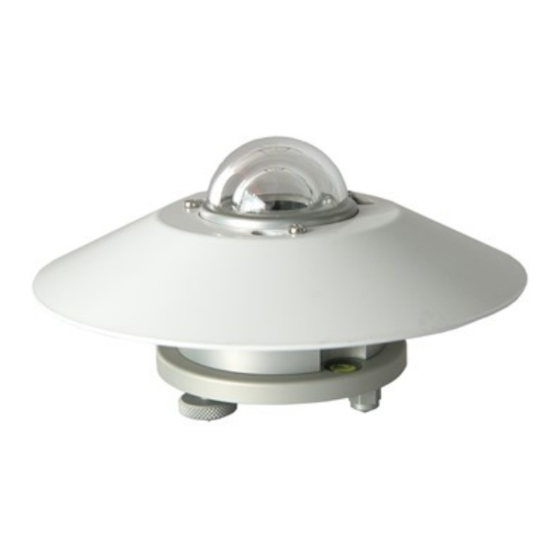

First & Second class Pyranometers – User manual 1 Introduction The LSI LASTEM pyranometer is an instrument to measure the solar irradiance (direct and diffuse) which reaches the terrestrial surface. With this instrument it is possible to measure not only the global radiation (see WMO n°8 7 ed.), but also... -
Page 5: Technical Features
• M-Log (ELO008) M-Log (ELO008) M-Log (ELO008) using compatibility • • RS485->232 converter Alpha-Log (using ALIEM Alpha-Log (using ALIEM • Alpha-Log module) module) • • • E-Log E-Log E-Log using RS485->232 converter LSI LASTEM SRL INSTUM_01388 Pag. 5 / 17... - Page 6 Calibration certificate Operative temperature -40÷80°C Calibration traceability Housing Anodized aluminium General information Ricalibration Every 2 years Mounting (pole Ø 45÷65 mm) Using DYA034 (horizontal) or DYA035 (tilting) arm + DYA049 collar Protection IP66 LSI LASTEM SRL INSTUM_01388 Pag. 6 / 17...
-
Page 7: Class C Pyranometer
M-Log (ELO008) Data logger • M-Log (ELO008) with • • Alpha-Log (with ALIEM Alpha-Log (with ALIEM compatibility RS485->232 converter module) module) • Alpha-Log • • E-Log E-Log • E-Log. with RS485->232 converter LSI LASTEM SRL INSTUM_01388 Pag. 7 / 17... - Page 8 Ricalibration Every 2 years Operative temperature -40÷80°C Calibration traceability General Material Anodized aluminium Protection IP66 Total (sensor + glass dome) relative spectral response Relative spectral response 1000 1500 2000 2500 3000 3500 LSI LASTEM SRL INSTUM_01388 Pag. 8 / 17...
-
Page 9: Calibration
It is not necessary to re-calibrate the instrument frequently. It is advisable to re-calibrate the instrument every 2 to 3 years in order to keep calibration uncertainty variations in the range of the pyranometer class. LSI LASTEM SRL INSTUM_01388 Pag. 9 / 17... - Page 10 Typical mean values of Daily totals of energy (MJ/m2)of global radiation in three North Italy town during an year. Locality Turin 13.3 17.1 20.0 22.4 22.2 18.8 14.1 Aosta 11.8 16.0 19.4 21.8 21.5 18.2 13.6 Milan 13.6 17.3 20.4 22.6 22.7 19.3 14.3 LSI LASTEM SRL INSTUM_01388 Pag. 10 / 17...
-
Page 11: Product Installation
1. Remove the radiant protective screen from the pyranometer body. 2. Fix the DYA032-034-035 support the DYA049 collar and mount them on pole. 3. Turn the support until the sensor points to the terrestrial equator. LSI LASTEM SRL INSTUM_01388 Pag. 11 / 17... -
Page 12: Electrical Connection
Power, Vdc or Vac Blue Power In Power, Vdc or Vac DPA983 Shield Earthing Green RS-485 D+ Serial Line - positive RS-485 (non-inverting signal) Brown RS-485 D- Serial Line - negative RS-485 (inverting signal) LSI LASTEM SRL INSTUM_01388 Pag. 12 / 17... -
Page 13: Lsi Lastem Data Logger Configuration
First & Second class Pyranometers – User manual 4.4 LSI LASTEM data logger configuration If the pyranometer is used with an LSI LASTEM data logger, proceed with the configuration of the data logger using the 3DOM software: ➢ Open the data logger configuration ➢... -
Page 14: Operation Check
User manual. The radiation value read can be compared with other radiometers installed in the same system as long as they are of the same type and have the same Azimuth. LSI LASTEM SRL INSTUM_01388 Pag. 14 / 17... -
Page 15: Maintenance
(RAEE). For this reason, at the end of its life, the instrument must be kept apart from other wastes. LSI LASTEM is liable for the compliance of the production, sales and disposal lines of this product, safeguarding the rights of the consumer. Unauthorized disposal of this product will be punished by the law. -
Page 16: How To Contact Lsi Lastem
First & Second class Pyranometers – User manual 9 How to contact LSI LASTEM In case of problem contact the technical support of LSI LASTEM sending an e-mail to support@lsi-lastem.com, or compiling the technical support request module at www.lsi-lastem.com. For further information refer to addresses and numbers below: •... -
Page 17: Ce Conformity Declaration
DPA863 Sensore/Piranometro/Second Class/4÷20mA/10÷30V DPA983 Sensore/Piranometro/Second Class/RS485/ 10÷30V Produttore: LSI LASTEM Srl LSI Lastem Srl dichiara sotto la propria responsabilità che i suddetti dispositivi sono prodotti in conformità alle direttive EMC 89/336 EEC (included EEC 93/68): • EN 50082-1 • EN 55011 •...
