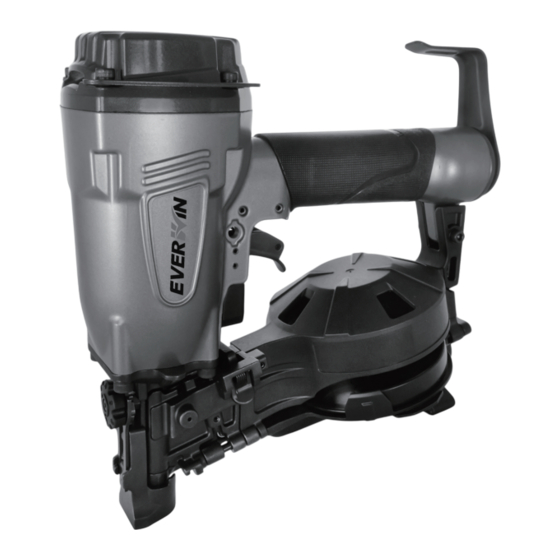

TOUGHER FASTER SMARTER
Pneumatic Coil Nailer
RCN45
OPERATIONS and MAINTENANCE MANUAL
!
WARNING:
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND
STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY
WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE
REV February, 27, 2023
TOOL FOR FUTURE REFERENCE.
108560

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCN45 and is the answer not in the manual?

Questions and answers

Related Manuals for Everwin RCN45

Summary of Contents for Everwin RCN45

  • Page 1 TOUGHER FASTER SMARTER Pneumatic Coil Nailer RCN45 OPERATIONS and MAINTENANCE MANUAL WARNING: BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE REV February, 27, 2023 TOOL FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    NOTE Additional safety measures may be required because of your particular application of the tool. Contact your EVERWIN representative or distributor with any questions concerning the tool and its use.

  • Page 3: 1-Year Limited Warranty

    (as a gauge for the tool’s age), and photos/videos of the defect for test and evaluation to find root causes. EVERWIN’s analyst will judge the issuance of defective parts and will.

  • Page 4: Ce Declaration Of Conformity

    EVERWIN PNEUMATIC CORP. förklarar härmed att produkten överensstämmer med följande normer och direktiv 2006/42/EC och SS-EN ISO 11148-13:2018. SAMSVARSERKLÆRING / CE Deklaration NORSK EVERWIN PNEUMATIC CORP. erklærer herved att produktet er i samsvar med følgende normer og direktiv 2006/42 EC og NS- EN ISO 11148-13:2018. Todistus CE standardinmukaisuudesta FINSK EVERWIN PNEUMATIC CORP.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE Before operating this tool, all operators should read and study this manual to understand and follow the safety warnings and instructions. Failure to follow warnings could result in death or serious injury. Keep these instructions with the tool for future reference.
  • Page 6 SAFETY INSTRUCTIONS FASTENER LOADING When loading the tool: 1.) Never place a hand or any part of body in the fastener discharge area of the tool; 2.) Never point the tool at anyone; 3.) Do not pull the trigger or depress the trip as accidental actuation may occur, causing injury.

  • Page 7: General Safety Instruction

    EVERWIN fasteners driving tools consist of: tool and fasteners. In the ．Keep bystanders away (when working in an area where there is a interests of operator and system safety, the tool and fasteners referred to likelihood of through traffic of people).
  • Page 8 EVERWIN PNEUMATIC CORP. ．Wear warm clothing when working in cold conditions, keep your hands ．Use only lubricants recommended by EVERWIN PNEUMATIC CORP. warm and dry. slippery surfaces caused by use of the tool and also trip hazards caused ．If you experience numbness, tingling, pain, or whitening of the skin in...

  • Page 9: Specifications And Technical Data

    TECHNICAL DATA AIR CONSUMPTION Tool air consumption: RCN45 -0.91 liter/second (1.9 cfm) of free air to operate at the rate of 100 nails per minute, at 8 bar (120 PSI). NOISE A-weighted single-event sound power level LWA, 1s: 102.5dBA A-weighted single-event emission sound pressure level at work station LpA 1s,d: 104.5dBA.

  • Page 10: Operation : Trigger Selection

    OPERATION : TRIGGER SELECTION VIBRATION Vibration characteristic value= 3.76 m/s These values are determined and documented in accordance to ISO 8662-11. This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when using the tool. An influence to the hand-arm-system when using the tool will, for example, depend on the gripping force, the contact pressure force, the working direction, the adjustment of mains supply and the workpiece support.

  • Page 11: Operation : Air Supply And Connections

    OPERATION : AIR SUPPLY AND CONNECTIONS DO NOT USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXPLODE, POSSIBLY CAUSING INJURY. FITTINGS Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.

  • Page 12: Operation : Lubrication

    OPERATION : LUBRICATION Frequent, but not excessive, lubrication is required for best performance. Air - tool oil added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.

  • Page 13: Operation : Fastener Loading

    OPERATION : FASTENER LOADING EYE PROTECTION Which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating, or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.

  • Page 14: Operation : Tool Operation System

    OPERATION : TOOL OPERATION SYSTEM EYE PROTECTION Which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating, or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.

  • Page 15: Operation : Tool Operation Check

    OPERATION : TOOL OPERATION CHECK CAUTION Remove all fasteners from tool before performing tool operation check. 1. Contact Trip Operation 2. Sequential Trip Operation a. With finger off the trigger, press the contact trip against a. Press the contact trip against the work surface, without the work surface.

  • Page 16: Operation : Tool-Specific Features

    OPERATION : TOOL-SPECIFIC FEATURES WARNING ALWAYS disconnect air supply before performing following adjustment. The depth that the fastener is driven can be adjusted using the depth adjustment wheel on the nose of the tool. The depth of drive is factory adjusted to a nominal setting.

  • Page 17: Maintaining The Pneumatic Tool

    MAINTAINING THE PNEUMATIC TOOL WARNING When working on pneumatic tools, note the warnings in this manual and use extra care evaluating tools with problems. Disconnect the air supply and empty the magazine when inspecting or maintaining the tool. REPLACEMENT PARTS Use only genuine parts from the manufacturer or distributor.
