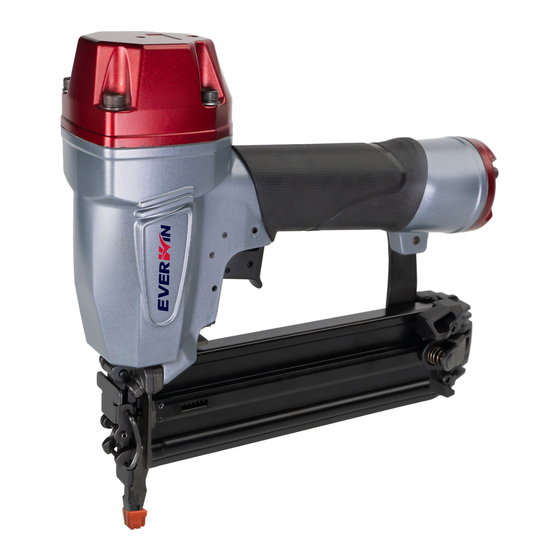

Pneumatic 18GA. Brad Nailer / Stapler
FN1850 / FS9040 / FS9240
OPERATIONS and MAINTENANCE MANUAL
!
WARNING:
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND
STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY
WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE
REV August, 19, 2022
TOOL FOR FUTURE REFERENCE.
106764
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Everwin FN1850
Summary of Contents for Everwin FN1850
- Page 1 Pneumatic 18GA. Brad Nailer / Stapler FN1850 / FS9040 / FS9240 OPERATIONS and MAINTENANCE MANUAL WARNING: BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE REV August, 19, 2022 TOOL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
INTRODUCTION The tool is designed for high-speed and high-volume fastening. This tool delivers efficient and dependable service when used correctly with care. As with any fine power tool, the manufacturer’s instructions must be followed for best performance. Please study this manual before operating the tool and understand the safety warnings and cautions. The instructions on installation, operation, and maintenance should be read carefully, and the manuals kept available for reference. -
Page 3: Ce Declaration Of Conformity
EVERWIN PNEUMATIC CORP. förklarar härmed att produkten överensstämmer med följande normer och direktiv 2006/42/EC och SS-EN ISO 11148-13:2018. SAMSVARSERKLÆRING / CE Deklaration NORSK EVERWIN PNEUMATIC CORP. erklærer herved att produktet er i samsvar med følgende normer og direktiv 2006/42 EC og NS- EN ISO 11148-13:2018. Todistus CE standardinmukaisuudesta FINSK EVERWIN PNEUMATIC CORP. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE Before operating this tool, all operators should read and study this manual to understand and follow the safety warnings and instructions. Failure to follow warnings could result in death or serious injury. Keep these instructions with the tool for future reference. - Page 5 SAFETY INSTRUCTIONS FASTENER LOADING When loading the tool: 1.) Never place a hand or any part of body in the fastener discharge area of the tool; 2.) Never point the tool at anyone; 3.) Do not pull the trigger or depress the trip as accidental actuation may occur, causing injury.
-
Page 6: General Safety Instruction
GENERAL SAFETY INSTRUCTION ．Only technically skilled operators should use the fastener driving tool. The Directive 2006/42/EC and the regulation 2008 ．Do not modify the fastener driving tool. Modifications may reduce the No. 1957 and the ISO International Standard EN effectiveness of safety measures and increase the risks to the operator and/ ISO 11148-13:2018 lay down certain safety requirements for hand- held non-electric power fastener driving tools, and in your own interest we... - Page 7 GENERAL SAFETY INSTRUCTION ．Appropriate controls to reduce the risk may include actions such as Repetitive Motions Hazards damping materials to prevent workpieces from “ringing”. ．When using a tool for long periods, the operator may experience ．Use appropriate hearing protection. discomfort in the hands, arms, shoulders, neck, or other parts of the body. ．Operate and maintain the tool as recommended in these instructions, to ．While using a tool, the operator should adopt a suitable but ergonomic prevent an unnecessary increase in noise levels.
-
Page 8: Specifications And Technical Data
SPECIFICATIONS AND TECHNICAL DATA SPECIFICATIONS Model FN1850 FS9040 FS9240 Height 241mm ( 9.5") 235mm (9.3") 235mm (9.3") Width 60mm (2.4") 60mm (2.4") 60mm (2.4") Length 240mm (9.4") 240mm (9.4") 259mm (10.2") Weight 1.4 kgs (3.1 lbs) 1.6 kgs (3.5 lbs) 1.4 kgs (3.1 lbs) - Page 9 0.8 liter/sec (1.69 cfm) of free air to operate at the rate of 60 nails per minute, at 6.2 bar (90 psi). NOISE A-weighted single-event sound power level LWA, 1s : FN1850-CT, FN1850-ST, FN1850PAL- 98.6 dBA FS9040-CT, FS9040-ST, FS9040PAL- 94.4 dBA FS9240-CT, FS9240-ST, FS9240PAL- 95.9 dBA A-weighted single-event emission sound pressure level at work station LpA 1s,d: FN1850-CT, FN1850-ST, FN1850PAL- 92.6 dBA...
-
Page 10: Operation : Trigger Selection
Air Inlet 1. Contact Trip (available system on : FN1850-CT, FS9040-CT, FS9240-CT) The common operating procedure on “Contact Trip” tools is for the operator to contact the workpiece to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the workpiece is contacted. This will allow rapid fastener placement on many jobs, such as sheathing, decking, and pallet assembly. -
Page 11: Operation : Air Supply And Connections
OPERATION : AIR SUPPLY AND CONNECTIONS DO NOT USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXPLODE, POSSIBLY CAUSING INJURY. FITTINGS Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source. -
Page 12: Operation : Lubrication
OPERATION : LUBRICATION Frequent, but not excessive, lubrication is required for best performance. Air - tool oil added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance. -
Page 13: Operation : Fastener Loading
OPERATION : FASTENER LOADING EYE PROTECTION Which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating, or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury. - Page 14 OPERATION : FASTENER LOADING Loading the Tool (FN1850-CT / FN1850-ST / FN1850PAL) Open the Magazine Load Fastener Close Magazine Depress toggle and pull magazine Insert nails into track of magazine. Push magazine cover forward to cover to open. close. Make sure the latch is engaged.
-
Page 15: Operation : Tool Operation System
There are three available systems in these tools : 1. Contact Trip Operation (available system on : FN1850-CT, FS9040-CT, FS9240-CT) The CONTACT TRIP MODEL tool contains a contact trip that operates in conjunction with the trigger to drive a fastener. To operate the tool in this manner, hold the tool with the contact trip pointing towards but not touching the work surface. -
Page 16: Operation : Tool Operation Check
OPERATION : TOOL OPERATION CHECK CAUTION Remove all fasteners from tool before performing tool operation check. 1. Contact Trip Operation 2. Sequential Trip Operation a. With finger off the trigger, press the contact trip against a. Press the contact trip against the work surface, without the work surface. -
Page 17: Maintaining The Pneumatic Tool
MAINTAINING THE PNEUMATIC TOOL WARNING When working on pneumatic tools, note the warnings in this manual and use extra care evaluating tools with problems. Disconnect the air supply and empty the magazine when inspecting or maintaining the tool. REPLACEMENT PARTS Use only genuine parts from the manufacturer or distributor. -
Page 18: Troubleshooting / Repairs
WARNING Always disconnect air supply before clearing a jammed fastener. If a jam occurs on the FN1850-CT, FN1850-ST, FN1850PAL, FS9240-CT, FS9240-ST, FS9240PAL, follow this procedure: 1. Disconnect the tool from the air supply. 2. Pull pusher into lock position or depress latch to pull magazine cover to open, remove remaining staples from the magazine.
