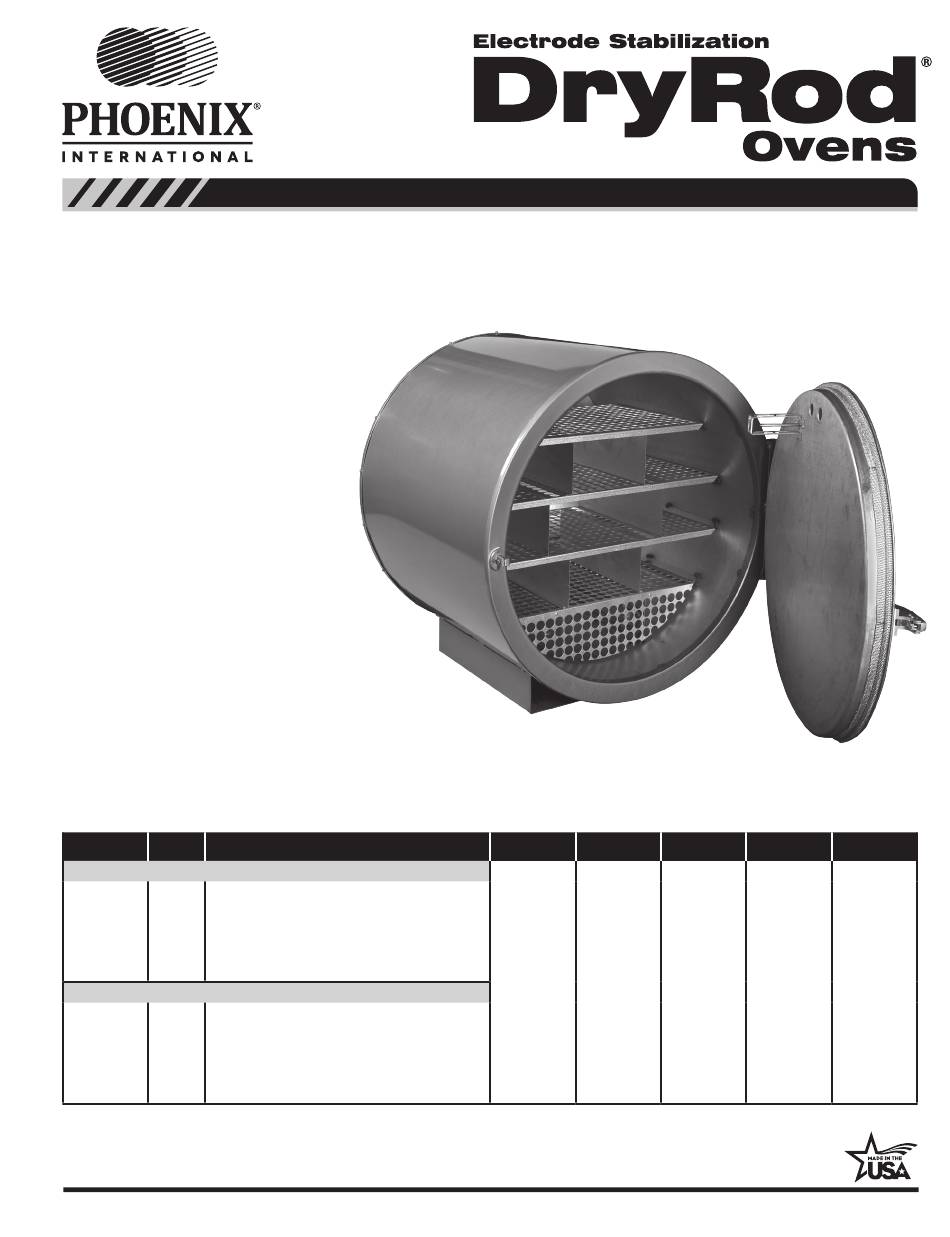

Phoenix International DryRod 900 Series Operating Instructions Manual

Electrode stabilization ovens

Advertisement

MODEL
PART #
Type 900 Series Model with 10' Grounded Heavy-Duty Cord (No Plug)*
9
1200300
240/480V AC @ 2400 watts
Type 900 Series Model with 10' Grounded Heavy-Duty Cord (No Plug)*
240/480V AC @ 2400 watts with door mounted
9
1200301
thermometer installed
*Operation on Direct Current (DC) will damage oven and void warranty.
**Average stabilized temperature @ 70˚F ambient temperature.
Phoenix International, Inc.
8711 West Port Avenue • Milwaukee, WI 53224 USA • Telephone: 414-973-3400 • Fax: 414-973-3275
Electrode Stabilization Ovens
DESCRIPTION (All 50-60 Cycles)
Type 900 Series
TEMP
INSULATION
RANGE**
100˚ to 550˚F
(38˚ to 288˚C)
+/-25˚F (14˚C)
2"
30" diameter
Adjustable
fiberglass
Thermostat
Control with
Indicator Light
OPERATING INSTRUCTIONS
CHAMBER
WEIGHT &
CAPACITY
SIZE
DIMENSIONS
1100 lb (500 kg)
of 18" electrodes
x 27" deep
Accepts
43" x 43" x 45"
electrodes up
to 24"
phx-international
www.
327 lb
.com
N5466100A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DryRod 900 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phoenix International DryRod 900 Series

  • Page 1 1200301 thermometer installed *Operation on Direct Current (DC) will damage oven and void warranty. **Average stabilized temperature @ 70˚F ambient temperature. Phoenix International, Inc. phx-international www. .com 8711 West Port Avenue • Milwaukee, WI 53224 USA • Telephone: 414-973-3400 • Fax: 414-973-3275...
  • Page 2: Oven Description

    A laminated version and poster size version of the Guide To parts listed in the Suggested Spare Parts section in this manual. Electrode and Flux Stabilization is available by contacting Phoenix International, Inc. AMP DRAW DryRod Type 900 Series ovens are designed to be holding ovens.
  • Page 3: Wiring Diagrams

    WIRING DIAGRAMS JUMPER 1 OF 2 PILOT HEATING CONDUIT HEATING PILOT LIGHT LIGHT ELEMENT ELEMENT THERMAL THERMAL COUPLE COUPLE CONDUIT PROBE PROBE JUMPER 2 OF 2 GREEN GREEN VARIABLE VARIABLE THERMOSTAT THERMOSTAT WHITE WHITE BLACK BLACK WIRING DIAGRAM FOR: WIRING DIAGRAM FOR: Type 900 Series Model C 480V Type 900 Series Model C 240V CAUTION:...
  • Page 4: Suggested Spare Parts

    ADDITIONAL PRODUCTS AVAILABLE Type 300 Series Type 5 Series Safetube® Industrial Stationary Electrode Oven Portable Electrode Oven Storage Container Phoenix International, Inc. phx-international www. .com 8711 West Port Avenue • Milwaukee, WI 53224 USA • Telephone: 414-973-3400 • Fax: 414-973-3275...
  • Page 5: Replacement Parts

    REPLACEMENT PARTS ORDERING INFORMATION To order spare or replacement parts please visit our website: www.phx-international.com. When ordering, please confirm that you are ordering parts for the correct oven. DESCRIPTION PART # Vent Cover Kit (Includes two vent covers) 1257152 Door Latch & Strike 1252200 Thermostat Housing 2200200...
  • Page 6: Warranty

    Please visit www.phx-international.com or email info@phx-international.com to receive yours FREE! WARRANTY Phoenix International, Inc. warrants its products against defects in This warranty applies only to products sold by Phoenix International, material and workmanship. The company will, at its discretion, repair Inc. and specifically excludes installation or de-installation labor,...
