Flux cored electrode wire stabilization ovens

Advertisement

Ovens
Operating Instructions
Type 4 Series
Flux Cored Electrode
Wire Stabilization Ovens
• Designed for flux cored wire and general purpose storage
• Type 4 provides adjustable shelving to accommodate different spool sizes
• Thermometer option available
Part No.
Description

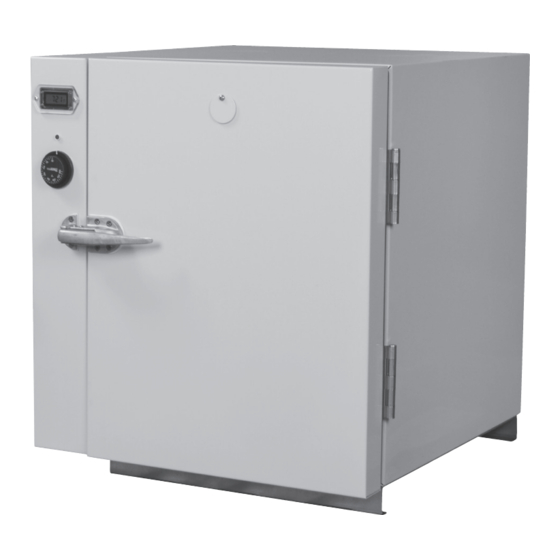

Type 4 Series Oven
120/240V AC at 1000 watts
1205438
with installed thermometer
* Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70
Temperature Range*
100
°
- 300
°
F
(38
°
- 149
°
C) +/-25
°
F (14
°
C)
adjustable thermostat control
with indicator light
dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International
Insulation Chamber Size
Capacity
up to four 12" or
2"
14.5" x 17" x 18"
three 16" spools
fiberglass
or coils
F ambient temperature.
°
Weight
Dimensions
90 lb
22" x 23.75" x 25"
(41 kg)
(55.9 x 60.3 x 63.5 cm)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dryWIRE 4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phoenix International dryWIRE 4 Series

  • Page 1 * Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70 F ambient temperature. ° dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
  • Page 2: Product Description

    400°F (204°C). Temperatures over 400°F (204°C) are not recommended. They may cause oven damage and/or unacceptably high exterior surface temperatures. Phoenix International 8711 West Port Avenue Milwaukee, WI 53224 +1 414.973.3400 info@dryrod.com dryrod.com...
  • Page 3: Troubleshooting

    Item No. Spare Part Description Part No. per 10 Ovens Heating Element Kit 1257095 North American Power Cord 1257540 Door Latch and Strike 1252200 Thermostat Kit 1257085 dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
  • Page 4: Replacement Parts

    1255150 Shelving Assembly Gasket Kit 1257163 Gasket (per foot) Power Inlet Kit 1257390 Rivet Locking Power Inlet Hinge Kit 1250206 (2 hinges) North American Power Cord 1257540 Phoenix International 8711 West Port Avenue Milwaukee, WI 53224 +1 414.973.3400 info@dryrod.com dryrod.com...
  • Page 5 Replacement Parts 3 Door Latch and Strike 2 Indicator Light Thermometer Kit 6 Heating Element Kit 4 Vent Cover Kit 5 North American Locking Power Connection Kit dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
  • Page 6: Warranty

    Warranty Phoenix Ovens International LLC warrants its products against defects in material and workmanship. The company will, at its discretion, repair or replace any properly installed Phoenix International manufactured product which fails under normal operating conditions within one year from date of receipt. Contact the factory for return authorization before returning the product to Phoenix International freight prepaid.
