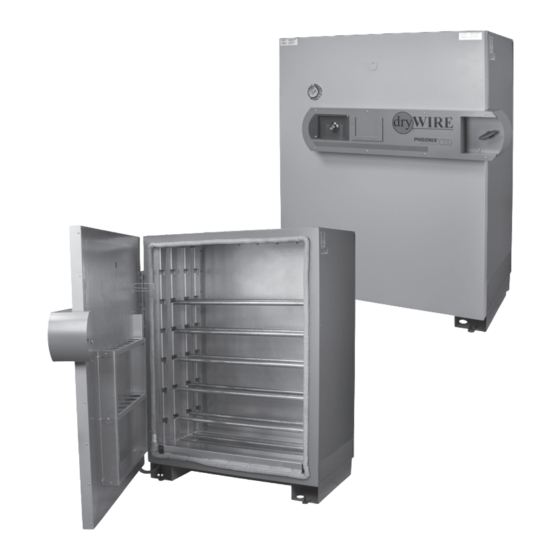

Flux cored electrode wire stabilization ovens

Advertisement

Ovens
Operating Instructions
Type 24 Series
Flux Cored Electrode
Wire Stabilization Ovens
• Designed for flux cored wire and general purpose storage
• Type 24 provides adjustable shelving to accommodate
different spool sizes
• Thermometer option available
Part No.
Description
Type 24 Series Oven
1205430
240/480V AC at 2500 watts
240/480V AC at 2500 watts
1205431
with installed thermometer
* Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70
Temperature Range*
100
- 550
F
°
°
(38
- 288
C) +/-25
F (14
C)
°
°
°
°
adjustable thermostat control
with indicator light
dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International
Insulation Chamber Size
Capacity
up to twenty-
2"
four 12" or
35" x 21" x 47"
fiberglass
sixteen 16"
spools or coils
F ambient temperature.
°
Weight
Dimensions
450 lb
45" x 29" x 55"
(204 kg)
(114.3 x 73.7 x 139.7 cm)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dry WIRE 24 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Phoenix International dry WIRE 24 Series

  • Page 1 * Operation on Direct Current (DC) will damage oven and void warranty. Average stabilized termperature at 70 F ambient temperature. ° dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
  • Page 2: Product Description

    100˚ to 700˚F with an accuracy specification of +/-10˚. Product accuracy testing is conducted using standards traceable to the N.I.S.T., USA. Door mounted thermometer Phoenix International 8711 West Port Avenue Milwaukee, WI 53224 +1 414.973.3400 info@dryrod.com dryrod.com...
  • Page 3: Troubleshooting

    Recommended Quantity Item No. Spare Part Description Part No. per 10 Ovens Heating Element Kit 1257090 Thermostat Kit 1257080 Door Latch 7550280 Gasket Kit 1257154 dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
  • Page 4 3. Roll rod forward out of notch or pull forward until clear of notch opening. 6.9" 4. Rods can be arranged in a variety of ways. Additional shelving kits can be added. See Replacement Parts section in this manual. 5.4" Phoenix International 8711 West Port Avenue Milwaukee, WI 53224 +1 414.973.3400 info@dryrod.com dryrod.com...
  • Page 5: Replacement Parts

    1257150 Conduit Box 4 Thermostat Kit Conduit Box Cover Heating Element Kit 1257090 Element Thermostat Cover 5110110 Shelf Bracket 2751910 Heating Element Guard 2751580 5 Shelving Kit dryrod.com info@dryrod.com +1 414.973.3400 8711 West Port Avenue Milwaukee, WI 53224 Phoenix International...
  • Page 6: Warranty

    Warranty Phoenix Ovens International LLC warrants its products against defects in material and workmanship. The company will, at its discretion, repair or replace any properly installed Phoenix International manufactured product which fails under normal operating conditions within one year from date of receipt. Contact the factory for return authorization before returning the product to Phoenix International freight prepaid.

This manual is also suitable for:

12054301205431
