INSTALLING THE BREAKER
(if previously installed, remove the Provision Barrier
from the B-phase Strap to allow proper electrical
connection between the B-phase Bus Extension and
the B-phase Strap)

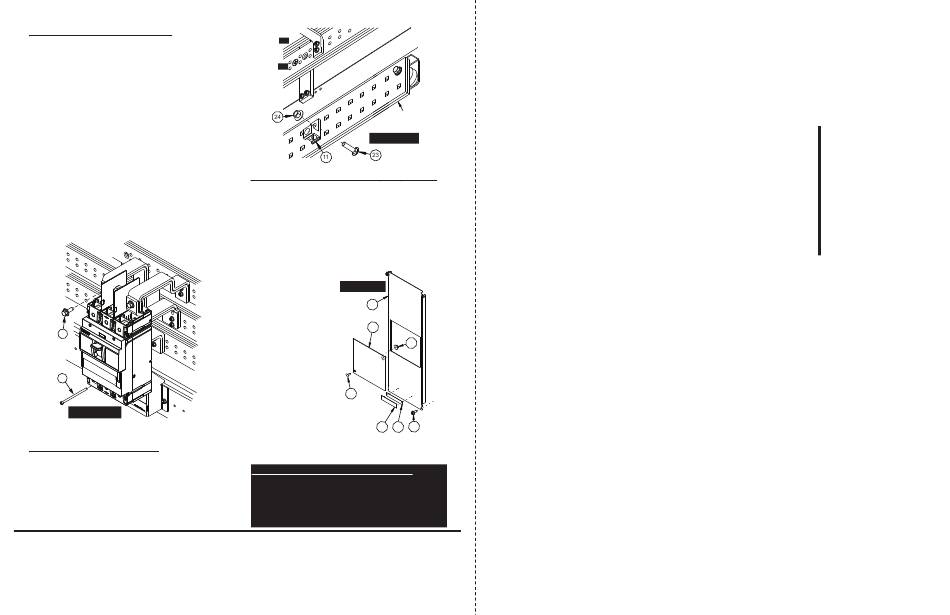

15. Refer to Figure 8
Orient the prepared breaker so that the Bus
Extensions face up and place it such that the
bottom of the breaker sits on the Breaker Support
Bracket and the Bus Extensions sit on each phase
of the bus straps.
16. Loosely secure the breaker to the strap
assembly using three 5/16"-18 x 1" Hex Head
Screws (Item 21) to secure the Bus Extensions to
the straps and two #10-32 x 3-3/8" Screws
(Item 16) to secure the breaker body to the Breaker
Support Bracket.
(NOTE: Some breakers are packaged with a pair of
Breaker Mounting Screws. If this occurs, dispose of
the pair that shipped with the breaker and use the
pair from this kit instead.)
17. With the components loosely assembled, make
adjustments and align as needed, then secure to
the values specified on the torque label applied
to the inside of the exterior door.
21
16
Figure 8
INSTALLING THE NEUTRALS
18. Refer to Figure 9
If branch neutral terminals are NOT already
installed for this breaker -- or are full -- the
750 kcmil Connector Lugs (Item 11) should be
added. Mount the lugs onto the Neutral Bus by
placing them as shown and securing with a
3/8"-16 x 1-1/2" Carriage Bolt (Item 23) from the
rear and a 3/8"-16 Belleville Washer Nut (Item 24)
on the front for each lug.
These instructions do not purport to cover all details or variations in equipment, or to provide for every possible contingency to be met in connection
with installation, operation or maintenance. Should further information be desired or should particular problems arise, which are not covered sufficiently
for the purchaser's purposes, the matter should be referred to the local Siemens sales office. The contents of this instruction manual shall not become
part of or modify any prior or existing agreement, commitment or relationship. The sales contract contains the entire obligation of Siemens. The
warranty contained in the contract between the parties is the sole warranty of Siemens. Any statements contained herein do not create new warranties or
modify the existing warranty.
Trademarks - Unless otherwise noted, all names identified by ® are registered trademarks of Siemens AG or Siemens Industry, Inc. The remaining
trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
NEUTRAL
BUS
Figure 9
INSTALLING COVER PLATE AND FILLER
19. Refer to Figure 10
If this kit is being installed WITHOUT the breaker
at this time, assemble the Filler Plate (Item 7) onto
the Cover Plate (Item 6) using 2 #10-32 Carriage
Bolts (Item 17) and two #10 Lock Nuts (Item 18) as
shown. If breaker is already installed, skip to the
next step and do NOT use these three components.
20. Install the 6.25" Cover
Plate (Item 6) by
aligning it over the
6.25" of selected unit
space and related
Figure 10
breaker. Use two
1/4"-20 x 5/8"
6
screws (Item 19),
at opposite corners
of the cover plate,
7
and drive into the
deadfront rails.
18
21. Mark the Circuit ID
Card (Item 10) as
desired and mount
it to the cover plate
by placing it behind
17
a clear Card Holder
(Item 9) and pushing
the two Card Holder
prongs into the pair
9
10
19
of holes in the cover
below the breaker
opening.
COMPLETING THE INSTALLATION
22. Ensure that any bus or breaker hardware is
tightened to the values specified on the torque
label applied to the inside of the exterior door.
Then replace all the cover plates. Finally,
ensure any fillers are in place BEFORE
re-energizing the equipment.
-4-
S
S3VA54SBX
RapidSBx Switchboard Strap Kit
TM
for Vertical Branch Mounting of a
Type 3VA53 / 63 / 54 / 64 Breaker
(to
deadfront
rail)
Installation
Instructions
10-B-6017-01 Rev. 00
