SimworX PRO Series Manual

Handbrake

Download this manual

SIMWORX PRO SERIES HANDBRAKE

Stand Alone Version - USB

Thank you for you purchasing one of our Pro Series Handbrakes, we are sure you will enjoy using It.

The following guide will familiarise you with the features and installation of this product.

Step 1

Step 2

Step 3

Stand Alone USB version

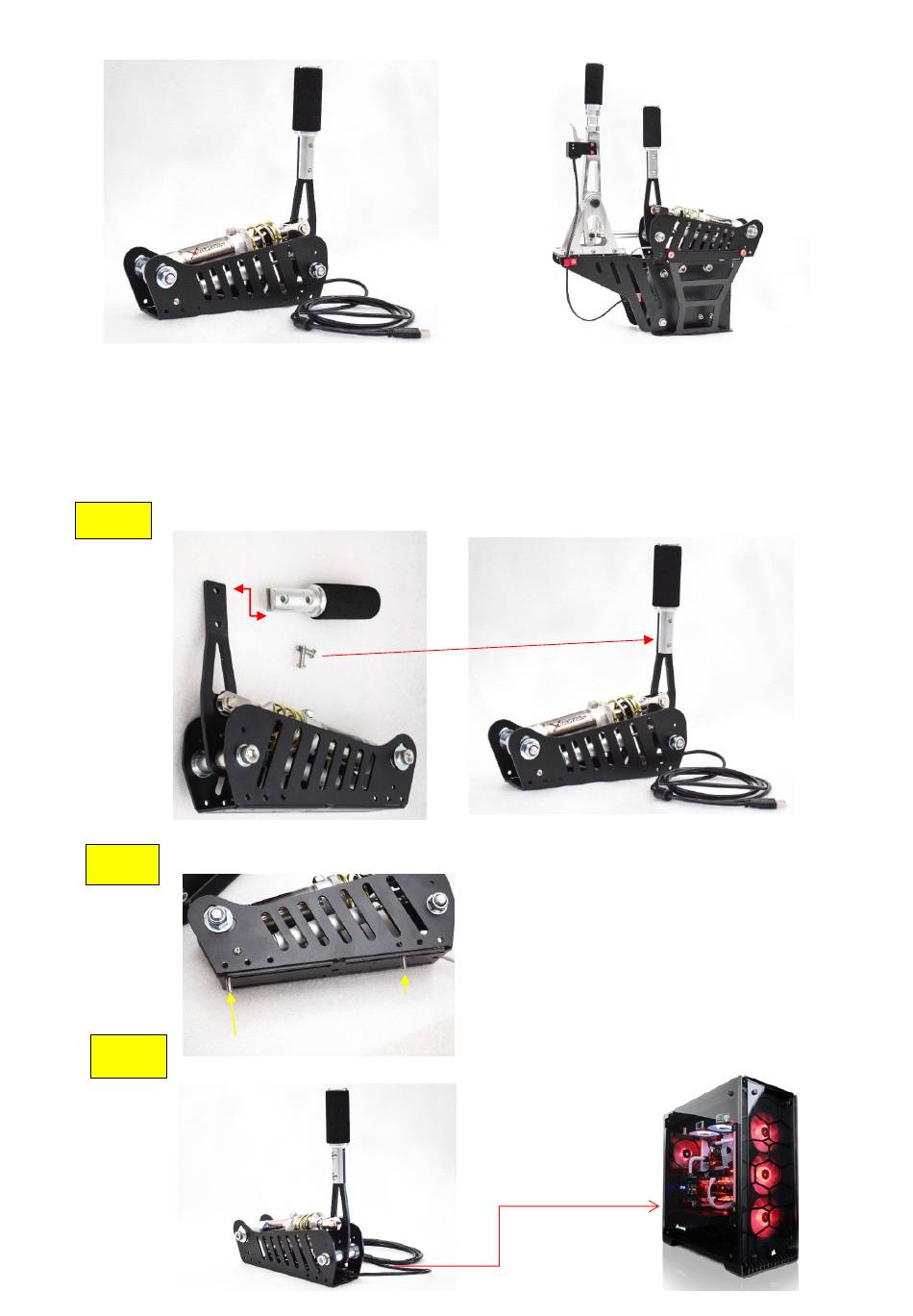

Using the supplied screws and Allen Key

Fasten the handle to the main shaft and tighten.

Mounting screws and nuts are supplied in your

pack. For mounting the handbrake you can use

the four slots, or alternatively, if you are

mounting it on to Aluminium Extrusion style

rigs, use the outer centre holes. Ideal for

mounting to 40x40 or larger extrusions.

Plug the USB in to your PC, the software will

self install, calibrate as per instructions

on next page and assign the handbrake in your

game.

Add On version for Supercar Shifter

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Page 1 Add On version for Supercar Shifter Stand Alone USB version Thank you for you purchasing one of our Pro Series Handbrakes, we are sure you will enjoy using It. The following guide will familiarise you with the features and installation of this product.
Page 2 PRO SERIES HANDBRAKE Connecting to PC & in game For Stand alone USB Handbrake Type in the Windows search bar “Setup USB game controllers” to open the game controllers window, you will now need to plug the handbrake in to the PC via USB cable supplied, watch for the shifter to be recognised.
Page 3 Pro Series Handbrake add on version for Supercar Shifter The Kit Supplied to mount handbrake Contents: 1 x Simworx Pro Series Handbrake 1 x Handbrake side bracket 2 x 6mm x 10mm Cnsk bolts 2 x Red Washers The kit supplied with your Handbrake To fit to Supercar shifter 1.Remove 2 cap screws on shifter side you want to mount the handbrake on...
Page 4 6. Introduce upright support bracket, slide to adjust handbrake position, line up one of three closest screw holes, insert supplied screws with washers. 7. Once in position tighten mounting screws and nuts. 8. Tighten securely 9. Take the aviation plug, with care line up the plug V notch in to matching aviation socket, secure the plug in to socket with the screw on collar Step by Step Instructions Decide what side the handbrake is going to be mounted on.
