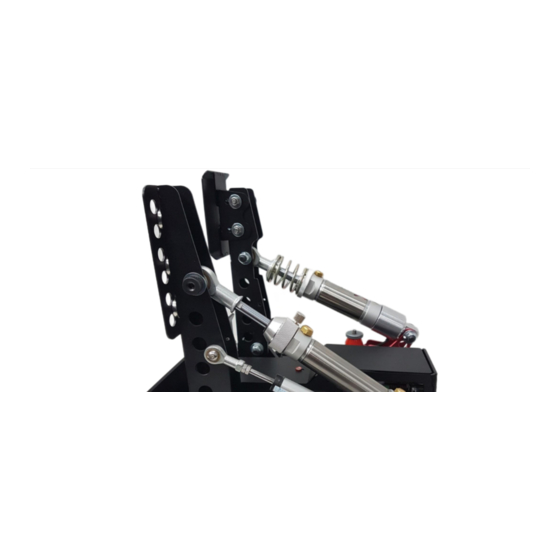

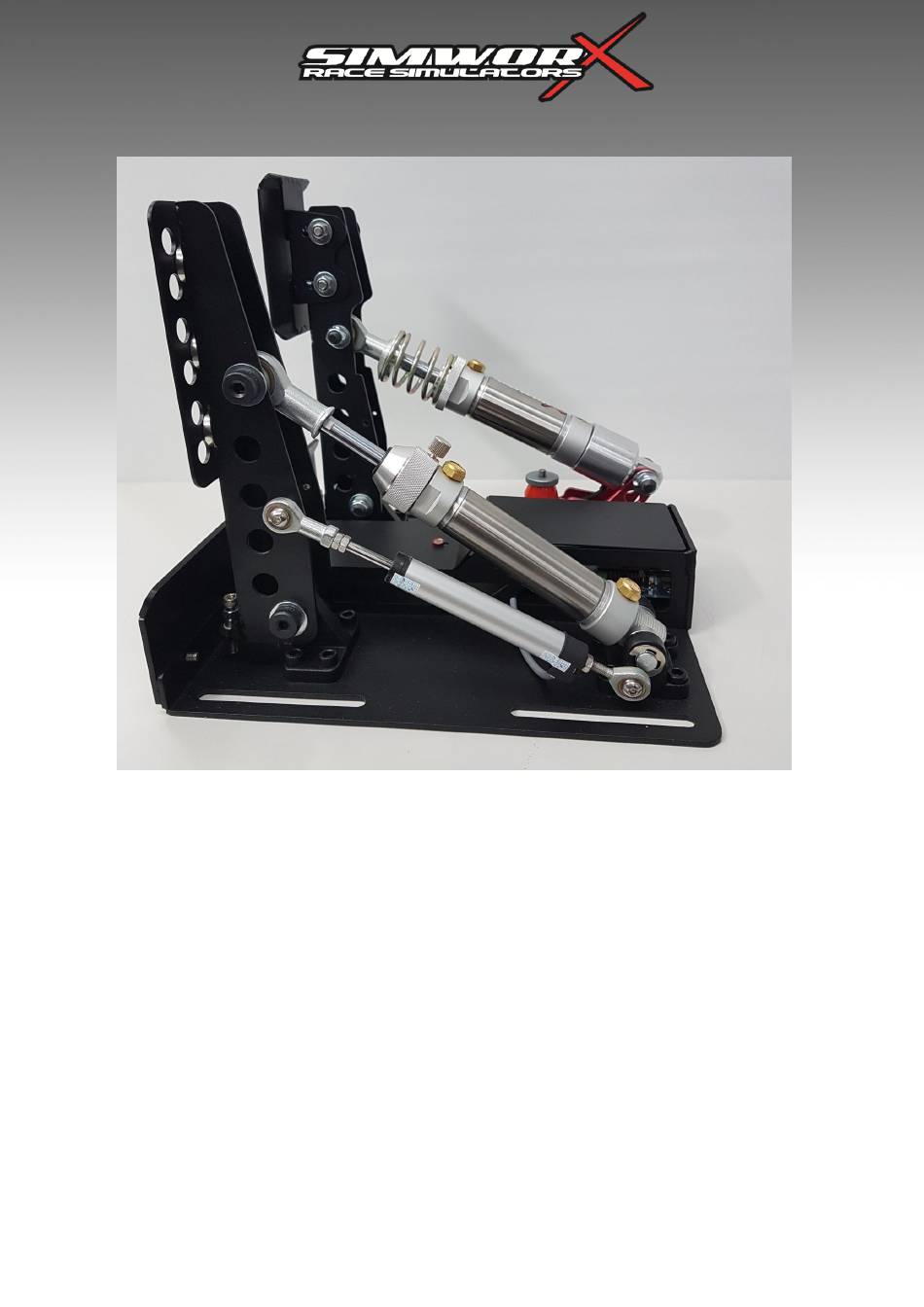

- Page 1 Pro Series F1 LC Pedal Set USER MANUAL Load Cell Spec...
- Page 2 The compact design of the F1 LC Pedals makes it suitable for fitting in to compact F1 style cockpits where footwell space is limited. The Pro Series range of controls are products that were designed and developed by SimworX with the ultimate aim of supplying the most realistic motorsport inspired controls for the ultimate virtual racing experience. Each product is pre-tested prior to shipping to ensure your investment is ready to go once you’ve received it.
- Page 3 Drill and locate these holes first If satisfied with positioning of your pedals mark and drill the remaining front 2 holes Slot Centres 232mm...
- Page 4 This procedure is based on the windows 7/8.1/10 operating system, older systems may vary. Once you have connected your pedals and the “Simworx Pro Series” device is visible in windows “Devices and Printers”, right click on the “Simworx Pro Series” and select “Game Controller Settings From the next list, select “Simworx Pro Series”...
- Page 5 ADJUSTMENTS Pedal Face Angle The pedal face on the brake pedal is fitted with angle and height adjustments. To adjust, using a 5mm allen key and 10mm spanner, loosen off the two nuts (pointed out by the red arrows) a few turns to loosen the pad assembly. Once loose, you will be able to adjust the pad upwards &...
- Page 6 ADJUSTMENTS Pedal Rebound Adjust After any adjustment, you may need to alter the pedal rebound to get the pedal sitting nicely again. To do this, use an 8mm spanner to loosen the locking nut (pointed out by the red arrow) then use a 3mm allen key to adjust up or down the stop until the pedal is in your desired position.
- Page 7 Alternatively try a different USB cable. If you have any problems installing/calibrating or setting up your Pro GT pedal set, contact SimworX support on the below email or give us a call and are more than happy to assist.
