- Page 1 PLUS Electric Slimline Tab-tension Screen USER MANUAL (2402)
-
Page 2: Table Of Contents
Content To Users ---------------------------------------------------2 Screen Running ----------------------------------------19 Remote control ---------------------------------------19 Safety Instructions -------------------------------------2 Screen Height Limit Setting -------------------------21 Packing Contact ----------------------------------------4 Screen Maintenance ----------------------------------22 The Introduction Of Product --------------------------5 Manufacturer's Warranty ----------------------------23 Appearance ---------------------------------------------5 Certificate ------------------------------------------------8 Certificate -----------------------------------------------25 Important Safety Precautions -----------------------9 Product Warranty Card -------------------------------25 Matters Needing Attention -------------------------10 Matters Concerning Projection --------------------12... -
Page 3: To Users
To Users Thank you for choosing the VIVIDSTORM projection screen. Please read this manual carefully before using the product and keep it properly. The manual of products, accessories, user interface, etc. in this description are schematic diagrams and are for reference only. Due to product updates, the actual product may be slightly different from the schematic diagram, please refer to the actual product. - Page 4 To prevent electric shock, fire hazard. - Using incorrect cables may affect product performance, and may even lead to electric shock, fire and other accidents. In order to ensure product performance and safety, please use the same type of cable as the original cable. - If a power extension cord is required, use a power cord with an amperage rating not lower than that of the product.
-
Page 5: Packing Contact
Packing Contact When opening the box, check the contents of the box the list below. If there is any omission, please contact the dealer in time. PLUS Electric Slimline Tab-tension Screen USER MANUAL (2402) Projection screen User manual+Envelopes RF wireless remote... -
Page 6: The Introduction Of Product

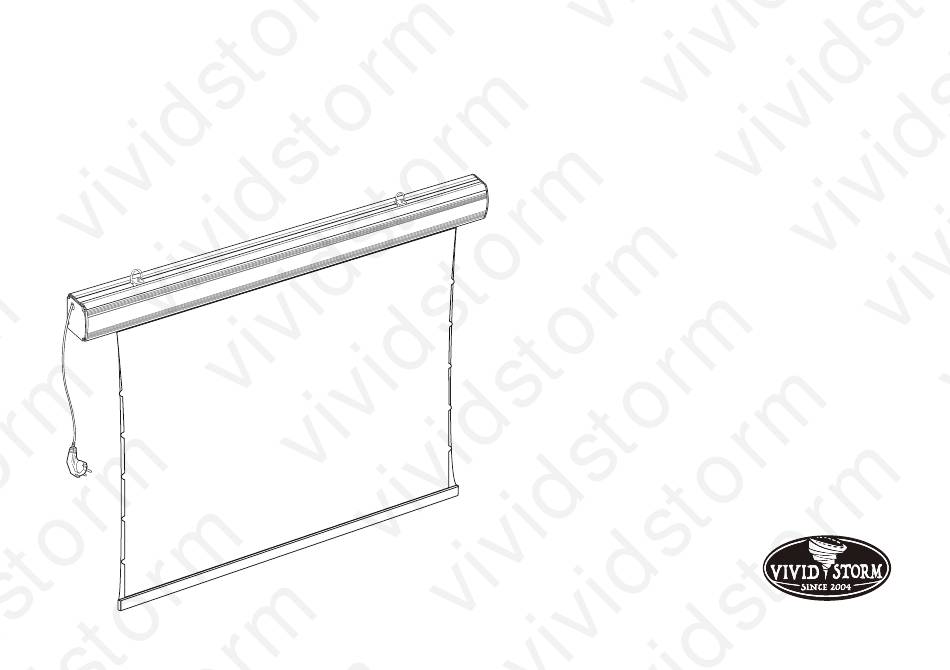

The Introduction Of Product Inside the dotted line is Appearance the standard projected area Outside the dotted (the actual product Lifting ring line is the non-projected does not have this dotted line) Housing Power cord Tab-Tension Screen material Lower axis (Screen open - front view) (Screen open- rear view) Lifting ring... - Page 7 Appearance Lifting ring Power cord hole Screws Housing (Screen close - front view) Housing Screen material (Screen close - back view) Housing Lower axis (Screen open - left view) (Screen open- right view) (After the screen is closed - (After the screen is closed - internal internal anatomy left view) anatomical view from the right)
- Page 8 Appearance Housing Screen material Power cord Lower axis...
-
Page 9: Certificate
Screen Startup Indicator The screen startup indicator provides the following prompts for the operational status: - Picture 1, if the screen jitters once at the lower axis, it indicates normal operation. If there are any abnormal situations, please contact after-sales support. (Picture 1) Certificate REACH... -
Page 10: Important Safety Precautions
Important Safety Precautions Please read all the contents of the user guide carefully and follow the operation steps below. For reference when necessary, please keep this user guide. 1. In order to avoid damage to the equipment, please prohibit the use of any accessories not authorized by the manufacturer. 2. -
Page 11: Matters Needing Attention
Matters Needing Attention Warning! If you do not strictly follow the prescribed precautions during use, this may lead to equipment damage and other unnecessary damage. Please observe the family fire safety regulations; do not place the equipment near the fireplace or high temperature objects such as gas stove, barbecue or heater to avoid equipment damage. - Page 12 Matters Needing Attention No one is allowed to open the inside of the equipment and repair the product without authorization, except for the authorized technicians. 1. Please make sure that the power supply connected to this product has stable current. 2.
-
Page 13: Matters Concerning Projection
Matters Concerning Projection Projected Area 1.Please project according to the actual projection size of the screen purchased when using the projector. 2.Since the position of black border has been preset on the screen of this product, please do not exceed the specified projected area during projection. -
Page 14: About Screen Performance
About Screen Performance 1.The screen is only suitable for normal throw projectors. 2. If there are regular creases on the screen surface after the screen is opened, don't worry. This is a normal phenomenon. It is caused by the screen being curled and tightened for a long time, which does not affect the user's viewing. After opening the screen for a period of time, you will notice that the stripes on the screen will gradually disappear. -
Page 15: Installation Warning
Installation Warning Since the installation environment of each user is different, the instructions in this user guide are only for reference. If you need further installation and safety suggestions, please consult the professional installation company. It should be noted that no matter what kind of installation method you take, the product should not be loosened or dropped due to vibration or tension, so as to keep the product stable. -
Page 16: Suspended Installation
Suspended installation 1. The lifting ring of the equipment has been installed into the slide rail and fixed when leaving the factory. 2. To adjust the position of the lifting ring, loosen the screw on the ring slightly. 3. After adjusting the position of the lifting ring, please tighten the screw, and then hang the equipment on the fixed wall hook. Unscrew the lifting ring Move the lifting ring to the right position Inside the wall... - Page 17 Note: - The fixed distance of the two hanger should be left and right in the middle of the cover, not too close to the middle or side; - The screen hanging from the ceiling should be flat. Put the hanger on the hook. For high ceiling installation, chain or steel cable can be used (additional hanging parts need to be purchased) Note: please make sure the equipment is installed horizontally and do not tilt it.
-
Page 18: Wall / Ceiling Installation
Wall / ceiling installation 1. Determine the installation position of the equipment, measure and mark the distance between the top and bottom screw holes of each bracket, and whether the distance between the two hanger is appropriate, and ensure that they are on the same horizontal line. - Page 19 3. Lift the screen upward to make it level with the bracket, clip the screen into the bracket slot and push it until a "click" sound is heard to ensure that the screen is firm. Inside the wall Inside the wall outside of a wall outside of a wall Wall installation...
-
Page 20: Screen Running
Screen Running Voltage information: make sure your screen is working at the correct voltage , depending on the area. (Using the wrong voltage may cause the screen to become inoperable) (1) Plug the screen power cord into the correct power outlet. (2) When the screen is fully lowered and for prolonged viewing, you may choose to unplug the power cord. - Page 21 When the battery of the remote control needs to be replaced, as shown in the figure below, unscrew the cover of the remote control with a small screw, then replace the new button battery, close the cover of the remote control, and tighten the screw to prevent the loose battery from falling off;...
-
Page 22: Screen Height Limit Setting
Screen Hight Limit Setting Four Times One Time Please ensure that the device is powered on. Begin the adjustment Enter adjustment mode: Use a pointed tool to press the 'Function’ key on after fully opening the screen. the back of the remote control 4 times, then within 10 seconds, press the 'Down' key on the remote control 1 time.At this point, if the lower axis of the screen jitters once, it indicates entry into the limit adjustment state. -
Page 23: Screen Maintenance
Screen Maintenance Cleaning requirements: 1. Use a clean cloth to dip a small amount of water around gently wipe the screen; 2. Please use a clean cotton cloth or soft dust brush to remove dust particles on the screen; 3. Due to the weather, especially the humidity；The screen surface may be wrinkled,it is a normal situation;... -
Page 24: Manufacturer's Warranty
Manufacturer's Warranty Thank you for choosing VIVIDSTORM screens for your home or business. We are committed to providing high-quality products that meet your expectations. To ensure your satisfaction and peace of mind, we offer the following warranty policy for VIVIDSTORM screens: 1. - Page 25 8. Limitation of Liability: VIVIDSTORM'S liability under this warranty is limited to the repair or replacement of the defective screen or its components as stated above. VIVIDSTORM shall not be liable for any indirect, consequential, or incidental damages arising from the use or inability to use the screen.
-
Page 26: Certificate
Certificate Product Name: Product Model No: Factory serial No： Inspector: Date of production： The product has been tested and inspected after operation，and all the tests and inspections have been in accordance with the technical requirements，and its quality meets the specified requirements.Only after passing the inspection can they be allowed to leave the factory.
