Summary of Contents for VIVID STORM S

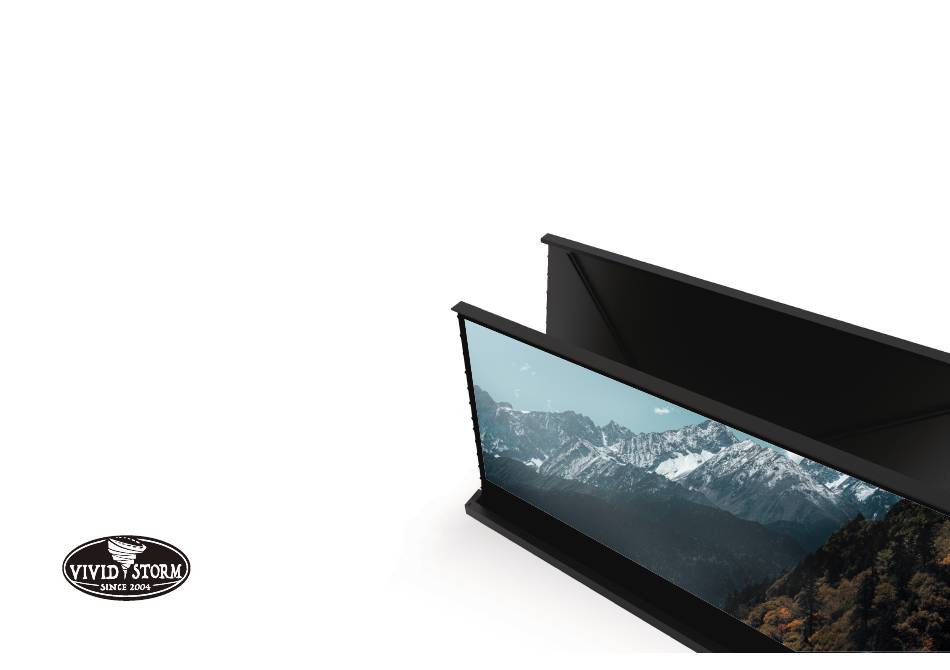

- Page 1 S Electric Tab-Tension Floor Screen USER MANUAL...
-
Page 2: Table Of Contents
Black border up --------22 (Raise the fixed height of the screen) Certificate ------------------------------------------------8 Screen Maintenance ----------------------------------24 Important Safety Precautions -----------------------9 Manufacturer's Warranty ----------------------------25 Matters Needing Attention -------------------------10 Certificate -----------------------------------------------27 Matters Concerning Projection --------------------11 Product Warranty Card -------------------------------27 Projected Area ---------------------------------------11... -
Page 3: To Users
Shipping Instructions Earth Terminal Ground Symbol Please use this product's original packaging or same materials to This refers to using this product needs electrical grounding. transport this product. This symbol reminds users not to throw sundries into This symbol reminds the user to stay away from the inside of the housing inside to avoid mechanical damage to the screen. - Page 4 To prevent electric shock, fire hazard. - Using incorrect cables may affect product performance, and may even lead to electric shock, fire and other accidents. In order to ensure product performance and safety, please use the same type of cable as the original cable. - If a power extension cord is required, use a power cord with an amperage rating not lower than that of the product.
-
Page 5: Packing Contact
Packing Contact When opening the box, check the contents of the box the list below. If there is any omission, please contact the dealer in time. S Electric Tab-Tension Floor Screen USER MANUAL Projection screen User manual+Envelopes Power cord (IR)Infrared remote... -
Page 6: The Introduction Of Product
The Introduction Of Product Appearance The white area is the The black area is the standard projected area non-projected area Upper Cover Support bar Tab-Tension Screen material Bottom Black border Housing Power cord (Screen open - front view) (Screen open- rear view) Rotatable bracket Adjust Holes Housing... - Page 7 Appearance Upper Cover (Screen close - front view) Rotatable bracket Housing Support bar Screen material (Screen close - back view) Rotatable bracket Housing Screen manual switch Infrared receiver outlet hole Screws Housing Power cord socket Power Switch (Screen open - left view) (Screen open- right view) (Screen close - front view) (Screen close - back view)
- Page 8 Appearance Upper cover Screen material Screen Black border Housing IR receiver Power cord socket Power Switch Screen manual switch Schematic diagram of left end cover...
-
Page 9: Certificate
Pilot lamp Screen manual switch Power lamp, make the following prompts Pilot lamp Power cord socket for the working status: - In the left picture (picture 1), when the red light is on, it is working normally. If the red light or the green light is flashing, it is the code matching and abnormal situation, please contact the after-sales support. -
Page 10: Important Safety Precautions
Important Safety Precautions Please read all the contents of the user guide carefully and follow the operation steps below. For reference when necessary, please keep this user guide. 1. In order to avoid damage to the equipment, please prohibit the use of any accessories not authorized by the manufacturer. 2. -
Page 11: Matters Needing Attention
Matters Needing Attention No one is allowed to open the inside of the equipment and repair the product without authorization, except for the authorized technicians. 1. Please make sure that the power supply connected to this product has stable current. 2. -
Page 12: Matters Concerning Projection
Matters Concerning Projection Projected Area 1.Please project according to the actual projection size of the screen purchased when using the projector. 2.Since the position of black border has been preset on the screen of this product, please do not exceed the specified projected area during projection. -
Page 13: About Screen Performance
3.If there are regular creases on the screen surface after the screen is opened, don't worry. This is a normal phenomenon. It is caused by the screen being curled and tightened for a long time, which does not affect the user's viewing. After... -
Page 14: Installation Warning
Installation Warning Since the installation environment of each user is different, the instructions in this user guide are only for reference. If you need further installation and safety suggestions, please consult the professional installation company. It should be noted that no matter what kind of installation method you take, the product should not be loosened or dropped due to vibration or tension, so as to keep the product stable. -
Page 15: Ground Installation
Ground Installation Safety tips: it is recommended that two people lift the product and place it horizontally. 1. When using this product, you can place the product on the horizontal ground and fix it. Before placing the product, please pay attention to cleaning the ground debris to keep the floor dry. -
Page 16: Wall Installation
Wall Installation (The wall hanger can be used as a reference If additional purchase it) 1. If you purchase the wall brackets, you can fix the product screen on the wall. 2. When installing the product, first you need to make a horizontal mark on the wall and mark the hole position, and then fix the wall brackets on the wall. -
Page 17: Screen Running
Screen Running Voltage information: make sure your screen is working at the correct voltage, depending on the area. (1) Plug the screen power cord into the correct power outlet. (2) When the product power is turned on, a "beep" sound will be emitted for 1.5 seconds, indicating that the product has been powered on. -
Page 18: Remote Control
2.Remote control——RF remote control / IR remote control (1) Wireless RF remote control: when the screen is hidden and installed in the slot or requires remote control, wireless remote control can be used. It can control the screen without aiming at the IR receiver. (2) IR remote control needs to be connected with the IR receiver. - Page 19 For convenient access, the remote controller can be fixed on the wall surface and other planes through the bracket.(wall screw or double-sided adhesive tape can be used for fixation) inside the wall outside of a wall...
- Page 20 When the battery of the remote control needs to be replaced, as shown in the figure below, unscrew the cover of the remote control with a small screw, then replace the new button battery, close the cover of the remote control, and tighten the screw to prevent the loose battery from falling off;...
-
Page 21: Screen Hight Limit Setting
Screen Hight Limit Setting Lower the fixed height of the screen （The highest position of the screen has been set when leaving the factory, no higher height can be adjusted） If the screen is too high, follow the steps below to fix the screen to the desired position. 1. - Page 22 Open the rubber plug Open the rubber plug under Insert the adjusting rod into the Yellow Yellow hole position the left side of the cover hole in the housing and rotate clockwise (rotate one circle and adjust the screen height about 2cm) Then press the "up"...
-
Page 23: Raise The Fixed Height Of The Screen
Raise the fixed height of the screen （Only applicable after the black border is adjusted too low） If the height adjustment of the black border of the screen is too low, please follow the following steps: (please note: it is not allowed to carry out this step directly without adjusting too low) (1) Please press the "up"... - Page 24 Open the rubber plug Open the rubber plug under Insert the adjusting rod into the Yellow Yellow hole position the left side of the cover hole in the housing and anti-clockwise rotation(rotate one circle and adjust the screen height about 2cm) Only applicable after the black border is adjusted too low！...
-
Page 25: Screen Maintenance
Screen Maintenance Cleaning requirements: 1. It can be cleaned with soft water; 2. Please use a clean cotton cloth or soft dust brush to remove dust particles on the screen; 3. Due to the weather, especially the humidity；The screen surface may be wrinkled,it is a normal situation; it can return to normal under normal temperature, and can be relieved by heating with a hair dryer. -
Page 26: Manufacturer's Warranty
(3). Improper use caused by not operating according to the product manual; (4). Product quality problems caused by installation, maintenance, alteration, disassembly, and assembly without the authorization of the company, as well as the user's own misuse, collision, scratching, etc.; (5) The proper working environment is not provided;... - Page 27 (8). The validity period of the guarantees has exceeded. (9). The product has no quality problems after testing, BUT it has exceeded the 7-day noreason return period (10).Damage caused by force majeure; (11). Labels, machine serial numbers, and anti-counterfeiting signs are torn, altered, brands, warranty cards, and serial numbers are inconsistent with the product, or the product has been altered;...
-
Page 28: Certificate
Product Warranty Card User information Customer retention sheet Customer name： Customer telephone: Postcode: Customer's address: E-Mail: Purchasing channels： Purchase date: Date of production： Invoice number： Warranty content： Customer signature：...
