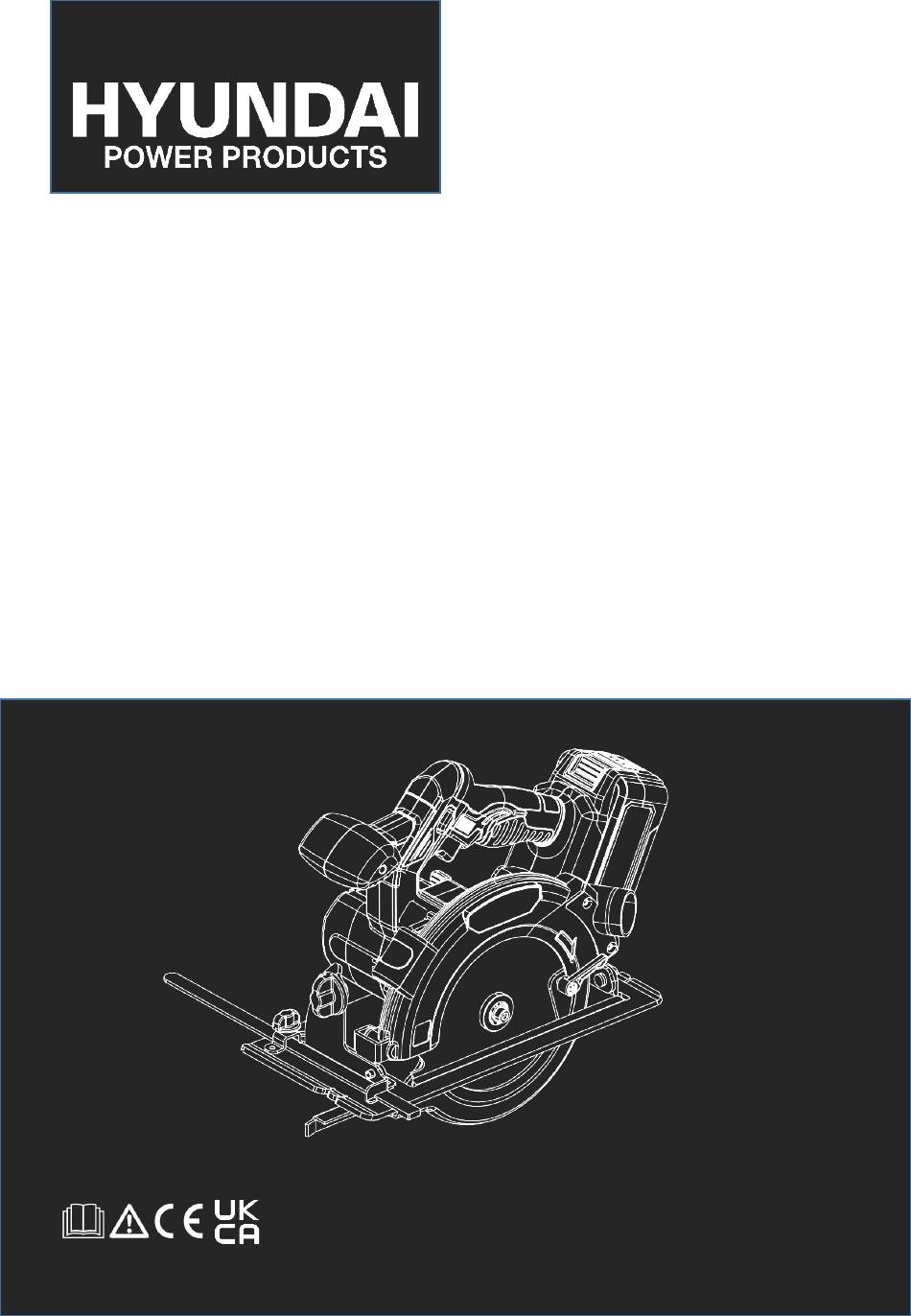

- Page 1 20V Cordless Circular Saw HY2183 Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Introduction……..……………………………3 Technical Data…………......22 Safety Information…..…………………..4-13 Recycling And Disposal..………………...23 Understand Your Machine.…..…………...4 Personal Safety...…….……………………4-5 Declaration Of Conformity…..…………..24 Inspect Your Machine…………………..5 Work Area…….……………………………..6 Useful Information…..……………………..25 During Use…….………………………………7 Our YouTube Channel…..………………..25 Batteries…….…………………………………8 Warranty…………………………………….25 Charger………………………………………..8 Manual Updates….……………………….25 Electricity…….………………...…………...8-9 Returning Your Product….……………….25 Double Insulated Devices…..……..9 Leaving A Review….……………………...25 Vibrations….…………………………..10 Ordering Spare Parts.……………………..25... -
Page 3: Introduction
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... -
Page 8: Batteries
Safety Information Batteries Batteries present a risk if they become damaged by the possible leaking of electrolyte. Electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 9: Electricity
Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •... -
Page 10: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Intended Use
Safety Information Intended Use The HY2183 is a 20V Cordless Circular Saw. It is powered by a HYUNDAI Electric motor. This machine is specifically a pedestrian tool, manufactured according to the latest safety requirements. Every precaution is only effective when it’s followed exactly. -
Page 12: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 13: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. -
Page 14: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 15: Features
Unboxing *Not To Scale Features Spindle Lock Button Auxiliary Handle Fence Lock Nut Safety Switch Fence On/Off Switch Depth Lever Upper Guard Lower Guard Lever 2.0Ah 20V Max Battery 2A Battery Charger Lower Guard Baseplate Battery Release Button Bevel Lock Nut & Bevel Scale Depth Scale www.hyundaipowerproducts.co.uk... -
Page 16: Assembly
Assembly HY2183 Battery Assembly Ensure correct PPE is always worn when handling this machine. Slide the Battery(M) into the Battery Carriage at the bottom on the Machine Handle. An audible *click* will be heard when it’s correctly located To Remove the Battery, press the Battery Release Button (O), and pull. -
Page 17: Operation
Operation Battery Charger Operation Ensure the power source switch is OFF when plugging in Battery Charger You MUST understand the whole Instruction Manual before any operation Slide the Battery into the Battery Charger, by lining up the terminals on both. It will be secured with an affirmative *click!*. NOTE –... -
Page 18: Starting & Stopping
Operation HY2183 Starting & Stopping Warning! You MUST read and fully understand the whole user manual before operation To start the machine, firstly press the Safety Switch (B). At the same time, press the On/Off Trigger (C). The machine will start. -
Page 19: Depth Adjustment
Operation HY2183 Depth Adjustment Warning! You MUST read and fully understand the whole user manual before operation Set the Baseplate (G) against a flat surface, and release the Depth Lever (L). Now you can Raise and lower the machine to set the cutting depth. -
Page 20: Removing/Replacing Blade
Operation HY2183 Removing/Replacing Blade Warning! NEVER attempt to Remove/Replace the blade with the battery installed. Adjust the machine depth to as shall as possible, this will ensure the most ease during the process Press the Spindle Lock Button, and at the same time turn the Blade Bolt (1) clockwise with the included tool. -
Page 21: Maintenance & Care
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 22: Technical Data
Technical Data Machine Specification Model HY2183 No Load Speed 4000rpm Blade Diameter 165mm Max. Cutting Capacity 55mm 36mm Max. Cutting Capacity at 45 ° Net Weight 2.71kg www.hyundaipowerproducts.co.uk... -
Page 23: Recycling And Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 24: Declaration Of Conformity
Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 20V Max Cordless Circular Saw SKU Code: HY2183 Date of Issue: 09/12/2021 Regulations and Directives of Compliance • 2006/42/EC The Machine Directive • 2014/30/EU EMC Directive • 2011/65/EU RoHS... -
Page 25: Useful Information
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 26: Product Record
Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:……………………………………………………………………………….. -
Page 27: Notes
Notes www.hyundaipowerproducts.co.uk... - Page 28 Notes www.hyundaipowerproducts.co.uk...
- Page 29 Notes www.hyundaipowerproducts.co.uk...
- Page 30 Notes www.hyundaipowerproducts.co.uk...
-
Page 31: Contact Us
Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 32 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
