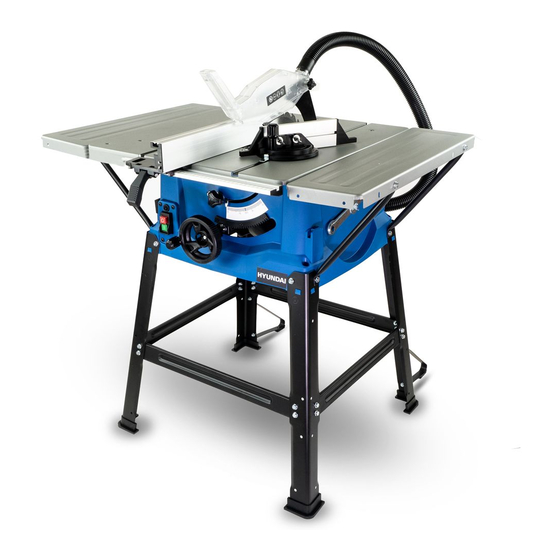

- Page 1 TABLE SAW HYTS1800E Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Maintenance & Care…..……………..33-35 Introduction……..……………………………3 General Maintenance.……………………33 Storage…….…….…...………………………33 Safety Information…..…………………..4-13 Cleaning…….…...………………………..33 Understand Your Machine.…..…………...4 Blade Replacement……..……………….34 Personal Safety...…….……………………4-5 Blade Angle Calibration..……………35 Inspect Your Machine…………………...5-6 Work Area…….……………………………..6 Troubleshooting….….………………………36 Table Saw Safety…………………………….7 During Use…….………………………………8 Batteries…….…………………………………9 Specifications……………………....37 Electricity…….………………...……………...10 Double Insulated Devices…..……..10 Recycling And Disposal..………………...38 Vibrations….…………………………..11 Noise…….……………………………..11 Declaration Of Conformity…..…………..39... -
Page 3: Introduction
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. - Page 7 Safety Information Table Saw Safety • Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly must be repaired or replaced. • Always use saw blade guard, riving knife and anti-kickback device for every through–cutting operation.
-
Page 8: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... -
Page 9: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 10: Electricity
Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •... -
Page 11: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 12: Residual Risks
Safety Information Intended Use The HYTS1800E is an electric Table Saw from HYUNDAI. The HYTS1800E is powered by a 1800W HYUNDAI motor. This machine is a specifically a pedestrian tool, manufactured according to the latest safety requirements. Every precaution is only effective when it’s followed exactly. -
Page 13: Intended Use
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 14: Personal Protective Equipment
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. -
Page 15: Symbols On The Machine
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 16: In The Box
In The Box *Not To Scale Manual Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 17 Box Contents Main Body (Saw Blade Fitted) Table Extensions x2 Legs x4 Leg Brace A x2 Leg Brace B x2 Extension Strut x4 Riving Knife Rubber Feet x4 Leg Stabilisers x2 Push Stick Fence Rail Support Bracket A (right) x2 Support Bracket B (left) x2 User Manual Extraction Hose...
-
Page 18: Features.........................................18-19 Ordering Spare Parts
Features Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 19 Features On/Off Switch Used to start and stop the machine. Bevel Locking Lever This is used to secure the blade at different angles Bevel Gauge This is used to measure which angle the blade is set to. Blade Adjustment Wheel Adjusts the height of the cutting blade Fence Rail with Scale The Rip Fence is secured to this rail...
-
Page 20: Assembly
Assembly Overview STEP 1 : Attach Table Extensions – Page 20 STEP 2 : Attach the Extensions Supports – Page 21 STEP 3 : Attaching Legs – Page 22 STEP 4 : Attaching Let Braces – Page 23 STEP 5 : Installing Fence Rail – Page 24 STEP 6 : Riving Knife Installation –... -
Page 21: Attach Table Extensions
Assembly STEP 1 : Attach Table Extensions 1. On a flat even surface, put the Main Body (A) upside down. Use a soft barrier between the machine and the surface to prevent scratches i.e. cardboard or rubber mat. 2. Line up the Table Extensions (B), and insert a bolt through the holes marked A & 3. -
Page 22: Attach Extension Supports
Assembly STEP 2 : Attach the Extensions Supports 1. With the remaining available holes, line up and insert an Extension Strut (F). Secure this with 1 bolt from the inside edge. 2. Now between the Extension Strut (F) and the Table Extension (B) insert a Support Bracket. -
Page 23: Attach Legs
Assembly STEP 3 : Attaching Legs 1. On each corner, locate a Leg (C) using the squares tabs on the main body 2. Secure with Bolts. Ensure the Support brackets on both sides are also secured. Simply pass a bolt through these, and then secure to the main body. 3. -
Page 24: Attach Leg Braces
Assembly STEP 4 : Attaching Let Braces 1. With included nuts and bolts, attach Leg Brace (A) to the front and rear pair of the legs. Ensure the Leg Brace is attached on the inside of these edges. 2. Repeat with Leg Brace (B) on the left and right Ensure all nuts and bolts are tight at this stage. -
Page 25: Install Fence Rail
STEP 5 : Installing Fence Rail 1. Do NOT attempt the next step by yourself. 1. With assistance from another person, turn the HYTS1800E over on to it’s feet. 1. Using the nuts and bolts provided, secure the Leg Stabillisers (I). -
Page 26: Install Riving Knife
Assembly STEP 6 : Riving Knife Installation 1. Using a screwdriver, remove the Blade cover. Also wind the Blade Adjustment wheel clockwise to raise the blade completely. 2. Using the spanners provided, loosen the bolt on the Riving Knife Clamp. Insert the Riving knife (G) into the clamp, ensuring a 3mm-5mm gap and tighten. -
Page 27: Step 7 : Blade Guard And Extraction Hose
Assembly STEP 7 : Blade Guard and Extraction Hose 1. Fully loosen the handnut on the Blade Guard (R).Align the handnut on the Blade Guard (R) to the Hole at the top of the Riving Knife (G). Tighten the handnut to secure the Blade Guard (R). -
Page 28: Install Mitre Gauge And Fence Rail
Assembly STEP 8 : Mitre Gauge and Fence Rail 1. Insert the Rip Fence (P) into the Fence Rail (K). Using the indicator on the Rip Fence, align it with “0” on the Fence Rail and secure by pressing the Lever down. 2. -
Page 29: Operation
NEVER use sawblades suitable for metal or ceramic cutting. The HYTS1600E is only suitable for wooden sawblade applications. The HYTS1800E comes with a 24 tooth Tungsten Carbide Tipped (TCT) blade. This Saw blade will be proficient in both Rip and Cross cuts, although may be more suited to rip cutting. -
Page 30: Blade Adjustment
Operation Blade Adjustment Blade Height Adjustment – To adjust the working height of the blade, turn the Blade Adjusting Handwheel Clockwise. Turn the Blade Adjusting Handwheel Anti- Clockwise to lower the blade Blade Angle Adjustment – To adjust the angle on the blade, loosen the Bevel Locking Lever. -
Page 31: Cutting Illustrations
If the desired cut is less than 100mm away from the saw blade, you MUST use the pushrod to ensure no contact with the sawblade. All the illustrations below are simply suggestions how to use the HYTS1800E. Genpower Ltd is not liable for any damages to the machine, materials/possessions or persons. -
Page 32: Starting And Stopping
Operation Starting and Stopping 1. Before plugging the machine into a power source, ensure the switch if OFF 1. Before starting the machine, you MUST fully read and understand the Instruction Manual 1. NEVER try to start the machine with any work material in the blade Starting –... -
Page 33: Maintenance & Care
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 34: Blade Replacement
Maintenance & Care Blade Replacement 1. Ensure the machine is UNPLUGGED from a power source before performing the followings steps. REMOVE the Blade Guard and Blade cover and Extraction Hose . These only ever need to be removed unless damaged or performing maintenance. 1. -
Page 35: Blade Angle Calibration
Maintenance & Care Blade Angle Calibration 1. Ensure the machine is UNPLUGGED from a power source before performing the followings steps. 1. Specialist Tools are required to perform this step. REMOVE the Blade Guard and Blade cover and Extraction Hose . These only ever need to be removed unless damaged or performing maintenance. -
Page 36: Troubleshooting
Maintenance & Care Troubleshooting NOTE : All corrective actions should be carried out by suitably qualified person/s. Problem Possible Cause Possible Solution Machine will not start. Fuse in mains plug blown Check fuse in mains plug / faulty and replace is necessary. Internal wiring fault. -
Page 37: Specifications
Technical Data Specification Model HYTS1800E Voltage 230-240V Frequency 50Hz No-load Speed 5000r/min Include Blade Dimensions 250mm x 30mm x 2.8mm x 24T Cutting Range (Degrees) – 45 Operating Height 829mm Table Top Dimensions 563mm x 583mm x 28mm Maximum Cutting Height @ 0... -
Page 38: Recycling And Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 39: Declaration Of Conformity
Genpower Ltd Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 1800W Table Saw SKU Code: HYTS1800E Date of Issue: 09/06/2021 Regulations and Directives of Compliance • 2006/42/EC The Machine Directive • 2014/30/EU EMC Directive • 2000/14/EC Noise Emissions •... -
Page 40: Notes
Notes www.hyundaipowerproducts.co.uk... - Page 41 Notes www.hyundaipowerproducts.co.uk...
-
Page 42: Useful Information
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 43: Product Record
Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:……………………………………………………………………………….. -
Page 44: Contact Us
Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 45 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
