Hyundai HYPS36LI User Manual

Hyundai HYPS36LI User Manual

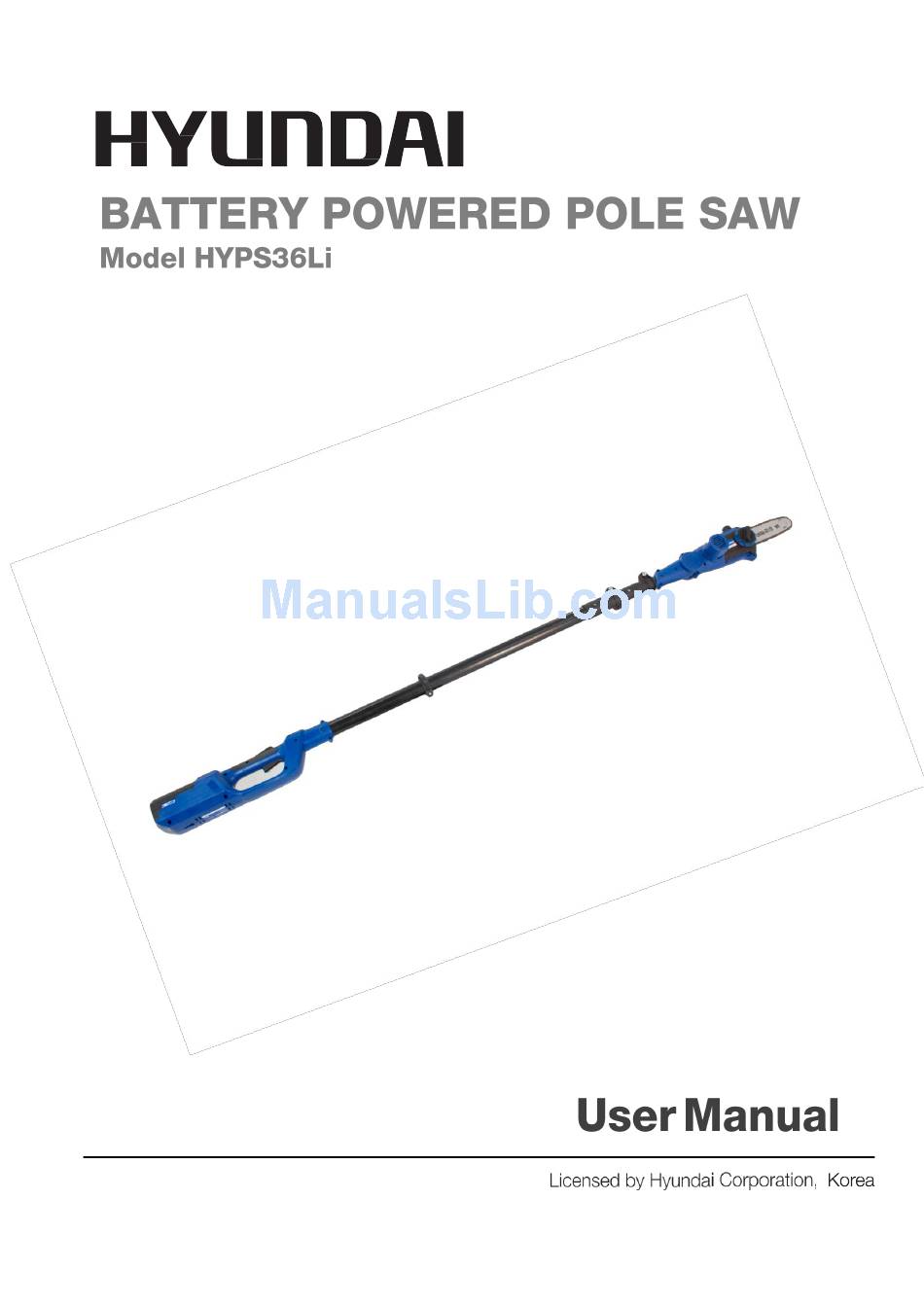

Battery powered pole saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai HYPS36LI

Summary of Contents for Hyundai HYPS36LI

  • Page 2: Table Of Contents

    CONTENTS o’s Section Description Page N 1. SAFETY INSTRUCTIONS 3 – 7 2. MACHINE PARTS 8 – 9 3. ASSEMBLY 9 – 12 4. PREPARING TO WORK 12 – 14 5. OPERATION 14 – 19 6. MAINTENANCE 19 – 24 7.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. Safety Instructions. 1.1.1. All Operators must read these instructions before use always follow these safety guidelines. Failure to do so may result in serious bodily injury or death. Read Non-observance will Non- observance will Indicates a hazard NOTE or Manual result in the risk of...
  • Page 4 1.2. General safety. When using cordless yard tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following; 1.2.1. Keep guards in place, protective guards should be checked periodically to make sure they are fitted properly and in correct working order.
  • Page 5 1.2.21. Stay alert – Watch what you are doing. Use common sense. Do not operate the pole chain saw when you are tired. 1.2.22. Store idle tool indoors – When not in use, appliances should be stored indoors in a dry and high or locked-up place out of the reach of children.
  • Page 6 1.6.4. Repairs to this cordless pole chain saw should be performed only by qualified personnel. For safety reasons use only original Hyundai spare parts. 1.6.5. Keep the pole chain saw clean and dry. Store it away from direct sunlight and out of the reach of children.
  • Page 7 1.7.11. Use the low kickback chain and guide bar supplied with the pole chain saw. Only use genuine Hyundai spares with this pole chain saw. 1.7.12. Never use a dull or loose chain. Keep the chain sharp and with proper tension.

  • Page 8: Machine Parts

    2. MACHINE PARTS 2.1. Part descriptions. 8 in. (203 mm) 8 in. (203 mm) 1. Ring nut Oil tank cap. Oregon guide bar. Oregon chain. Chain tension Chain/sprocket Oil level indicator Multi-angle head adjustment knob end cover window adjustment dial Cutting bar Cam-lock nut Cam-lock...

  • Page 9: Assembly

    2.3. Carefully remove the cordless pole chain saw and check to see that all of the above items are supplied. 2.4. Inspect the product carefully to make sure no breakage or damage occurred during shipping. The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts.
  • Page 10 3.2.2. Remove the guide bar and chain from the mounting surface (Fig. 3). 3.2.3. Remove the old chain from the bar. 3.2.4. The big gear that controls the chain tension comes pre-installed on the original guide bar, when replacing the guide bar, remove it off the old guide bar and reinstall it on the new guide bar (Fig.
  • Page 11 3.2.6. Starting at the tip, mount the chain drive links into the bar groove, leaving a loop at the back of the bar. The chain will loosely fit until it placed on the sprocket (Figs. 6 & 7). Make certain of the direction of the chain .

  • Page 12: Preparing To Work

    3.2.9. Turn the ring nut clockwise until you find right chain tension, then tighten the chain tension adjustment knob securely (Fig. 10). The chain is correctly tensioned when there is no sag on the underside of the guide bar; the chain is snug, but can be rotated by hand without binding. For more information on chain tensioning, see the maintenance section.
  • Page 13 4.1.1. Starting, stopping and restarting the motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. To protect the life of your cordless pole chain always wait at least five seconds after stopping before restarting the saw. It is normal for oil to seep from the saw when not in use.

  • Page 14: Operation

    5. OPERATION 5.1. Starting the Machine. 5.1.1. Insert the battery in its housing (Fig. 18). 5.1.2. Take off the bar sheath. 5.1.3. Make sure the guide bar is not touching the ground or any other object. 5.1.4. Hold the pole chain saw firmly with both hands. 5.1.5.
  • Page 15 5.1.6. To turn the tool OFF, release the trigger switch. 5.1.7. Lift the push lock button and pull out the battery (Fig. 14). 5.2. Adjusting the Telescoping Pole. 5.2.1. Turn OFF the trigger switch. 5.2.2. Unclip the cam-lock to release the pole (Fig. 20). 5.2.3.
  • Page 16 Failure to lock the telescopic pole cam-lock as directed could result in personal injury. 5.3. Tightening the Bolt. 5.3.1. The retaining bolt may need tightening to secure the telescopic pole in place. 5.3.2. Unclip the cam-lock. Using a hex key wrench, tighten the cam-lock nut, then close the cam- lock.

  • Page 17: Operation

    5.5. Cutting tips. 5.5.1. Proper Cutting Stance. 5.5.1.1. Balance your weight with both feet on solid ground. 5.5.1.2. Your body should always be to the left of the chain line. 5.5.1.3. The most typical cutting application is to position the unit at an angle of 60° or less depending on the specific situation (Fig.
  • Page 18 5.5.3.6. Now make your finishing cut form the topside of the branch smoothly and neatly against the main member so the bark will grow back to seal the wound. 5.5.3.7. Release the trigger ON/OFF switch as soon as the cut is completed. Failure to follow proper cutting procedures will result in the bar and chain binding and becoming pinched or trapped in the limb.

  • Page 19: Maintenance

    Never use the machine with worn or damaged parts. Damaged parts are to be replaced and never repaired. Only use original Hyundai replacement parts. Parts that are not of the same quality can seriously damage the equipment, compromise safety and invalidate the warranty.
  • Page 20 6.2.2. During normal saw operation, the temperature of the chain will increase. The drive links of a correctly tensioned warm chain will hang approximately 0.050 in. (1.25 mm) out of the bar groove (Fig. 28). Be aware that a chain tensioned while warm, may be too tight upon cooling. Check the “cold tension”...
  • Page 21 6.5. Chain Sharpening. To ensure that the chain saw works safely and efficiently it is, essential that the cutting components are well-sharpened. It is highly recommended to replace the chain once it loses its ability to cut cleanly and safely. It is possible, however, to sharpen the existing chain if the sharpening is carefully performed.
  • Page 22 6.6. Guide bar maintenance. 6.6.1. When the guide bar shows signs of wear, turn it over on the saw to distribute the wear for maximum bar life. Feathering or burring of the bar rails is a normal process of bar wear. You should smooth such faults with a file as soon as they occur.
  • Page 23 Remove the battery and wait at least five minutes for the saw to cool before servicing or storing your unit. If you drop the saw, carefully inspect it for damage. If the guide bar is bent, the housing is cracked, the handle is broken or if you see any other condition that may affect the saw’s operation, DO NOT USE the tool.
  • Page 24 6.11.2.3. The recharging phases are indicated by the charge status lights (6), 6.11.2.4. Battery charger connected = Green charge light (4) is on. 6.11.2.5. Battery inserted and recharging in progress = Green power light (3) on and Charge light (4) on (Red when charging). 6.11.2.6.

  • Page 25: Troubleshooting

    (no red led on). Defective battery charger. Replace with original spare. 8. SPECIFICATION HYPS36Li Pole Saw Battery charger supply vac/hz 230/50 Battery type Samsung Lithium ion Battery voltage vdc Battery capacity Ah...

  • Page 26: Environmental

    9. ENVIRONMENTAL 9.1. Do not dispose of electric equipment together with household waste material! In observance of European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

  • Page 27: Declarations Of Conformity

    11. DECLARATIONS OF CONFORMITY 11.1. Genpower Ltd confirms that this Hyundai product conform to the following CE Directives; 11.1.1. 2006/42/EC Machinery Directive 11.1.2. 2004/108/EC EMC Directive 11.1.3. 2000/14/EC, Amended by 2005/88/EC (as amended) Noise Directive Page 27 Ver 2...
  • Page 28 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
