Harman Infinity Reference 607F Installation Manual

Hide thumbs

page of 59

/ 59
Bookmarks

Quick Links

Download this manual

INSTALLATION MANUAL

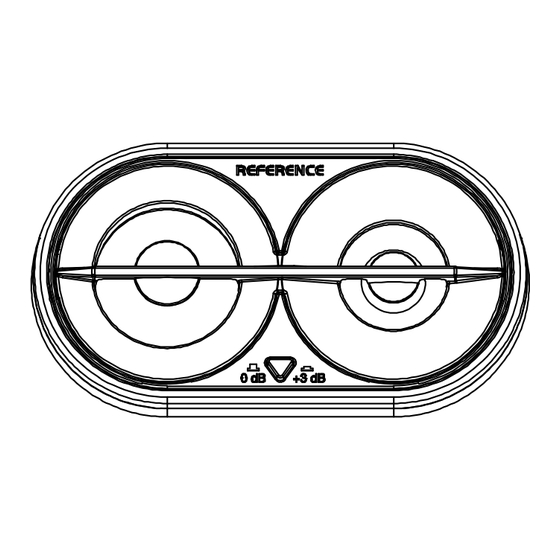

Reference 607F

Reference 697MF

Reference 307F

Reference 407F

Reference 507F

Reference 467F

Reference 687F

Reference 507CF

Reference 607CF

Reference 697CF

Reference 757T

Reference 607FSL

Reference 697F

Need help?

Do you have a question about the Infinity Reference 607F and is the answer not in the manual?

Questions and answers

Summary of Contents for Harman Infinity Reference 607F

Page 1 INSTALLATION MANUAL Reference 607F Reference 467F Reference 757T Reference 697MF Reference 687F Reference 607FSL Reference 307F Reference 507CF Reference 697F Reference 407F Reference 607CF Reference 507F Reference 697CF...
Page 2 Reference 607F...
Page 3 127.0mm 158.0mm...
Page 5: Specifications
Specifications Thiele-Small Parameters • BL (Tm): 3.378 • Type: 6-1/2" (160mm) high performance coaxial car speaker • DCR (ohms): 2.72 • Continuous power handling: 60W • Mms (g): 12.109 • Peak power handling: 180W • Sd (cm2): 134.78 • Frequency response: 53Hz-21kHz •...
Page 6 Reference 697MF...
Page 7 214.6mm 236.5mm...
Page 9 Specifications Thiele-Small Parameters • BL (Tm): 4.298 • Type: 6" x 9" high performance three- way car speaker • DCR (ohms): 2.51 • Continuous power handling: 100W • Mms (g): 23.704 • Peak power handling: 300W • Sd (cm2): 237.79 •...
Page 10 Reference 307F 75.5mm 87.0mm...
Page 12 Specifications Thiele-Small Parameters • BL (Tm): 1.969 • Type: 3-1/2" (87mm) high performance coaxial car speaker • DCR (ohms): 2.36 • Continuous power handling: 25W • Mms (g): 3.424 • Peak power handling: 75W • Sd (cm2): 63.76 • Frequency response: 85Hz-21kHz •...
Page 13 Reference 407F 92.1mm 102.4mm...
Page 15 Specifications Thiele-Small Parameters • BL (Tm): 3.191 • Type: 4" (100mm) high performance coaxial car speaker • DCR (ohms): 2.38 • Continuous power handling: 35W • Mms (g): 5.777 • Peak power handling: 105W • Sd (cm2): 63.62 • Frequency response: 75Hz-21kHz •...
Page 16 Reference 507F 113.6mm 129.0mm...
Page 18 Specifications Thiele-Small Parameters • BL (Tm): 3.156 • Type: 5-1/4" (130mm) high performance coaxial car speaker • DCR (ohms): 2.60 • Continuous power handling: 45W • Mms (g): 9.242 • Peak power handling: 135W • Sd (cm2): 107.51 • Frequency response: 67Hz-21kHz •...
Page 19 Reference 467F 140.4mm 157.0mm...
Page 21 Specifications Thiele-Small Parameters • BL (Tm): 3.109 • Type: 4" x 6" high performance coaxial car speaker • DCR (ohms): 2.74 • Continuous power handling: 45W • Mms (g): 9.103 • Peak power handling: 135W • Sd (cm2): 88.25 • Frequency response: 75Hz-21kHz •...
Page 22 Reference 687F...
Page 23 182.6mm 220.0mm...
Page 25 Specifications Thiele-Small Parameters • BL (Tm): 3.636 • Type: 6" x 8" high performance coaxial car speaker • DCR (ohms): 2.39 • Continuous power handling: 60W • Mms (g): 16.420 • Peak power handling: 180W • Sd (cm2): 113.10 • Frequency response: 49Hz-21kHz •...
Page 26 Reference 507CF 100.0mm 129.0mm 83.0mm 1-13/16" 46mm 2-3/16" 56mm 5/8" 16.1mm 13/16" 20mm 1-9/16" 113.6mm 40mm...
Page 32 Specifications Thiele-Small Parameters • BL (Tm): 3.390 • Type: 5-1/4" (130mm) high performance component speaker • DCR (ohms): 2.49 system • Mms (g): 11.281 • Continuous power handling: 65W • Sd (cm2): 107.51 • Peak power handling: 195W • Cms (μm/N): 0.230 •...
Page 33 Reference 607CF 100.0mm 158.0mm 83.0mm 1-13/16" 46mm 2-3/16" 56mm 5/8" 16.1mm 13/16" 20mm 1-9/16" 127.0mm 40mm...
Page 39 Specifications Thiele-Small Parameters • BL (Tm): 3.659 • Type: 6-1/2" (160mm) high performance component speaker • DCR (ohms): 2.44 system • Mms (g): 14.392 • Continuous power handling: 90W • Sd (cm2): 134.78 • Peak power handling: 270W • Cms (μm/N): 0.490 •...
Page 40 Reference 697CF 100.0mm 236.5mm 83.0mm 1-13/16" 46mm 2-3/16" 56mm 5/8" 16.1mm 13/16" 20mm 1-9/16" 214.6mm 40mm...
Page 46 Specifications Thiele-Small Parameters • BL (Tm): 4.140 • Type: 6" x 9" high performance component speaker system • DCR (ohms): 2.61 • Continuous power handling: 125W • Mms (g): 23.854 • Peak power handling: 375W • Sd (cm2): 237.79 • Frequency response: 46Hz - 21kHz •...
Page 47 Reference 757T...
Page 51 Specifications • Type: 3/4" (19mm) high performance component tweeter • Continuous power handling: 45W • Peak power handling: 135W • Frequency response: 2.5kHz - 21kHz • Nominal impedance: 3.0ohms • Sensitivity (2.83V/1m): 93dB • External diameter: 2-1/4" (56mm) • Mounting cutout diameter: 1-5/8" (40mm) •...
Page 52 Reference 607FSL 123.4mm 158.0mm...
Page 54 Specifications Thiele-Small Parameters • BL (Tm): 3.433 • Type: 6-1/2" (160mm) high performance EZFit coaxial car speaker • DCR (ohms): 2.45 • Continuous power handling: 55W • Mms (g): 10.963 • Peak power handling: 165W • Sd (cm2): 134.78 • Frequency response: 57Hz-21kHz •...
Page 55 Reference 697F...
Page 56 214.6mm 236.5mm...
Page 58 Specifications Thiele-Small Parameters • BL (Tm): 3.830 • Type: 6" x 9" high performance coaxial car speaker • DCR (ohms): 2.31 • Continuous power handling: 100W • Mms (g): 22.999 • Peak power handling: 300W • Sd (cm2): 237.79 • Frequency response: 46Hz - 20kHz •...
Page 59 Northridge, CA 91329 USA © 2024 HARMAN International Industries, Incorporated. All rights reserved. Infinity is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
