- Page 1 STUDIO 6 SERIES ® loudspeakers Studio 698 Studio 690 Studio 680 Studio 660P Studio 650P Studio Studio Studio Studio 625C Studio 665C OWNER’S MANUAL...
-
Page 2: Included Items
THANK YOU FOR CHOOSING THIS JBL PRODUCT ® For more than 60 years, JBL engineers have been involved in every aspect of music and film recording and ® reproduction, from live performances to the recordings you play on the go and in your home, car or office. We’re confident that the JBL system you have chosen will provide every note of enjoyment you expect –... - Page 3 PLACEMENT STUDIO 698/STUDIO 690/STUDIO 680 – LEFT AND RIGHT CHANNELS For the best results, place the speakers 6 – 10 feet (1.8m – 3m) apart. Angling the speakers toward the listening position can improve the stereo imaging. The speakers will produce the most accurate stereo soundstage when the angle between the listener and the speakers is between 40 and 60 degrees.

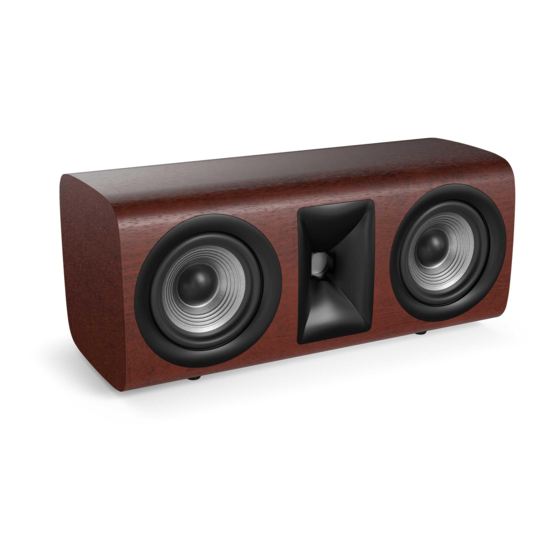

- Page 4 STUDIO 625C/665C You should place the 625C/665C center speaker directly above or below the center of your TV screen. The center of the speaker’s horn should be no more than 2 feet (61cm) above or below the centers of the front left and front right speakers’...
- Page 5 STUDIO 630/620/610 – SURROUND CHANNELS (5.1-CHANNEL SYSTEM) When you use Studio 630/620/610 speakers as surround-channel speakers in a 5.1-channel system, place them slightly behind the listening position, facing each other. Ideally, they should be 3 – 4 feet (0.9m – 1.2m) above the floor. An alternate location would be on a wall behind the listening position, facing forward.
- Page 6 STUDIO 630/620/610 – SURROUND CHANNELS (7.1-CHANNEL SYSTEM) When you use Studio 630/620/610 speakers as surround-channel speakers in a 7.1-channel system, place the surround side speakers directly to the sides of the listening position, at least 3 – 4 feet (0.9m – 1.2m) above the floor. Place the surround back speakers on the wall behind the listening position, also at least 3 –...
-
Page 7: Removing The Grilles
REMOVING THE GRILLES You can remove the Studio 6 speaker grilles by pulling them away from the enclosure. Remove Grille Remove Grille www.jbl.com... - Page 8 CONNECTIONS CAUTION: Make sure that all of the system’s electrical components are turned OFF (and preferably unplugged from their AC outlets) before making any connections. Speakers and amplifiers have corresponding positive and negative (“+” and “–”) connectors. All Studio 6 series speakers have connectors that are marked “+”...
-
Page 9: Bi-Wire Connection
BASIC SINGLE-WIRE CONNECTION To connect the speakers using a single wire, connect the amplifier to each speaker as shown in the illustration below. You can use either set of connectors on the connector panel. IMPORTANT: Do not remove the metal jumper bars from between the two sets of connectors when connecting the speaker wires. -
Page 10: Caring For Your Speakers
SINGLE-AMPLIFIER BI-WIRING Left Right Speaker Speaker Amplifier Left Right Compression Driver/ Compression Driver/ Horn Connector Horn Connector Woofer Woofer Connector Connector DUAL-AMPLIFIER BI-WIRING Left Right Speaker Speaker Amplifier 1 Left Right Left Right Compression Compression Driver/Horn Driver/Horn Connector Connector Woofer Amplifier 2 Woofer Connector... -
Page 11: Specifications
SPECIFICATIONS STUDIO 698 Dual 8", 6" mid, 3-way compression driver floor standing loudspeaker 6" (152mm) PolyPlas Mid-range Transducer Dual 8” (203mm) PolyPlas cone Low-Frequency Transducer High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver Recommended Amplifier Power: Max 250W Frequency Response: 36 Hz - 40 kHz... - Page 12 STUDIO 680 Dual 6.5", 2.5-way compression driver floor standing loudspeaker Dual 6.5" (165mm) PolyPlas Low-Frequency Woofer High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver Recommended Amplifier Power: Max 200W Frequency Response: 38 Hz - 40 kHz Sensitivity: 88dB, 1M, @2.83V Nominal Impedance:...
- Page 13 STUDIO 620 Single 5.25", 2-way compression driver bookshelf loudspeaker 5.25" (133mm) PolyPlas Low-Frequency Woofer High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver Recommended Amplifier Power: Max 100W Frequency Response: 50 Hz - 40 kHz Sensitivity: 84 dB, 1M, @2.83V Nominal Impedance: 6 Ohms Crossover Frequencies:...
- Page 14 STUDIO 665C Quad 5.25", 2.5-way compression driver center loudspeaker Quad 5.25" (133mm) PolyPlas Low-Frequency Woofer High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver Recommended Amplifier Power: Max 200W Frequency Response: 58 Hz - 40 kHz Sensitivity: 90 dB, 1M, @2.83V Nominal Impedance: 6 Ohms...
- Page 15 : Der henvises til jbl.com for yderligere sprog : W przypadku innych językow odwiedź stronę jbl.com JBL and HDI (High Definition Imaging) are trademarks of HARMAN International : Если вам нужны версии на других языках, перейдите на сайт jbl.com Industries, Incorporated, registered in the United States and/or other countries.
