INSTALLATION MANUAL

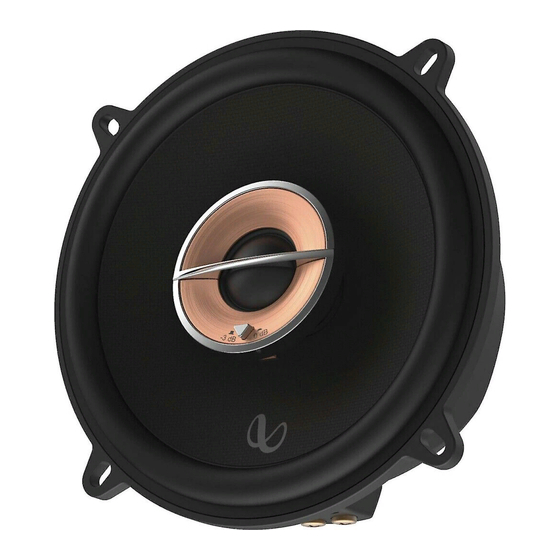

KAPPA 53XF
KAPPA 63XF
KAPPA 203S
KAPPA 303S
KAPPA 463XF
KAPPA 503CF
KAPPA 603CF
KAPPA 683XF
KAPPA 693C
KAPPA 693M
KAPPA 753T

Advertisement

loading
Need help?

Need help?

Do you have a question about the Infinity KAPPA 53XF and is the answer not in the manual?

Questions and answers

Summary of Contents for Harman Infinity KAPPA 53XF

  • Page 1 INSTALLATION MANUAL KAPPA 53XF KAPPA 463XF KAPPA 693C KAPPA 63XF KAPPA 503CF KAPPA 693M KAPPA 203S KAPPA 603CF KAPPA 753T KAPPA 303S KAPPA 683XF...
  • Page 2 KAPPA 53XF 118mm [4-21/32"] -3 dB 0 dB...
  • Page 5 Specifications Thiele-Small Parameters • Type: 5-1/4” (133 mm) Two-Way Car • BL (Tm): 3.89 Speaker • DCR (ohms): 2.70 • Power Handling: 60 Wrms, 180 W peak • Mms (g): 10.01 • Sensitivity (@ 2.83 V): 93 dB • Sd (cm2): 102.07 •...
  • Page 6 KAPPA 63XF 130mm [5-1/8"] -3 dB 0 dB...
  • Page 9 Specifications Thiele-Small Parameters • Type: 6-1/2” (165 mm) Two-way Car • BL (Tm): 4.30 Speaker • DCR (ohms): 2.70 • Power Handling: 85 Wrms, 255 W peak • Mms (g): 14.63 • Sensitivity (@ 2.83 V): 93 dB • Sd (cm2): 143.14 •...
  • Page 10 KAPPA 203S KAPPA 203S...
  • Page 11 77.7mm [3-1/16"] 65.1mm [2-9/16"] 105.0mm [4-1/8"]...
  • Page 12 -3dB 2WAY 3WAY 2WAY/3WAY...
  • Page 14 Specifications Thiele-Small Parameters • Type: 2” (50 mm) Silk Dome Midrange • Crossover Point: 600 Hz with Bandpass Crossover Enclosure • Power Handling: 50 Wrms, 150 W peak • Sensitivity (@ 2.83 V): 94 dB • Frequency Response: 500 Hz – 7 kHz •...
  • Page 15 KAPPA 303S KAPPA 303S...
  • Page 16 105.0mm [4-1/8"] 73mm [2-7/8"]...
  • Page 17 -3dB 2WAY 3WAY 2WAY/3WAY...
  • Page 19 Specifications Thiele-Small Parameters • Type: 3” (89 mm) Midrange with • BL (Tm): 5.64 Bandpass Crossover Enclosure • DCR (ohms): 2.7 • Power Handling: 55 Wrms, 165 W peak • Mms (g): 4.964 • Sensitivity (@ 2.83 V): 93 dB •...
  • Page 20 KAPPA 463XF 157mm [6-3/16"] -3 dB 0 dB...
  • Page 23 Specifications Thiele-Small Parameters • Type: 4” x 6” (104 mm x 157 mm) • BL (Tm): 3.52 Two-way Car Speaker • DCR (ohms): 2.70 • Power Handling: 60 Wrms, 180 W peak • Mms (g): 5.93 • Sensitivity (@ 2.83 V): 93 dB •...
  • Page 24 KAPPA 503CF 118mm [4-21/32"] KAPPA 503CF...
  • Page 25 52mm [2-1/16"] 35.7mm [1-13/32"] 44.4mm [1-3/4"] 24.7mm [31/32"] 35.7mm [1-13/32"]...
  • Page 26 -3dB 2WAY 3WAY 2WAY/3WAY...
  • Page 30 Specifications Thiele-Small Parameters • Type: 5-1/4” (133 mm) Two-Way • BL (Tm): 3.87 Component Speaker System • DCR (ohms): 2.70 • Power Handling: 80 Wrms, 240 W peak • Mms (g): 11.34 • Sensitivity (@ 2.83 V): 93 dB • Sd (cm2): 102.07 •...
  • Page 31 KAPPA 603CF KAPPA 603CF 130mm [5-1/8"]...
  • Page 32 52mm [2-1/16"] 35.7mm [1-13/32"] 44.4mm [1-3/4"] 24.7mm [31/32"] 35.7mm [1-13/32"]...
  • Page 33 -3dB 2WAY 3WAY 2WAY/3WAY...
  • Page 37 Specifications Thiele-Small Parameters • Type: 6-1/2” (165 mm) Two-way • BL (Tm): 4.45 Component Speaker System • DCR (ohms): 2.70 • Power Handling: 110 Wrms, 330 W peak • Mms (g): 15.35 • Sensitivity (@ 2.83 V): 93 dB • Sd (cm2): 143.14 •...
  • Page 38 KAPPA 683XF 229mm [9"] -3 dB 0 dB 180mm [7-3/32"] 123mm [4-27/32"]...
  • Page 41 Specifications Thiele-Small Parameters • Type: 6” x 8” (147 mm x 205 mm) • BL (Tm): 4.89 Two-way Car Speaker • DCR (ohms): 2.70 • Power Handling: 100 Wrms, 300 W peak • Mms (g): 18.01 • Sensitivity (@ 2.83 V): 93 dB •...
  • Page 42 KAPPA 693C 265.5mm [10-15/32"] KAPPA 693C 240.3mm [9-15/32"] 220mm [8-21/32"] 147mm [5-25/32"]...
  • Page 43 52mm [2-1/16"] 35.7mm [1-13/32"] 44.4mm [1-3/4"] 24.7mm [31/32"] 35.7mm [1-13/32"]...
  • Page 44 -3dB 2WAY 3WAY 2WAY/3WAY...
  • Page 48 Specifications Thiele-Small Parameters • Type: 6” x 9” (168 mm x 240 mm) • BL (Tm): 6.118 Two-way Component Speaker System • DCR (ohms): 2.70 • Power Handling: 145 Wrms, 435 W peak • Mms (g): 27.65 • Sensitivity (@ 2.83 V): 94 dB •...
  • Page 49 KAPPA 693M 265.5mm [10-15/32"] 220mm [8-21/32"] 240.3mm [9-15/32"] -3 dB 0 dB 147mm [5-25/32"]...
  • Page 52 Specifications Thiele-Small Parameters • Type: 6”x 9” (168 mm x 240 mm) • BL (Tm): 6.499 Three-way Car Speaker • DCR (ohms): 2.70 • Power Handling: 120 Wrms, 360 W peak • Mms (g): 28.517 • Sensitivity (@ 2.83 V): 94 dB •...
  • Page 53 KAPPA 753T 52mm [2-1/16"] KAPPA 753T 35.7mm [1-13/32"]...
  • Page 57 Specifications Thiele-Small Parameters • Type: 3/4” (19 mm) Edge-Driven Silk • Crossover Point: 4.6 kHz Dome Tweeter • Power Handling: 50 Wrms, 150 W peak • Sensitivity (@ 2.83 V): 93 dB • Frequency Response: 2 kHz – 40 kHz •...
  • Page 58 Northridge, CA 91329 USA © 2021 HARMAN International Industries, Incorporated. All rights reserved. Infinity is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
