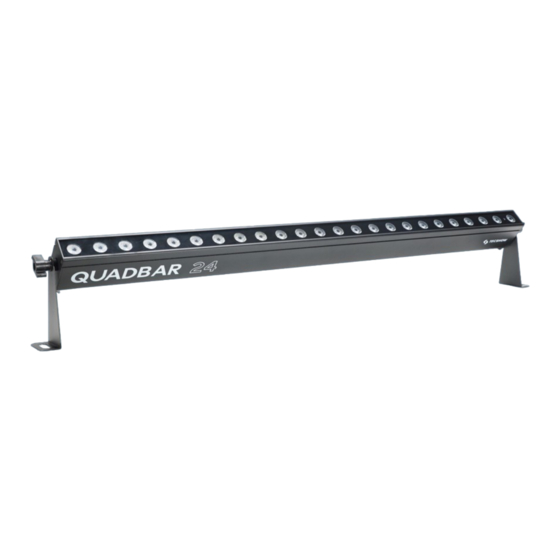

- Page 1 QUADBAR 24 24 X 2W LEDS 4-IN-1 VISUAL WASH BAR USER MANUAL | MANUAL DE USUARIO PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE POR FAVOR LEA LAS INSTRUCCIONES ANTES DE USAR P. 1 Versión Español | Tecshow NEBULA PAR 162 II...
- Page 2 7.Set Cu-1/2/3/4 Dimming curve select Pi.dI Nor/ Inv Pixel Direction FAIL OFF/HOLd DMX signal select Lock ON/OFF Lock screen FACT YES/NO Restore factory setting 8.InFo vx.x Version Life xxxh Life time P. 2 English Version | Tecshow - QuadBar 24...
-
Page 3: Dmx Channel
Color27(R255 G000 B025 W050) 196-202 Color28(R255 G000 B025 W025) 203-209 Color29(R255 G000 B025 W000) 210-216 Color30(R000 G000 B000 W255) 217-223 Color31(R075 G075 B000 W255) 224-230 Color32(R000 G000 B100 W255) 231-255 Color33(R255 G255 B255 W255) P. 3 English Version | Tecshow - QuadBar 24... - Page 4 Fade1 106-115 Fade2 116-125 Fade3 126-135 Fade4 136-145 Fade5 146-155 Fade6 156-165 Fade7 166-175 Jump9 176-185 Jump10 186-195 Jump11 196-205 Jump12 206-215 Fade8 216-225 Fade9 226-235 Fade10 236-245 Fade11 246-255 Sound P. 4 English Version | Tecshow - QuadBar 24...
- Page 5 Sound Mode:15 156-165 Sound Mode:16 166-175 Sound Mode:17 176-185 Sound Mode:18 186-195 Sound Mode:19 196-205 Sound Mode:20 206-215 Sound Mode:21 216-225 Sound Mode:22 226-235 Sound Mode:23 236-245 Sound Mode:24 246-255 Sound Mode:25 P. 5 English Version | Tecshow - QuadBar 24...
- Page 6 S-Type OPERATION AND WORK MODE DESCRIPTION 1. d--- 1. Working mode switch Press MODE or UP or DOWN to switch menu 2. SLAV 3. AUTO 4. Pro 5.CoLr 6.Soud 7.Set 8.InFo P. 6 English Version | Tecshow - QuadBar 24...
- Page 7 Press the SETUP button again to enter and UP/DOWN button to set static color or speed. Press the SETUP button again to enter and UP/DOWN button to set the speed of strobe. Pr.01 Built-in Static color Pr.01 Co.00-39(01) FS.00-99 Pr.02-23 Built-in program Pr.02-24 Sp.01-FL(81) FS.00-99 P. 7 English Version | Tecshow - QuadBar 24...
- Page 8 Pi.DI FAIL Lock FACT 1. Dimming curve setting There are four available dimming curves. Please press the “SETUP” button to enter and select by the “UP” or “DOWN” button. As follows: P. 8 English Version | Tecshow - QuadBar 24...
- Page 9 Console DMX signal clear, Press SETUP to enter, and press UP or DOWN to select, As follow: (When DMX signal connection is failed, the fixture is off) FAIL (When DMX signal connection is failed, the HOLd fixture will keep current state) P. 9 English Version | Tecshow - QuadBar 24...
- Page 10 The product support RDM protocol, RDM is a protocol that supports two-way traffic in standard DMX512 proto- cols，monitor light run by RDM control Equipment, configuration, and status, such as change light DMX address or mode and so on. Each light compatible RDM recognition by unique UID code. P. 10 English Version | Tecshow - QuadBar 24...
- Page 11 3. If the environment temperature is not in the using range, please reduce the using time of the full power to prevent products damaging because of overheating. 4. Please don’t take apart the light when it is in charging. P. 11 English Version | Tecshow - QuadBar 24...
- Page 12 P. 12 Versión Español | Tecshow NEBULA PAR 162 II...
