- Page 1 HALO 715 XL 7PCS 15W LED ZOOM WASH LIGHT USER MANUAL | MANUAL DE USUARIO PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE POR FAVOR LEA LAS INSTRUCCIONES ANTES DE USAR P. 1 Versión Español | Tecshow COSMO MAX...
-
Page 2: Specifications

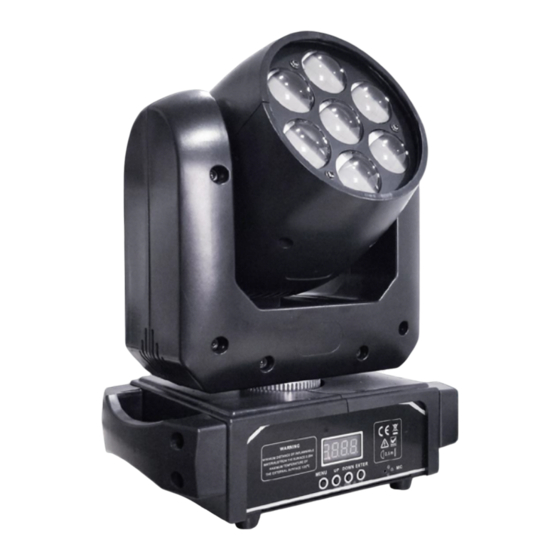

7PCS 15W LED ZOOM WASH LIGHT • DMX channels: 14/16 • Operation modes: DMX512, Master/Slave, Auto, HALO 715 XL is a compact and versatile moving head Audiorhythmic that has 7 15W 4-in-1 LEDs with a zoom function that • 8 preset programs allows you to vary its beam angle between 6º... - Page 3 (decoration etc.) safety cable. Always use and install the supplied safety cable as a safe cable as safety measure to prevent accident damage and /or injury in the event the clamp fails. P. 3 English Version | Tecshow HALO 715 XL...
-
Page 4: Mounting Points
XLR output of your controller and the other side to the screened cable with XLR input and output connectors. male 3-pin XLR input of the moving head. Please refer to the diagram below. You can chain multiple Moving head together through P. 4 English Version | Tecshow HALO 715 XL... -
Page 5: Dmx-512 Connection With Dmx Terminator
XLR socket of the last fixture DMX terminator. This helps in preventing corruption of in the chain. Please see illustrations below. the digital control signal by electrical noise. P. 5 English Version | Tecshow HALO 715 XL... -
Page 6: Display Menu
7. DISPLAY MENU Addr 001-512 DMX Address 16CH CHnd DMX Channel Mode 14CH Auto Auto Mode Soun Sound Control Mode SLnd DMX Mode Slave Mode SH 0 Effect 0 (Recommend) SH 1 Effect 1 SHnd SH 2 Effect 2 SH 3 Effect 3 SEnS 0-99... -
Page 7: Dmx Channels
8. DMX CHANNELS 16 CHANNEL DEFINITION TABLE DMX VALUE FUNCTION CH 1 000-255 CH 2 000-255 Pan Fine CH 3 000-255 Tilt CH 4 000-255 Tilt Fine CH 5 000-255 P/T Speed CH 6 000-255 Dimmer CH 7 000-255 Strobe CH 8 250-255 Red Dimmer... - Page 8 a m p r o w e b . c o m /a m p ro g ro up /am pro g ro up...
