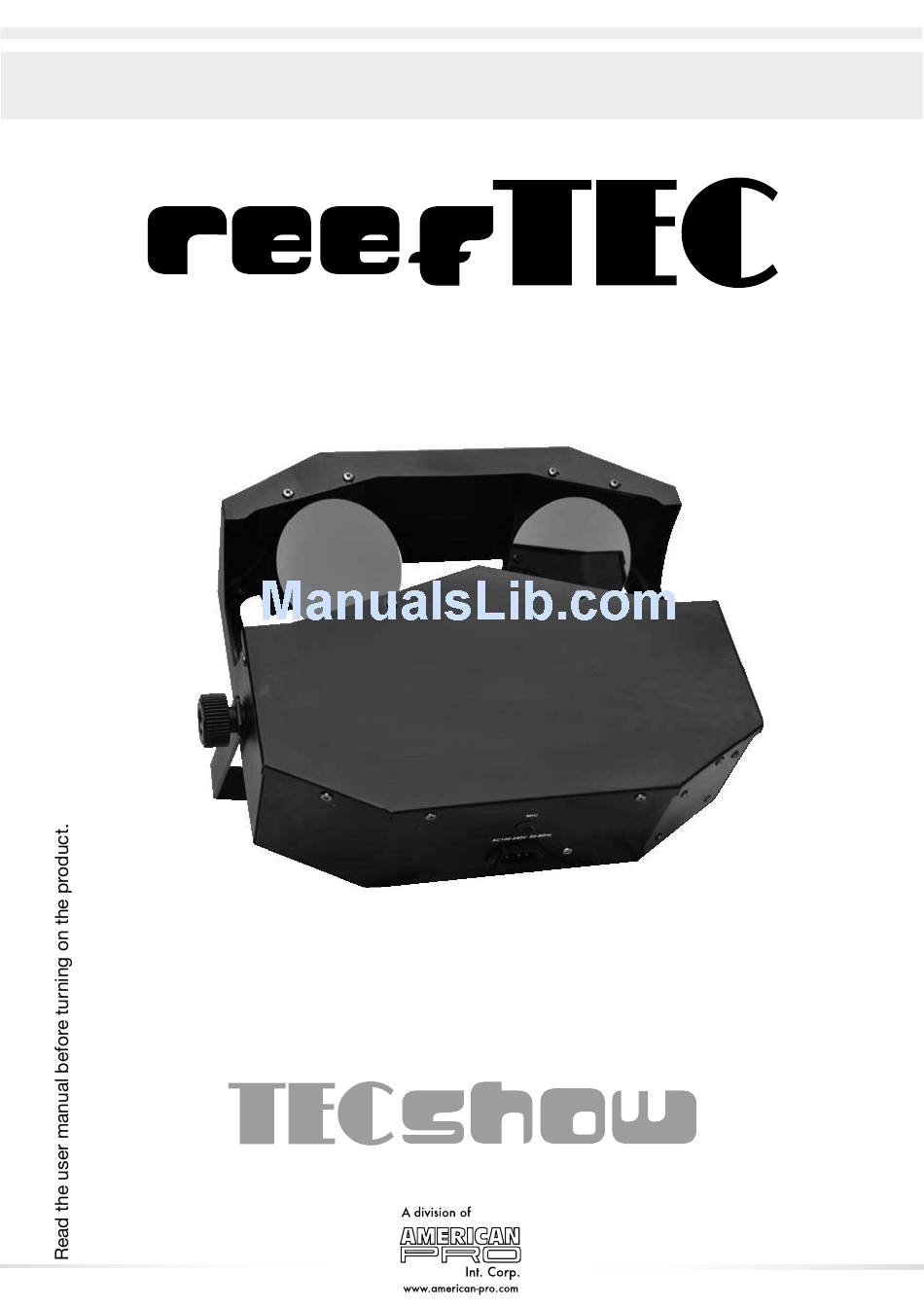

- Page 1 USER MANUAL...
- Page 2 INTRODUCTION Thank you for using our Products .This lighting has got the nice sculpt , efficient , save electricity and durable . It is suitable for disco, stage , building etc . Direct input of DMX512 signal to unit to allow it be controlled by any DMX512 controller. Powerful internal programs allow customers to program freely to any different lighting project requirements for installation or shows.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read these instructions carefully , which includes important information about the installation, usage and maintenance of this product. Important! Every person involved with the installation, operation and maintenance of this device has to be qualified and follow the instructions of this manual . Manufacturer will not with responsibility for those operation not according to this Instruction. -
Page 4: Installation
INSTALLATION W A R N I N G ! For safe operation, the fixture must be grounded (earthed). Power supply Before plugging your unit in, be sure the voltage and frequency in your area must match the required voltage for your fixture. you should be sure your unit voltages matches the wall outlet voltage before attempting to operate your fixture. -
Page 5: Dip Switch Function
Conductor 3-Pin Female(Out) 5-Pin Male(In) Signal Ground Pin 1 Pin 1 Signal - Pin 2 Pin 2 Signal + Pin 3 Pin 3 Not used Pin 4: Do not use Not used Pin 5: Do not use In DMX mode , insert a termination plug in the output of the last fixture on the link could reduce the reflection and interference. - Page 6 Set starting address This DMX mode enables the use of a universal DMX controller device. Each fixture requires a "start address" from 1 to 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that uses 3 DMX channels and was addressed to start on DMX channel 100, would read data from channels: 100, 101, 102.
-
Page 7: Dmx Address Quick Reference Chart
DMX ADDRESS QUICK REFERENCE CHART Dip Switch Position 0=OFF #9 0 0 0 1=ON #8 0 0 0 #7 0 0 1 X=OFF or ON #6 0 1 0 #1 #2 #3 #4 #5 0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480 1 0 0 0 0 1 33 65 97 129 161 193 225 257 289 321 353 385 417 449 481 0 1 0 0 0... -
Page 8: Technical Specifications
DMX CHANNEL VALUE AND FUNCTION Channel value Function 10~255 Auto program (slow to fast) 0~10 Motor 1 don,t move 11~127 Motor 1 Clockwise rotate 128~255 Motor 1 Counter rotate 0~10 Motor 2 don,t move 11~127 Motor 2 Clockwise rotate 128~255 Motor 2 Counter rotate No function 10~255... - Page 9 TRUSTING RESULTS www.american-pro.com develops & improves products constantly. AMERICAN PRO For this reason, the specifications and consigned information in the present user manual can be modified without notice.
