Summary of Contents for TECshow LZ1

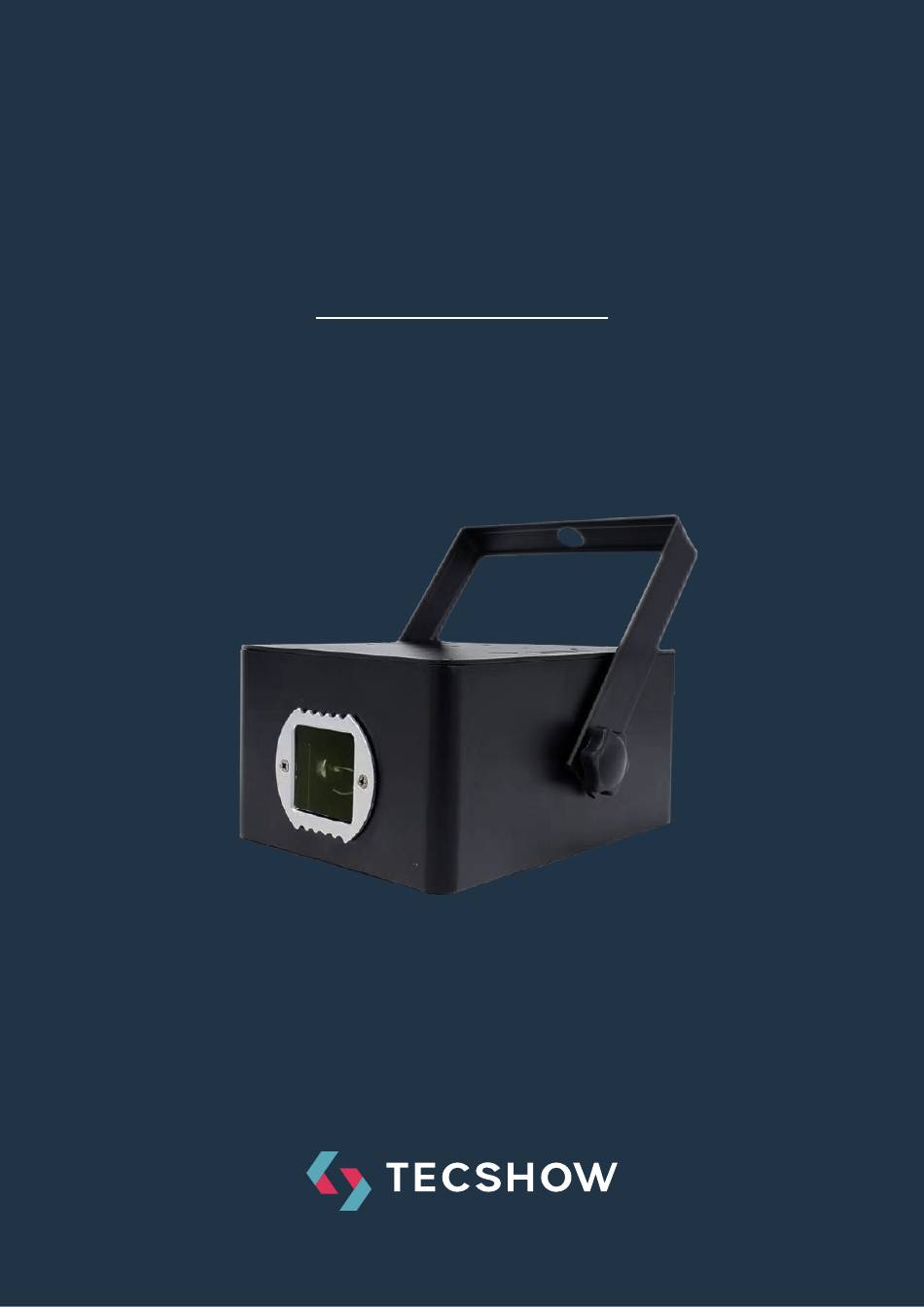

- Page 1 1W ANIMATION FULL COLOR LASER USER MANUAL PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE P. 1 Versión Español | Tecshow COSMO MAX...
-
Page 2: Specifications

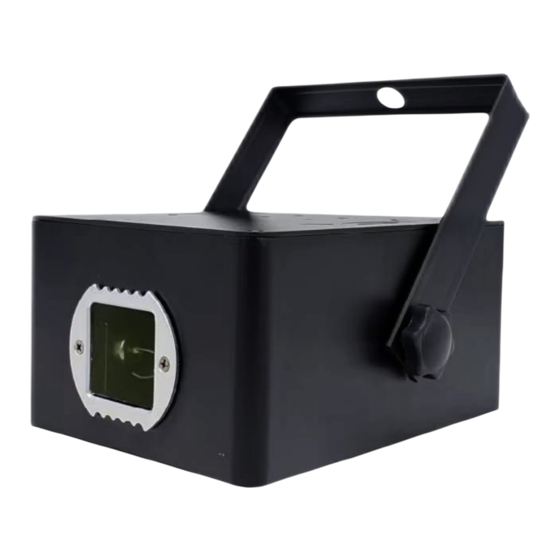

LZ1 is a compact device featuring a 200mW red laser, a 200mW green laser and a 600mW blue laser. Designed for small to medium scale applications, LZ1 is ideal for all high visual impact applications. Specifications Source & Optics •... -
Page 3: Safety Instructions
Be sure that no ventilation slots are blocked. CAUTION! DISCONNECT DEVICE. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. P. 3 English Version | Tecshow LZ1... - Page 4 Speed for AUTO mode, slow to fast Sound 0: Sound activated for geometric and animation figure SOUND 0 Sound 1: Sound activated for geometric figure SOUND 2 Sound 2:Sound activated for animiation figure SENSE 0-9 Sense of Sound activated P. 4 English Version | Tecshow LZ1...
-
Page 5: Dmx Channel Mode
Class of picture is controlled by CH4 0-1 No Function Auto change, Speed control should be matched with CH7, AUTO CHANGE 0-255 Color control should be matcheed with CH2, CH=0 means factory choose color P. 5 English Version | Tecshow LZ1... - Page 6 No fade 2-63 Manual fade 1 64-127 Manual fade 2 PICTURE CH16 28-153 Auto fade (increase) FADE 154-179 Auto fade (decrease) 180-205 Auto fade (increase to decrease) 206-255 Auto fade (Decrease to increase) P. 6 English Version | Tecshow LZ1...
- Page 7 a m p r o w e b . c o m /a m p ro g ro up /am pro g ro up...
